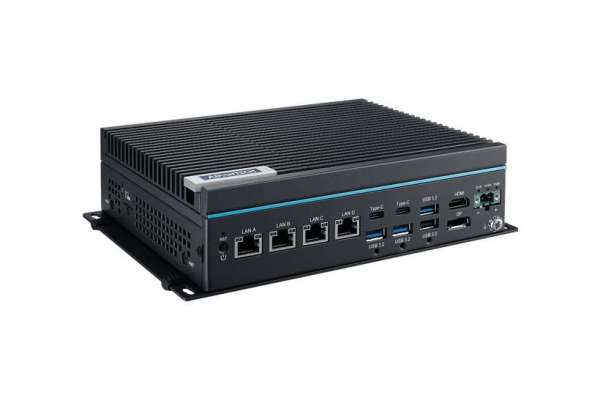

Modular Embedded Box PC Advantech UNO-2484V3

Intel Core Ultra (Arrow Lake) 5 & 7 Processor PC with 4 x Ethernet, 6 x USB, 4 x M.2, HDMI 1.4, DP++ Advantech UNO-2484V3

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
UNO-2484V3-U25N1A	Компактний промисловий комп'ютер Advantech UNO-2484V, Core Ultra 5 225U 1.5GHz, 4xGbE, 6xUSB, 4xCOM	112 746,0	Доступно
UNO-2484V3-U27N1A	Компактний промисловий комп'ютер Advantech UNO-2484V, Core Ultra 7 255U 1.7GHz, 4xGbE, 6xUSB, 4xCOM	126 988,0

Advantech’s UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. The UNO-2484V3 features powerful computing capacity, optimized I/O port and expansion options supporting high speed and low latency wire/ wireless connectivity and NVME storage for IoT edge data transmission. 4K Ultra HD display ports provide high resolution and with an optional second expansion stack, users can have even more I/O options with Advantech’s iDoor technology.

• Intel Core Ultra (Arrow Lake) 5 & 7 Processor with DDR5 memory Slot*2 reserved

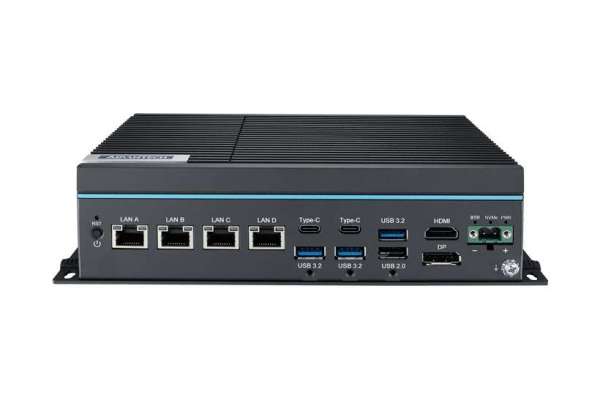

• 4 x Ethernet, 6 x USB, 4 x M.2, HDMI 1.4, DP++, 4 x RS232/422/485

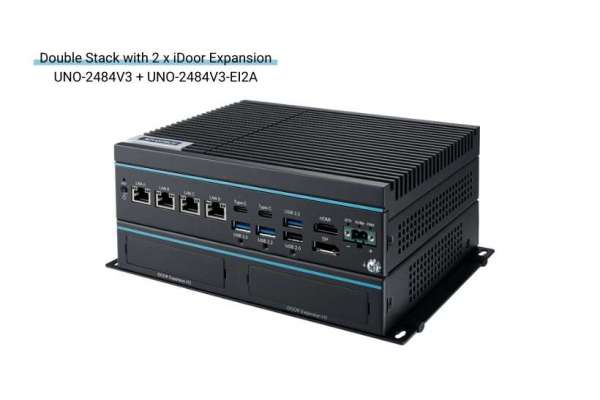

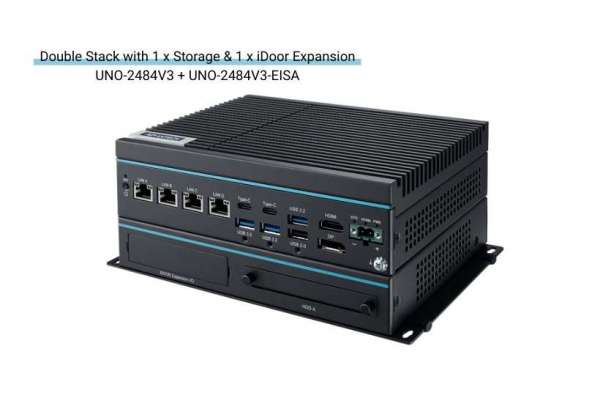

• Optional 2nd extension stack with up to 2 x iDoor or 2 x HDD support for domain applications
• Compact fanless design
• External SIM slot and easy assemble RAM design for better user experience
• NVME support on M.2 M key slot with high data-transmission efficiency

Additional information

General
Certification	CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H)	200 x 140 x 55 mm (7.8" x 5.6" x 2.1") for single stack 200 x 140 x 90 mm (7.8" x 5.6" x 3.54") for double deck
Form Factor	Regular size with stackable design
Enclosure	Aluminum housing
Mounting	Stand, wall, VESA (Optional), DIN-rail (Optional)
Weight (Net)	Single stack: 1.4kg (3.09lbs)
Power Requirement	10 - 36 VDC
Power Consumption	31W (Typical), 97W (Max), 109W (with 2nd stack)
OS Support	Win11 LTSC, Ubuntu 24.04
System Hardware
BIOS	AMI 256 Mbit SPI
Watchdog Timer	Programmable 255 levels timer interval, from 1 to 255 sec
Hardware Security	TPM2.0
Processor	Intel Core Ultra (Arrow Lake) Ultra 5 225U 12 Cores 1.5 GHz (P-core Base Frequency) Ultra 7 255U 12 Cores 2 GHz (P-core Base Frequency)
Memory	2 x Optional DDR5 5600 MHz, per channel support up to 32GB (thermal pad for 1st RAM already included into BOM; and refer to optional accessories list of thermal pad P/N for 2nd RAM add-on)
LED Indicators	LEDs for Power, NVME, RTC battery low
Graphics Engine	Intel® Iris® Xe Graphics
Ethernet	LAN A: Intel i219-LM 1Gb/s, IEEE 802.3, 802.1as/1588 LAN B-D: Intel® i226-LM 2.5Gb/s, IEEE 802.3, 802.1as/1588

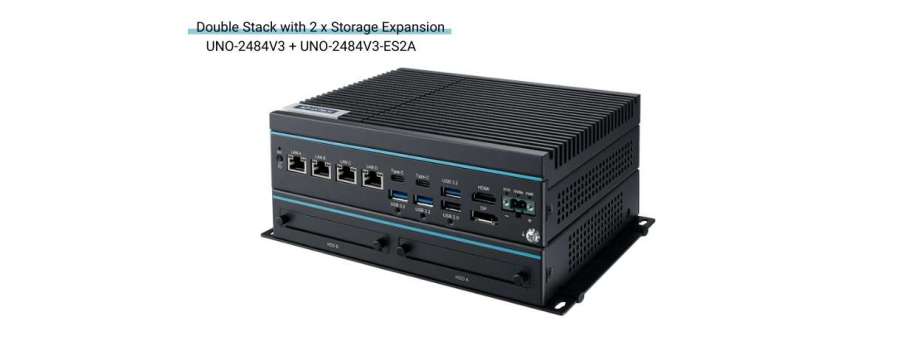

Expansion/Storage	1 x M.2 B key (3052) (PCIEx1/USB 3.2/USB2.0) 1 x M.2 E key (2230) (PCIEx2/USB2.0) 2 x M.2 M key (2280) (PCIEx4) *2nd stack: 2 x 2.5" SSD (via UNO-2484V3-ES2A_support RAID 0/1; refer to User Manual for more details)
I/O Interfaces

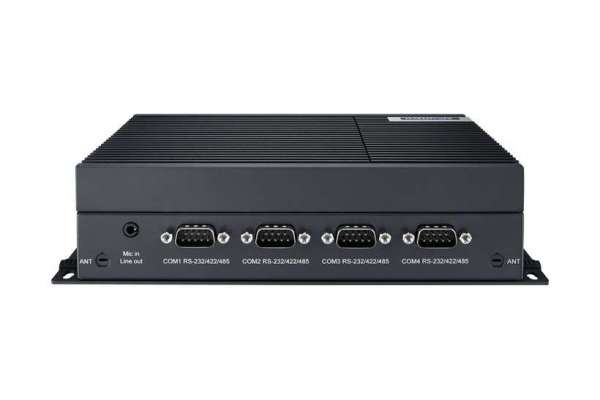

Serial Ports	4 x RS 232/422/485, 50kbps – 115.2 kbps speed
LAN Ports	1 x RJ45, 10/100/1000 Mbps 3 x RJ45, 10/100/1000/2500 Mbps
USB Ports	3 x USB 3.2 Gen2, 1 x USB2.0
Display	1x HDMI 1. 4 (3840*2160@30Hz)
USB Type-C	2 x USB Type C (1.5A), supports DP 1.4a & DP ALT mode (3840x2160@60Hz)
Power Connector	1 x 2 pins, terminal block
Environment
Operating Temperature	-20 ~ 60°C (-4 ~ 140°F) with 0.7 m/s airflow
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Relative Humidity	Operating, 95% RH @ 40°C, Non-Condensing; Non-Operating, 95% RH @ 60°C, Non-Condensing
Shock Protection	Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection	Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1hr/axis
Ingress Protection	IP20
