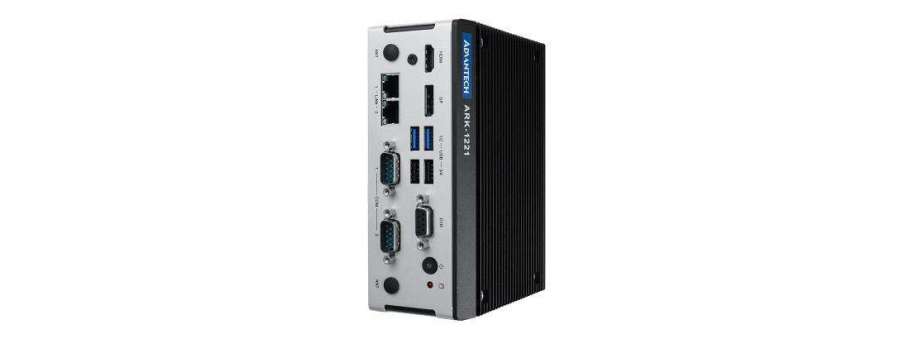

Fanless Box PC with HDMI and DP/Dual LAN/Dual COM DIN-Rail Advantech ARK-1221L

Manufacturer: Advantech
Facebook Twitter Linkedin Mail
  • Intel Atom x6413E and Celeron J6412 Quad Core& Celeron N6210 Dual Core SoC

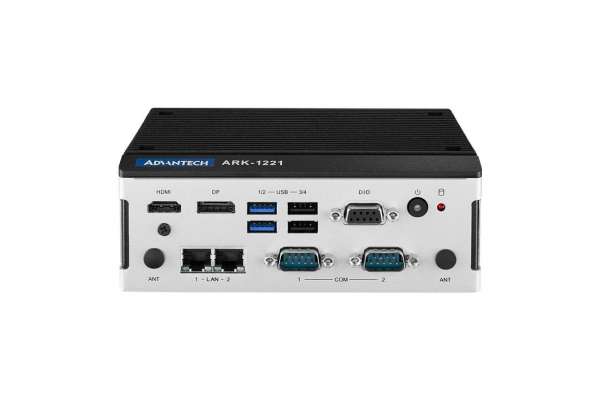

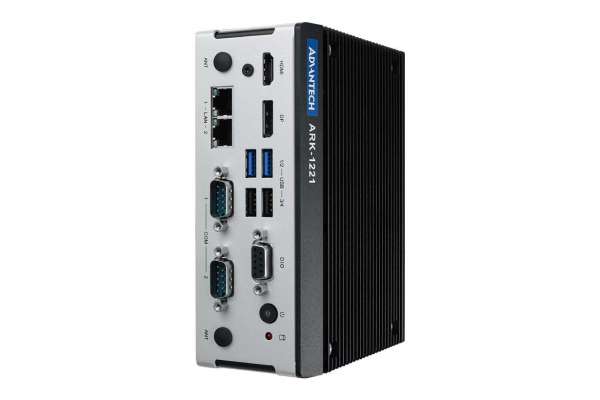

  • DIN-Rail system with essential I/O ports on front-side bezel
  • 2 x Intel GbE and 2 x RS-232/422/485
  • Dual independent displays with one 4K HDMI and one 4K DP
  • 1 x M.2 2280 B key with nano SIM holder and 1 x M.2 2230 E key
  • 2 x USB 3.2 and 2 x USB 2.0
  • 1 x full-size mPCIe (share with mSATA) and 1 x 2.5” SATA storage device
  • 12V ~ 28V wide range power input
  • -40 ~ 60 °C and -20 ~ 60 °C extended operating temperature
  • Support Windows 10/11 IoT Enterprise LTSC, Ubuntu 20.04

Additional information

Processor System
CPU
  • Intel Atom x6413E Quad Core SoC (ARK-1221L-S5A1)
  • Intel Celeron N6210 Dual Core SoC (ARK-1221L-S2A1)
  • Intel Celeron J6412 Quad Core SoC (ARK-1221L-U0A1)
Frequency
  • 1.50 GHz, turbo burst up to 3.00 GHz (ARK-1221L-S5A1)
  • 1.20 GHz, turbo burst up to 2.60 GHz (ARK-1221L-S2A1)
  • 2.0 GHz, turbo burst up to 2.60 GHz (ARK-1221L-U0A1)
Core Numbe
  • 4 (ARK-1221L-S5A1)
  • 2 (ARK-1221L-S2A1)
  • 4 (ARK-1221L-U0A1)
BIOS AMI EFI 256 Mbit

Memory
Technology DDR4 3200 MHz
Max capacity 32 GB
Socket 2 x 260-pin SO-DIMM, 2 x 16 GB or 1 x 32 GB memory

Graphics
Chipset Intel® UHD Graphics for 10th Gen Intel® Processors
HDMI Up to 4096 x 2160 @ 60 Hz
DP Up to 4096 x 2160 @ 60 Hz
Dual Display HDMI + DP

Ethernet
LAN1 Intel i225-LM, 2.5GbE, support Wake On LAN
LAN2 Intel i225-LM, 2.5GbE, support Wake On LAN

Audio
Interface Realtek ALC888S, High Defination Audio, Mic-in, Line-out

I/O Interface
Seriel Ports 2 x RS-232/422/485 (default RS-232) with auto flow control
USB Ports 2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle
GPIO 8-bit Programmable DIO
Optional CANbus 1 x CANBus 2.0 (DB9 connector)

Expansion
Mini PCIe 1 x Full-size mPCIe
M.2 1 x M2. 2230 E key and 1 x M.2 2280 B key with nano SIM holder #1

Storage
SSD/HDD 1 x 2.5" SATAIII Drive bay (compatible with 9.5mm height)
mSATA 1 x Full-size mSATA (*share with mPCIe slot)

Other
WatchDog Timer 255 levels timer interval, setup by software
TPM TPM 2.0 (project support by AMO-I029)

Software Support
Microsoft Windows Windows 10/11 Enterprise
Linux Ubuntu 20.04

Power Requirement
Power Type ATX/AT
Power Input Voltage 12 ~ 28 VDC
Power Adaptor AC to DC, 60W (Optional)

Power Consumption
Typical
  • 9.6W (OS idle mode) (ARK-1221L-S5A1)
  • 12.66W (OS idle mode) (ARK-1221L-S2A1)
  • 12.97W (OS idle mode) (ARK-1221L-U0A1)
Max
  • 18.96W (Full loading) (ARK-1221L-S5A1)
  • 21.89W (Full loading) (ARK-1221L-S2A1)
  • 26.46W (Full loading) (ARK-1221L-U0A1)

Mechanical
Construction Aluminum housing
Mounting DIN-rail/Wall Mount
Dimensions (W x H x D) 60 x 158 x 114 mm (2.34" x 6.22" x 4.49")
Weight 1.05 kg (2.31lb)

Environment
Operating Temperature
  • With extended temp. peripherals: -40 ~ 60 °C (-40 ~ 140 °F) with 0.7 m/s air flow (ARK-1221L-S5A1)
  • -20 to 60 °C (-4 ~ 140 °F) with 0.7 m/s air flow (ARK-1221L-S2A1/ (ARK-1221L-U0A1)
Storage Temperature -40 ~ 85 °C (-40 ~ 185°F)
Relative Humidity Relative Humidity
Vibration during Operation With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount)
Shock during Operation With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount)
EMC CE/FCC Class B, CCC, BSMI, UKCA
Safety UL, CB, CCC and BSMI, UKCA
