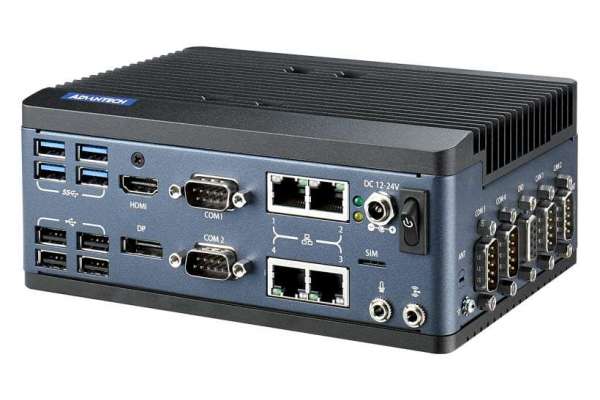

Fanless Embedded System EPC-C301

Intel® 8th. Gen. Core i7/i5 Processor Fanless Embedded System EPC-C301

Industrial Computer >> Embedded computers and fanless BoxPCs

Manufacturer: Advantech Co., Ltd.

Embedded Single Board Computers:

  • Intel 8th. Gen. Core Processor with Quad/Dual Cores (i7/i5), TDP 15W

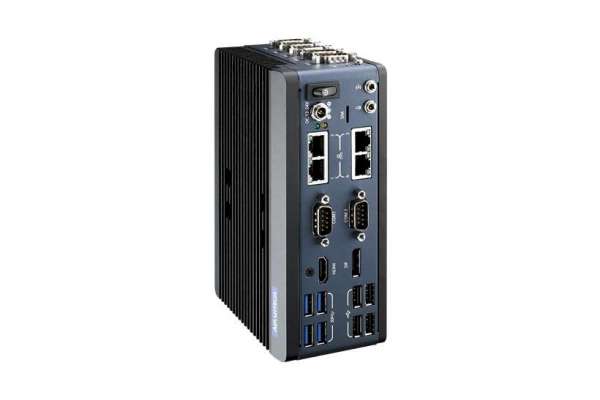

  • Semi-Industry Fanless slim system, Din Rail or Wall mount design
  • HDMI + DP* (Support vai MIO) dual display
  • 4 GbE, 4 USB3.1, 4 USB 2.0, CAN Bus, M.2 M-Key 2280 supports NVMe, M.2 E-key 2230, M.2 B-key, 1 full size of mini PCIe, DC-in 12V
  • -20 ~ 60 degree extend temperature operating
  • iManager & SW APIs, WISE-PaaS/DeviceOn

Advantech Releases Fanless EPC-C301 for Machine Vision Applications

Additional information

Part Number EPC-C301EVK-S7A1 EPC-C301EVK-S6A1 EPC-C301C7-S7A1 EPC-C301C5-S6A1

Processor


CPU Intel® Core™ i7-8665UE Intel® Core™ i5-8365UE Intel® Core™ i7-8665UE Intel® Core™ i5-8365UE
Max Turbo Frequency 4.4 GHz 4.1 GHz 4.4 GHz 4.1 GHz
Frequency 1.7 GHz 1.6 GHz 1.7 GHz 1.6 GHz
Thread 8 8 8 8
Core Number 4 4 4 4
LLC 8MB 6MB 8MB

6MB
CPU TDP 15W 15W 15W 15W
BIOS AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit

Memory


Technology DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM
Max. Capacity Max. up to 32 GB (16 GB per SODIMM) Max. up to 32 GB (16 GB per SODIMM) Max. up to 32 GB (16 GB per SODIMM) Max. up to 32 GB (16 GB per SODIMM)
Socket 2 x 260 Pin DDR4 SO-DIMM 2 x 260 Pin DDR4 SO-DIMM 2 x 260 Pin DDR4 SO-DIMM 2 x 260 Pin DDR4 SO-DIMM

Display


Controller Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620
Graphic Engine DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC
DP/HDMI DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)

Ethernet


Speed 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps

Audio


Chipset Realtek ALC888S, High Definition Audio (HD)

Realtek ALC888S, High Definition Audio (HD)

 Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD)

Expansion


M.2 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)
Mini PCIe 1 x Full size Mini-PCIe 1 x Full size Mini-PCIe 1 x Full size Mini-PCIe 1 x Full size Mini-PCIe

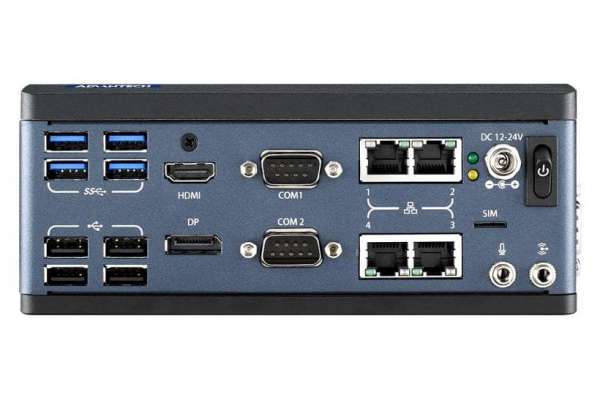

Front I/O Interface


HDMI 1 1 1 1
DP 1 1 1 1
USB 4x USB 3.0, 4x USB 2.0 4x USB 3.0, 4x USB 2.0 4x USB 3.0, 4x USB 2.0 4x USB 3.0, 4x USB 2.0
RJ-45 4 4 4 4
COM 2x RS-232/422/485 2x RS-232/422/485

2x RS-232/422/485

 2x RS-232/422/485
Audio 2 (Line-Out, Mic-In) 2 (Line-Out, Mic-In) 2 (Line-Out, Mic-In)

2 (Line-Out, Mic-In)
DC Jack 1 1 1 1
SIM Card 1x Nano SIM 1x Nano SIM 1x Nano SIM

1x Nano SIM
Power Button 1 1 1 1

Miscellaneous


LED Indicators 2 (Power LED, HDD LED) 2 (Power LED, HDD LED)

2 (Power LED, HDD LED)

 2 (Power LED, HDD LED)

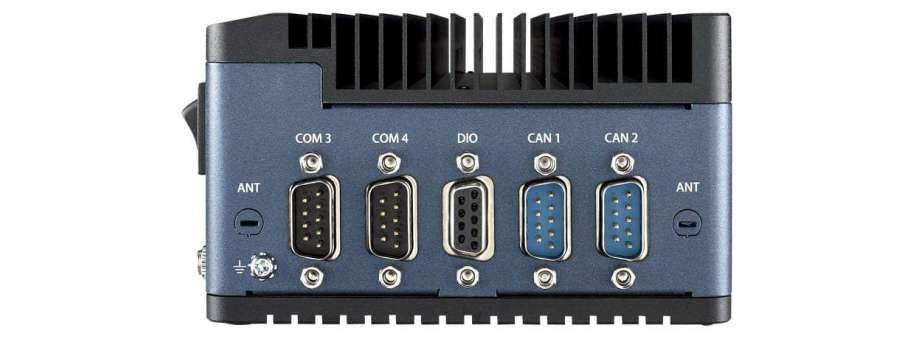

Side I/O Interface


COM 2 (1 x RS-232/422/485, 1 x RS-232) 2 (1 x RS-232/422/485, 1 x RS-232) 2 (1 x RS-232/422/485, 1 x RS-232)

2 (1 x RS-232/422/485, 1 x RS-232)
DIO 1 1 1 1
CAN Bus 2 (Support CAN 2.0B at 1Mb/s) 2 (Support CAN 2.0B at 1Mb/s) 2 (Support CAN 2.0B at 1Mb/s) 2 (Support CAN 2.0B at 1Mb/s)
Antenna 4 4 4 4

Power


Input Voltage

12 VDC

 12 VDC 12 VDC 12 VDC
Connector Type Lockable DC Jack Lockable DC Jack Lockable DC Jack Lockable DC Jack

Environment


Operational Temperature With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330
Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity 40 °C @ 95%, Non-Condensing 40 °C @ 95%, Non-Condensing 40 °C @ 95%, Non-Condensing 40 °C @ 95%, Non-Condensing

Physical


Mounting Desk/ Wall Mount/ DIN Rail Desk/ Wall Mount/ DIN Rail Desk/ Wall Mount/ DIN Rail Desk/ Wall Mount/ DIN Rail
Dimensions (W x H x D) 170 x 118 x 70 mm 170 x 118 x 70 mm 170 x 118 x 70 mm 170 x 118 x 70 mm

Regulation


EMC CE/FCC Class B, CCC, BSMI

CE/FCC Class B, CCC, BSMI

 CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI
Safety CB, UL, CCC, BSMI CB, UL, CCC, BSMI CB, UL, CCC, BSMI

CB, UL, CCC, BSMI
