High performance system ECS-9200

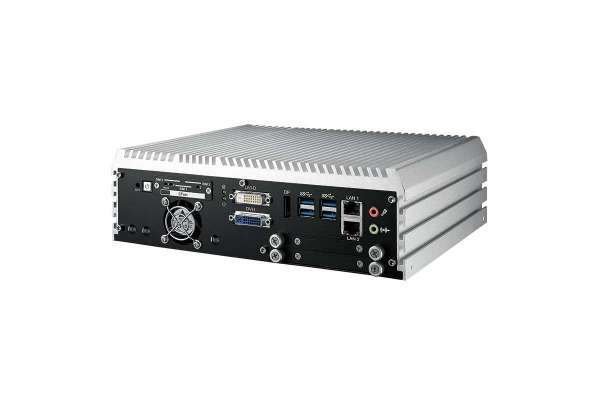

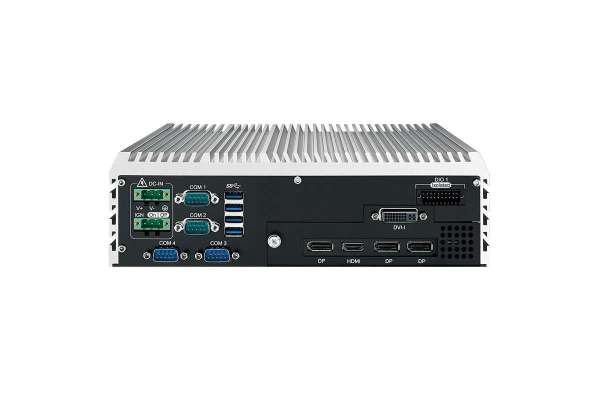

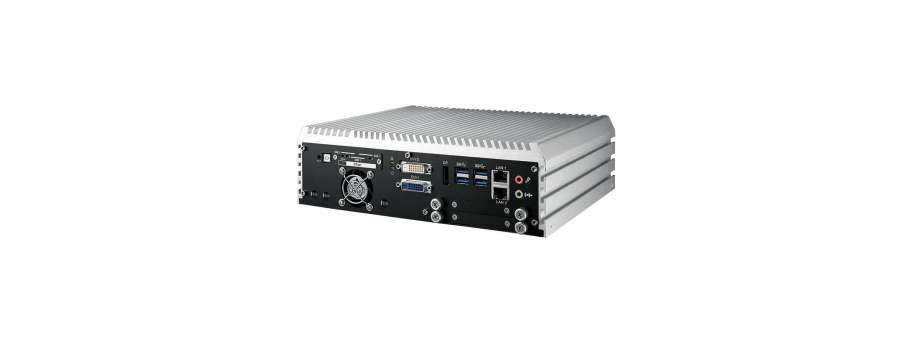

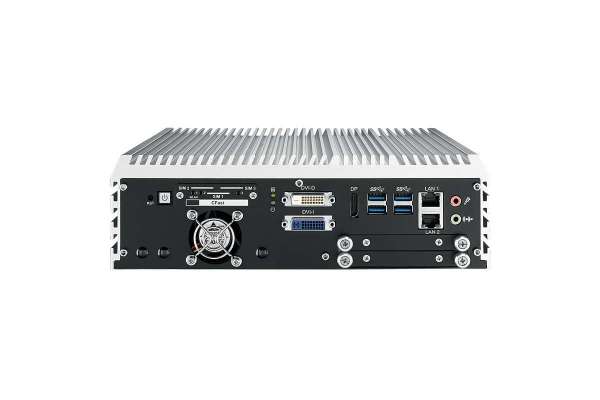

Rugged embedded Workstation Vecow ECS-9200 Series Intel® Xeon®/ Core™ i7 (Skylake-S) with NVIDIA GeForce® GTX 950 graphics engine

Industrial Computer >> Embedded computers and fanless BoxPCs

Manufacturer: Vecow

7th Generation Intel® Xeon®/Core™ i7 Processor (Kaby Lake) Embedded System with Intel® C236 & NVIDIA GeForce® GTX 950, NVIDIA Pascal™ architecture, 2 GigE LAN, 2 Front-access SSD Tray, 8 USB 3.0, M.2 Socket, M2DOM, 3 SIM, 16 GPIO, High Performance, Independent Graphics, EN50155, EN50121-3-2

Features

  • LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7 Processor (Kaby Lake) with C236 chipset
  • NVIDIA GeForce® GTX 950 Graphics engine supports NVIDIA Pascal™ GPU architecture
  • Multiple DVI-D, DVI-I, DisplayPort and HDMI display interfaces, up to 7 independent HD displays
  • 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
  • 2 Independent GigE LAN, iAMT 11.0 supported
  • 3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
  • Storage : 2 2.5" SSD Tray, 1 CFast, 1 M2DOM, 2 SATA III
  • Expansion : 1 M.2 Socket, 3 Mini PCIe/mSATA
  • 8 External USB 3.0, 4 COM
  • 16 GPIO, 3 Mini PCIe/mSATA
  • 10V to 36V DC power input with 80V Surge Protection
  • Configurable Ignition Power Control
  • -40°C to 60°C Operating Temperature

Powered by Intel® Xeon®/Core™ i7 (Kaby Lake-S) processor running with NVIDIA GeForce® GTX 950 graphics engine, supporting advanced CUDA applications & up to 7 independent HD displays, -40°C to 60°C operating temperature, all-in-one integrated features, multiple I/O connection, outstanding system performance, excellent mobile availability, smart manageability, wide range power input, surge protection, ignition power control, isolated DIO, EN50155 and industrial-grade reliability, Vecow ECS-9200/9100 GTX950 Series Embedded Workstation System is your great solution for Machine Vision, Embedded Workstation, Traffic Vision, Mobile DVR/NVR, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0/IIoT applications.

Additional information

Specifications

System
Processor

Quad Core Intel® Xeon®/Core™ i7 Processor (Kaby Lake-S/Skylake-S)

Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB

- 8 USB 3.0 (External)

- 1 USB 2.0 (Internal)
Isolated DIO

16 GPIO

LED Power, HDD, Wireless
SIM Card  3 SIM Card Socket (External)
Expansion
Mini PCIe

3 Full-size for PCIe/USB/External SIM Card/mSATA

M.2 1 M.2 Socket (Key ID : M)
Graphics
Graphics Processor

- Intel® HD Graphics 630/530

- NVIDIA GeForce® GTX 950

Interface

8 Display interfaces :

- 1 DVI-D : Up to 1920 x1200 @ 60Hz

- 2 DVI-I : Up to 1920 x 1200 @ 60Hz

- 1 DisplayPort : Up to 4096 x 2304 @ 60Hz

- 3 DisplayPort : Up to 5120 x 3200 @ 60Hz

- 1 HDMI : Up to 5120 x 3200 @ 60Hz

Storage
SATA 2 SATA III support S/W RAID 0, 1
mSATA

3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device

- 1 CFast Socket, Push-in/Push-out Ejector

- 2 Front-access 2.5" SSD/HDD Tray

Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H) 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight 4.5 kg (9.92 lb)
Mounting

- Wallmount by mounting bracket

- DIN Rail Mount (Optional)

- 2U Rackmount (Optional)

Environment
Operating Temperature

35W TDP CPU :

- Core™ i7 : -40°C to 60°C (-40°F to 140°F)

- Xeon® E3-1268L v5 : -40°C to 60°C (-40°F to 140°F)

65W TDP CPU :

Core™ i7 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock

- IEC 60068-2-27

- SSD : 50G @ wallmount, Half-sine, 11ms

Vibration

- IEC 60068-2-64

- SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2
