Вбудована система EPC-C301

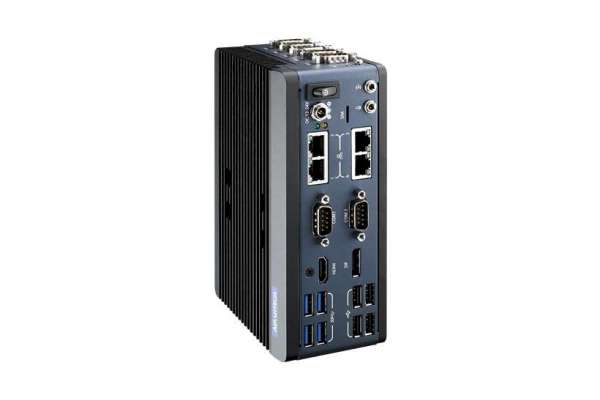

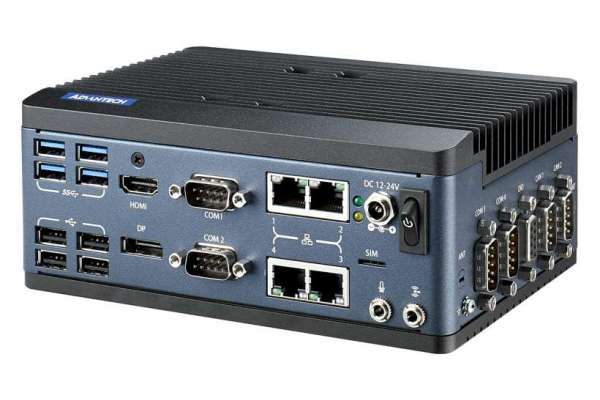

Безвентиляторна вбудована комп'ютерна система EPC-C301 Advantech на процесорі Intel® Core i7/i5 8 покоління

Промислові комп'ютери >> Вбудовувані компактні комп'ютери

 Вартість та наявність

Виробник: Advantech

Вбудований одноплатний комп'ютер:

  • Процесор Intel 8 покоління з чотирма / двома ядрами (i7 / i5), TDP 15 Вт
  • Напівпромислова безвентиляторна тонка система, кріплення на Din-рейку чи на стіну
  • Підтримує HDMI + DP* ( Vai MIO)
  • 4 GbE, 4 USB3.1, 4 USB 2.0, шина CAN, M.2 M-Key 2280 підтримує NVMe, M.2 E-key 2230, M.2 B-key, 1 повнорозмірний міні-PCIe, DC-in 12V
  • Робоча температура -20 ~ 60° С
  • iManager & SW API, WISE-PaaS / DeviceOn

Advantech випускає безвентиляторний EPC-C301 для систем машинного зору

Вартість та наявність

Код товару Опис товару Ціна з ПДВ Наявність
EPC-C301EVK-S7A1 Intel Core i7-8665UE 1.7GHz, Intel EVK system  97 914,9
EPC-C301EVK-S6A1 Intel Core i5-8365UE 1.6GHz, Intel EVK system  80 614,7
EPC-C301C7-S7A1 Intel Core i7-8665UE 1.7GHz, Embedded system  74 950,6
EPC-C301C5-S6A1 Intel Core i5-8365UE 1.6GHz, Embedded system  60 929,7

Додаткова інформація

Part Number EPC-C301EVK-S7A1 EPC-C301EVK-S6A1 EPC-C301C7-S7A1 EPC-C301C5-S6A1

Processor


CPU Intel® Core™ i7-8665UE Intel® Core™ i5-8365UE Intel® Core™ i7-8665UE Intel® Core™ i5-8365UE
Max Turbo Frequency 4.4 GHz 4.1 GHz 4.4 GHz 4.1 GHz
Frequency 1.7 GHz 1.6 GHz 1.7 GHz 1.6 GHz
Thread 8 8 8 8
Core Number 4 4 4 4
LLC 8MB 6MB 8MB

6MB

CPU TDP 15W 15W 15W 15W
BIOS AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit AMI UEFI 256 Mbit

Memory


Technology DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM DDR4 2400MHz SO-DIMM
Max. Capacity Max. up to 32 GB (16 GB per SODIMM) Max. up to 32 GB (16 GB per SODIMM) Max. up to 32 GB (16 GB per SODIMM) Max. up to 32 GB (16 GB per SODIMM)
Socket 2 x 260 Pin DDR4 SO-DIMM 2 x 260 Pin DDR4 SO-DIMM 2 x 260 Pin DDR4 SO-DIMM 2 x 260 Pin DDR4 SO-DIMM

Display


Controller Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620 Integrated Intel® UHD Graphics 620
Graphic Engine DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC
DP/HDMI DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)

Ethernet


Speed 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps

Audio


Chipset Realtek ALC888S, High Definition Audio (HD)

Realtek ALC888S, High Definition Audio (HD)

Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD)

Expansion


M.2 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)
Mini PCIe 1 x Full size Mini-PCIe 1 x Full size Mini-PCIe 1 x Full size Mini-PCIe 1 x Full size Mini-PCIe

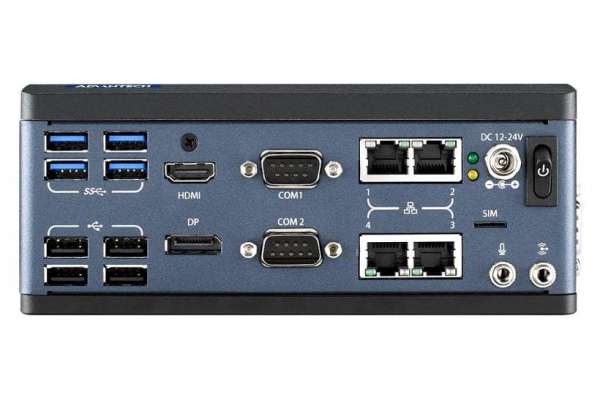

Front I/O Interface


HDMI 1 1 1 1
DP 1 1 1 1
USB 4x USB 3.0, 4x USB 2.0 4x USB 3.0, 4x USB 2.0 4x USB 3.0, 4x USB 2.0 4x USB 3.0, 4x USB 2.0
RJ-45 4 4 4 4
COM 2x RS-232/422/485 2x RS-232/422/485

2x RS-232/422/485

2x RS-232/422/485
Audio 2 (Line-Out, Mic-In) 2 (Line-Out, Mic-In) 2 (Line-Out, Mic-In)

2 (Line-Out, Mic-In)

DC Jack 1 1 1 1
SIM Card 1x Nano SIM 1x Nano SIM 1x Nano SIM

1x Nano SIM

Power Button 1 1 1 1

Miscellaneous


LED Indicators 2 (Power LED, HDD LED) 2 (Power LED, HDD LED)

2 (Power LED, HDD LED)

2 (Power LED, HDD LED)

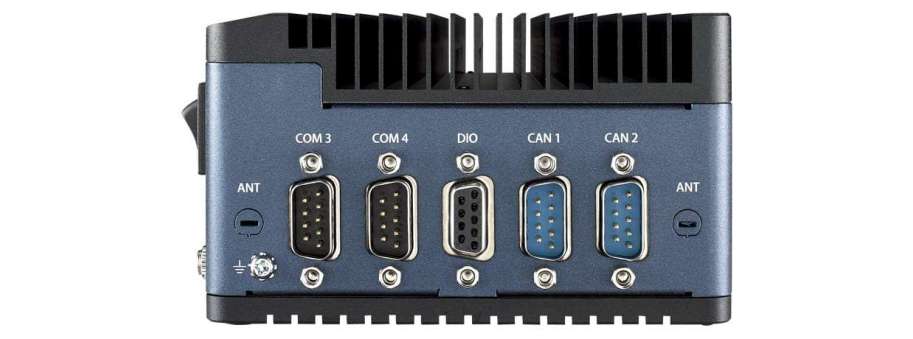

Side I/O Interface


COM 2 (1 x RS-232/422/485, 1 x RS-232) 2 (1 x RS-232/422/485, 1 x RS-232) 2 (1 x RS-232/422/485, 1 x RS-232)

2 (1 x RS-232/422/485, 1 x RS-232)

DIO 1 1 1 1
CAN Bus 2 (Support CAN 2.0B at 1Mb/s) 2 (Support CAN 2.0B at 1Mb/s) 2 (Support CAN 2.0B at 1Mb/s) 2 (Support CAN 2.0B at 1Mb/s)
Antenna 4 4 4 4

Power


Input Voltage

12 VDC

12 VDC 12 VDC 12 VDC
Connector Type Lockable DC Jack Lockable DC Jack Lockable DC Jack Lockable DC Jack

Environment


Operational Temperature With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330
Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity 40 °C @ 95%, Non-Condensing 40 °C @ 95%, Non-Condensing 40 °C @ 95%, Non-Condensing 40 °C @ 95%, Non-Condensing

Physical


Mounting Desk/ Wall Mount/ DIN Rail Desk/ Wall Mount/ DIN Rail Desk/ Wall Mount/ DIN Rail Desk/ Wall Mount/ DIN Rail
Dimensions (W x H x D) 170 x 118 x 70 mm 170 x 118 x 70 mm 170 x 118 x 70 mm 170 x 118 x 70 mm

Regulation


EMC CE/FCC Class B, CCC, BSMI

CE/FCC Class B, CCC, BSMI

CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI
Safety CB, UL, CCC, BSMI CB, UL, CCC, BSMI CB, UL, CCC, BSMI

CB, UL, CCC, BSMI
