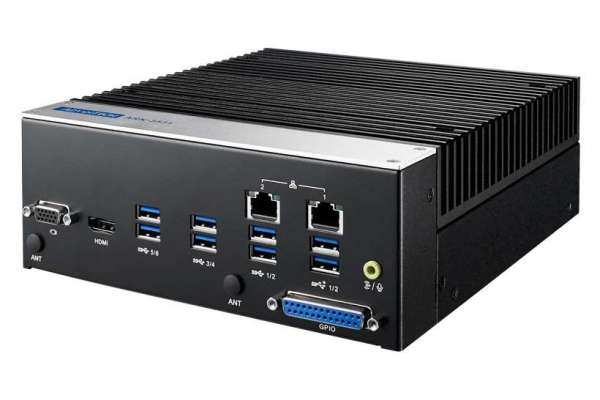

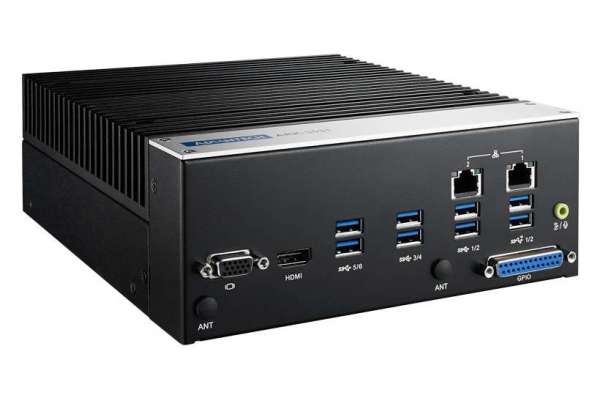

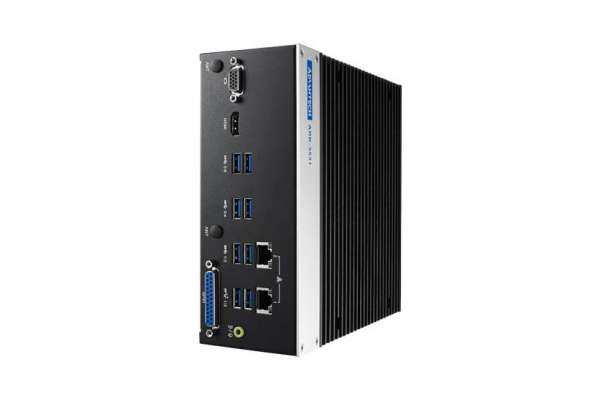

Безвентиляторний ПК ARK-3531

Вбудований безвентиляторний ПК ARK-3531 з двома відеовходами: VGA + HDMI на Intel® 8 Core™ i3/i5/i7/i9 8/9-го покоління LGA1151

Промислові комп'ютери >> Вбудовувані компактні комп'ютери

 Вартість та наявність

Виробник: Advantech

Безвентиляторний вбудовуваний ПК на Intel® Core™ i3 / i5 / i7 / i9 LGA1151 8-го та 9-го покоління

  • Підтримує процесори Intel® Core™ i3 / i5 / i7 / i9 8-го та 9-го поколінь потужністю 35 Вт

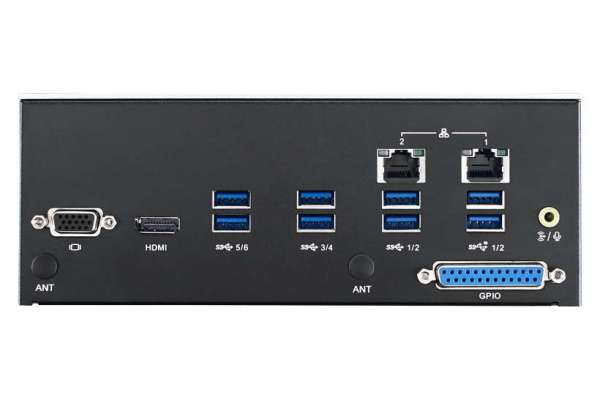

  • Два відеовходи: VGA + HDMI
  • Підтримка пам'яті DDR4 SO-DIMM до 64 ГБ
  • Широкий діапазон вхідної напруги 9-36 В постійного струму
  • Універсальні входи / виходи, в тому числі 2 порта USB 3.1, 6 портів USB 3.0 і 8 портів COM
  • Підтримка 2 внутрішніх відсіків для 2,5-дюймових жорстких дисків (Intel SW RAID 0/1)
  • SUSI API, WISE-DeviceOn, McAfee, Acronis в комплекті
  • Рейтинг захисту IP40

Вартість та наявність

Код товару Опис товару Ціна з ПДВ Наявність
ARK-3531-00A1 Intel CFL-R H370 2LAN+8USB+8COM, 9-36V  26 514,1

Додаткова інформація

Processor System


CPU i9-9900T i7-9700TE i5-9500TE i3-9100TE G4900T
Frequency 2.1GHz-4.4GHz 1.8GHz-3.8GHz 2.2GHz-3.6GHz 2.2GHz-3.2GHz 2.9GHz
L3 Cache 16MB 12MB 9MB 6MB 2MB
Core 8 8 6 4 2
TDP 35W 35W 35W 35W 35W
Chipset H370 (Q370 support by TPN) H370 (Q370 support by TPN) H370 (Q370 support by TPN) H370 (Q370 support by TPN) H370 (Q370 support by TPN)
BIOS AMI EFI 128Mbit AMI EFI 128Mbit AMI EFI 128Mbit AMI EFI 128Mbit AMI EFI 128Mbit

Memory


Technology DDR4 2666 MHz DDR4 2666 MHz DDR4 2666 MHz DDR4 2666 MHz DDR4 2666 MHz
Max. Capacity 64 GB 64 GB 64 GB 64 GB 64 GB
Socket 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM

Graphics


Chipset Intel® UHD Graphics 630 Intel® UHD Graphics 630 Intel® UHD Graphics 630 Intel® UHD Graphics 630 Intel® UHD Graphics 630
Graphic Engine Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
VGA 2048x1280@ 60Hz 2048x1280@ 60Hz 2048x1280@ 60Hz 2048x1280@ 60Hz 2048x1280@ 60Hz
HDMI 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz
Flexible Display (by TPN project) HDMI+HDMI, VGA+DP, HDMI+DP HDMI+HDMI, VGA+DP, HDMI+DP HDMI+HDMI, VGA+DP, HDMI+DP HDMI+HDMI, VGA+DP, HDMI+DP HDMI+HDMI, VGA+DP, HDMI+DP

Ethernet


LAN1 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan
LAN3/LAN4 (by TPN project) 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan 10/100/1000 Mbps Intel I210GbE, support wake on lan

Audio


Interface Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)

Others


Watch dog Timer 255-level timer interval, setup by software 255-level timer interval, setup by software 255-level timer interval, setup by software 255-level timer interval, setup by software 255-level timer interval, setup by software
TPM Onboard TPM 2.0 Onboard TPM 2.0 Onboard TPM 2.0 Onboard TPM 2.0 Onboard TPM 2.0

I/O Interface

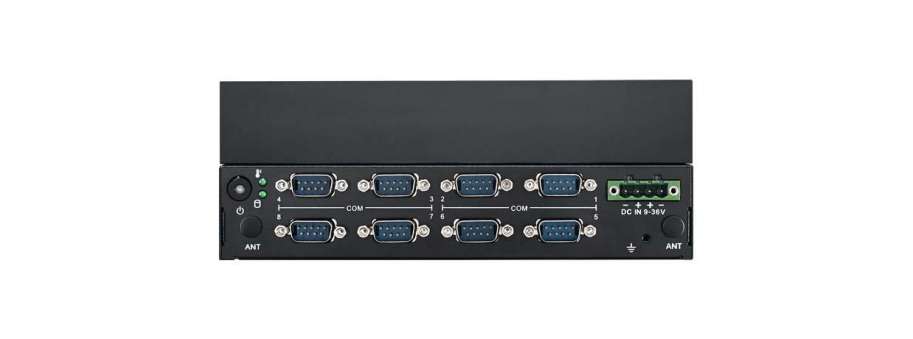

Serial Port 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper)
USB 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A)
GPIO 16bit DIO 16bit DIO 16bit DIO 16bit DIO 16bit DIO

Expansions


Mini PCIe 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280)
M.2 1 x E key 2230 for WiFi 1 x E key 2230 for WiFi 1 x E key 2230 for WiFi 1 x E key 2230 for WiFi 1 x E key 2230 for WiFi

Storage


HDD 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1)
mSATA 1 x mSATA socket (Share with Mini PCIe) 1 x mSATA socket (Share with Mini PCIe) 1 x mSATA socket (Share with Mini PCIe) 1 x mSATA socket (Share with Mini PCIe) 1 x mSATA socket (Share with Mini PCIe)

Software Support


Microsoft Windows Windows 10 Windows 10 Windows 10 Windows 10 Windows 10
Linux By Project Support By Project Support By Project Support By Project Support By Project Support

Power Requirements


Power Type AT/ATX AT/ATX AT/ATX AT/ATX AT/ATX
Power Input Voltage 9-36V 9-36V 9-36V 9-36V 9-36V
Power Adapter AC to DC, 150W (Optional) AC to DC, 150W (Optional) AC to DC, 150W (Optional) AC to DC, 150W (Optional) AC to DC, 150W (Optional)

Power Consumption (CPU/Memory Only)


Typical 16.8W 16.8W 16.8W 16.8W 16.8W
Max. 34.8W 34.8W 34.8W 34.8W 34.8W

Mechanical


Construction Aluminum housing Aluminum housing Aluminum housing Aluminum housing Aluminum housing
Mounting Desk mounting Desk mounting Desk mounting Desk mounting Desk mounting
Dimensions (W x H x D) 200 x 75 x 215 mm 200 x 75 x 215 mm 200 x 75 x 215 mm 200 x 75 x 215 mm 200 x 75 x 215 mm
Weight 3.2Kg 3.2Kg 3.2Kg 3.2Kg 3.2Kg

Environment


Operating Temperature 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Storage Temperature -40 ~ 85° C -40 ~ 85° C -40 ~ 85° C -40 ~ 85° C -40 ~ 85° C
Relative Humidity 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Vibration During Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI
Safety CB(62368), UL(62368), CCC, BSMI CB(62368), UL(62368), CCC, BSMI CB(62368), UL(62368), CCC, BSMI CB(62368), UL(62368), CCC, BSMI CB(62368), UL(62368), CCC, BSMI
