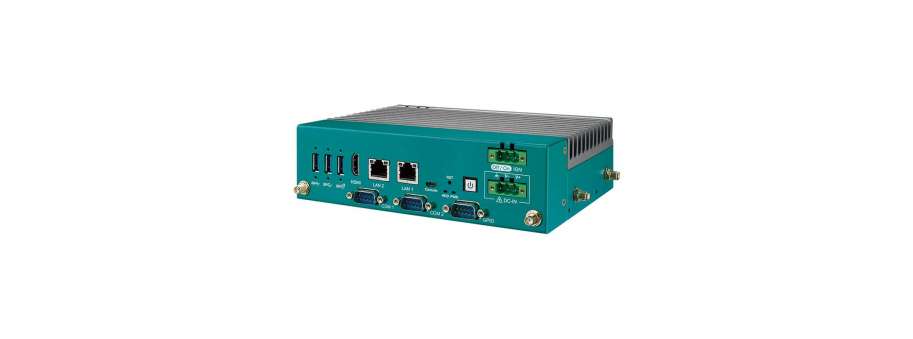

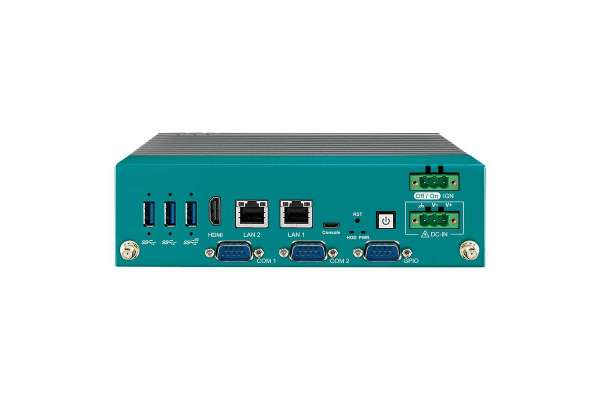

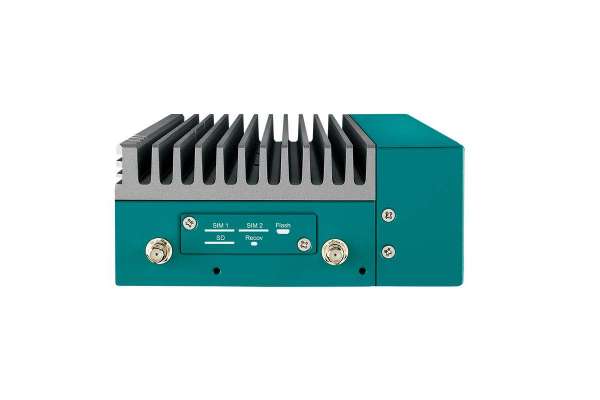

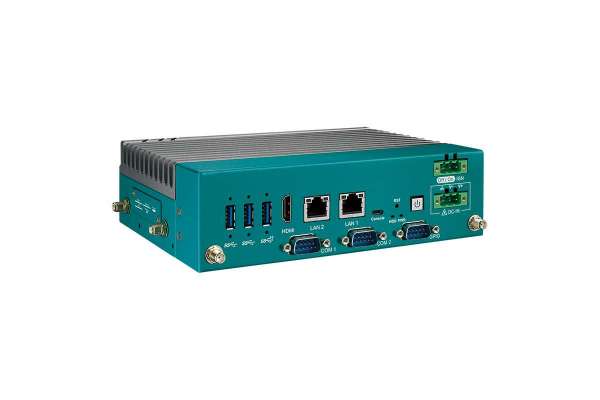

NVIDIA® Jetson Orin™ NX/Nano PC featuring a 1024-core NVIDIA Ampere™ architecture GPU with 8-core Arm® Cortex®-A78AE CPU Vecow EAC-6000

Manufacturer: Vecow
Facebook Twitter Linkedin Mail
  • Small form factor NVIDIA® Jetson Orin™ NX/Nano supports up to 157 TOPS AI performance (Super Mode Supported)
  • Advanced NVIDIA Ampere™ architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
  • 6 GigE LAN with 4 PoE+ , 3 USB 3.1, 2 COM RS-232/422/485
  • Supports multiple 5G/4G/LTE/WiFi/BT/GPRS/UMTS connections
  • Supports 4 GMSL2 automotive cameras with Fakra-Z
  • 1 CAN Bus supports Flexible Data-rate, 7-bit GPIO
  • DC 9V to 50V wide range power input, Ignition Power Control
  • Supports 24/7 secure remote monitoring, control, and optional Out-Of-Band management for disaster recovery empowered by Allxon

Additional information

System
CPU
  • EAC-6000-R16 : 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU
  • EAC-6000-R08 : 6-core Arm® Cortex® -A78AE v8.2 64-bit CPU
  • EAC-6000-AR08 : 6-core Arm® Cortex® -A78AE v8.2 64-bit CPU
  • EAC-6000-AR04 : 6-core Arm® Cortex® -A78AE v8.2 64-bit CPU
GPU 1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores
DL Accelerator
  • EAC-6100-R16 : 2x NVDLA Engines
  • EAC-6100-R08 : 1x NVDLA Engine
  • EAC-6100-AR08/AR04 : NA
Memory
  • EAC-6100-R16 : 1 16GB LPDDR5 DRAM
  • EAC-6100-R08/AR08 : 1 8GB LPDDR5 DRAM
  • EAC-6100-AR04 : 1 4GB LPDDR5 DRAM
Software Support
  • Linux
  • NVIDIA JetPack SDK

I/O Interface
USB
  • 1 USB 3.1 Gen 2
  • 2 USB 3.1
Serial 2 COM RS-232/422/485
CAN Bus 1 CAN Bus supports CAN FD
GPIO 7-bit GPIO
Micro USB
  • 1 Micro USB Console Port
  • 1 Micro USB Recovery Port
Button
  • 1 Power Button
  • 1 Force Recovery Button
  • 1 Reset Button
LED Power, SSD
SIM 2 SIM Card Socket
Antenna
  • EAC-6000 : 6 Antenna for WiFi/4G/5G/LTE/GPRS/UMTS
  • EAC-6100/6200 : 10 Antenna for WiFi/4G/5G/LTE/GPRS/UMTS

Expansion
M.2
  • 2 M.2 Key B Socket (3042/3052, USB3)
  • 1 M.2 Key E Socket (2230, PCIe/USB)

Graphics
Interface 1 Digital Display : Up to 3840 x 2160 @60Hz
Video Encode
  • HEVC : 1x 4K @60, 3x 4K @30, 6x 1080p @60, 12x 1080p @30
  • H.264 : 1x 4K @60, 2x 4K @30, 5x 1080p @60, 11x 1080p @30
Video Decode
  • HEVC : Up to 1x 8K @30, 2x 4K @60, 4x 4K @30, 9x 1080p @60
  • H.264 : Up to 1x 4K @60, 2x 4K @30, 5x 1080p @60, 11x 1080p @30

Camera (EAC-6100)
GMSL 4 Fakra-Z connectors for GMSL 1/2 automotive cameras

Storage
M.2 1 M.2 Key M 2280, up to 1TB NVMe SSD pre-installed
SD 1 Micro SD (External)

Ethernet
LAN 1 to LAN 2 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector (Optional X-coded M12 Connector)
PoE (EAC-6200)
LAN 3 to LAN 6
IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector)
*Remind : Total PoE power budget support up to 100W at 25°C, 30W at 70°C

Power
Power Input DC 9V to 50V
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Remote Switch Terminal Block

Mechanical
Dimensions
  • EAC-6000 : 193 mm x 132 mm x 55 mm (7.6’’ x 5.2’’ x 2.17’’)
  • EAC-6100/6200 : 193 mm x 132 mm x 80 mm (7.6’’ x 5.2’’ x 3.15’’)
Weight
  • EAC-6000 : 1.7 kg (3.74 lb)
  • EAC-6100/6200 : 1.9 kg (4.19 lb)
Mounting
  • Wallmount
  • DIN Rail (Optional)

Environment
Operating Temp.
  • 15W TDP Mode : -25°C to 70°C (-13°F to 158°F), with 0.63 m/s air flow
  • 25W TDP Mode : -25°C to 55°C (-13°F to 131°F), with 0.63 m/s air flow
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @70°C
Shock Operating, MIL-STD-810H, Method 516.8, Procedure I
Vibration Operating, MIL-STD-810H, Method 514.8, Procedure I, Category 4
EMC CE, FCC, EN50155, EN50121-3-2
