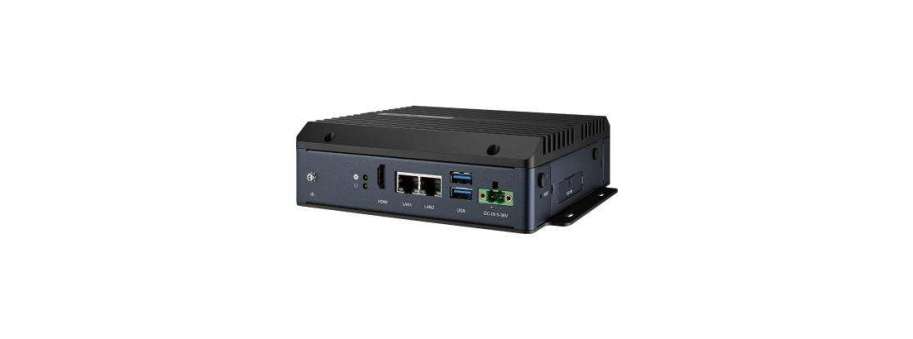

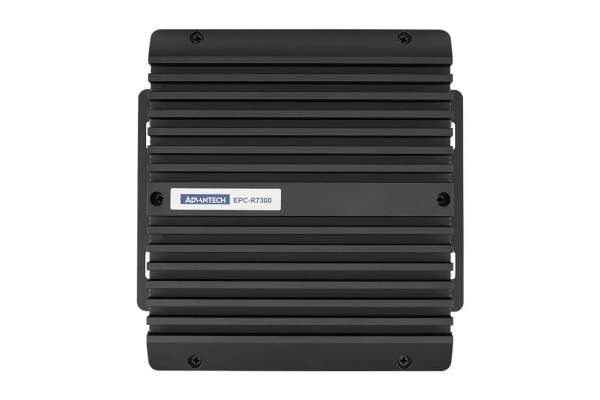

Industrial-Grade NVIDIA Jetson Orin™ Nano and NX Barebone Box PC Advantech EPC-R7300
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EPC-R7300IH-ALA1NN | EPC-R7300IJ-ALA1NN w/ NX-16GB,Ubuntu,128GB NVMe | 121 954,0 | |
| EPC-R7300IV-ALA1NN | EPC-R7300IJ-ALA1NN w/ NX-8GB,Ubuntu,128GB NVMe | 92 373,3 | |
| EPC-R7300IF-ALA1NN | EPC-R7300IJ-ALA1NN w/ Nano-8GB,Ubuntu,128GB NVMe | 76 896,9 | |
| EPC-R7300IT-ALA1NN | EPC-R7300IJ-ALA1NN w/ Nano-4GB,Ubuntu,128GB NVMe | 61 878,2 |
- NVIDIA Jetson Orin™ Nano and NX Module compatible Barebone PC
- Industrial and Expandable Design
- HDMI up to 3840 x 2160 at 60Hz resolution
- Dual GbE LAN, 2 USB3.2 Gen 2
- 1 Nano SIM Slot
- 1 M.2 3042/52 Key B Slot, 1 M.2 2230 Key E Slot, 1 M.2 2280 Key M Slot
- 4 Kinds of Rear I/O for Each Vertical Focus: IEM, Self Service, Automation and Networking
Additional information
Model |
EPC-R7300IJ-ALA1NN | EPC-R7300IJ-ALA180 |
Compatible Modules |
||
| NVIDIA Jetson Series | Orin Nano and NX | Orin Nano and NX |
Graphics |
||
| HDMI | 1 x HDMI 2.0, Maximum Resolution 3840 x 2160 at 60Hz | 1 x HDMI 2.0, Maximum Resolution 3840 x 2160 at 60Hz |
| Graphics Engine | NVIDIA Ampere GPU on Jeston Modules | NVIDIA Ampere GPU on Jeston Modules |
| H/W Video Codec | Up to 4K60 encode/decode | Up to 4K60 encode/decode |
Ethernet |
||
| Chipset | NVIDIA Jetson integrated RGMII and Intel 1GbE Controller | NVIDIA Jetson integrated RGMII and Intel 1GbE Controller |
| Speed | 2 10/100/1000 Mbps | 2 10/100/1000 Mbps |
Indicator |
||
| LED | 1 x Power LED; 1 x Programmable LED | 1 x Power LED; 1 x Programmable LED |

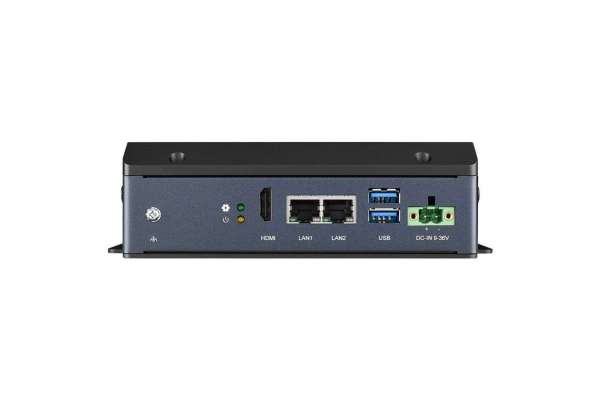

Front I/O |
||
| USB | 2 x USB3.2 Gen 2 Type A | 2 x USB3.2 Gen 2 Type A |
| GbE | 2 x RJ45 for GbE | 2 x RJ45 for GbE |
Rear I/O |
N/A | 3 x LAN & 1 WAN |
Expansion |
||
| M.2 |
|
|
| SIM | 1 Nano SIM Slot | 1 Nano SIM Slot |
| Antenna Holes | 4 | 4 |
Power |
||
| Power Supply Voltage | 9-36V | 9-36V |
| Power Type | 2-pole lockable DC-in | 2-pole lockable DC-in |
| Power Consumption | 40 Watts (Depends on Module Selection) | 40 Watts (Depends on Module Selection) |
Environment |
||
| Operating Temperature | -20 ~ 60 °C | -20 ~ 60 °C |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing | 5% ~ 95% relative humidity, non-condensing |
Mechanical |
||
| Dimensions | 152 x 173 x 50 mm (W x L x H) | 152 x 173 x 50 mm (W x L x H) |
| Mounting | Wall mount, DIN Rail mount | Wall mount, DIN Rail mount |
| Weight | 1.25 Kg | 1.25 Kg |
Operating System |
||
| Linux | Ubuntu | Ubuntu |
| Certifications | CE/FCC Class B | CE/FCC Class B |
