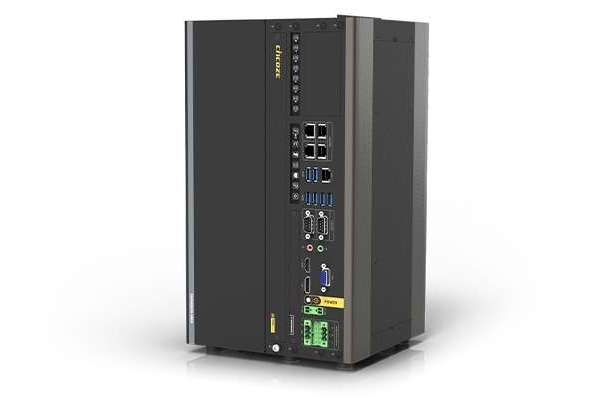

14/13/12th Gen Intel® Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W Cincoze GP-3100

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
GP-3100-R10 Високопродуктивний компактний комп'ютер Cincoze GM-3000-R10, 14/13/12th Gen Intel® Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W  112 200,0

The GP-3100 is a high-performance GPU computer for industrial AI and machine vision applications. It supports an Intel® Core™ processor, up to two 250W full-length GPU cards, high-capacity storage, and high-speed I/O. Three patented features, designed for specific customer needs, improve expansion, heat dissipation, and overall stability, making the GP-3100 an ideal choice for complex Edge AI applications.

  • 14/13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 5600MHz, 96GB
  • 4x 2.5GbE LAN and optional 2x 10GbE LAN
  • 1x M.2 Key E Type 2230 Socket For Wireless/Bluetooth/Storage/Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3052/3042 Socket For 5G/GNSS/ Storage/Add-on card Expansion
  • 1x M.2 Key B Type 2280 Socket For GNSS/Add-on card Expansion
  • 1x M.2 Key M Type 2280 Socket For Storage/Add-on Card Expansion
  • 4x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
  • Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
  • Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Flat / Wall Mount)
  • Wide Operating Temperature -40°C to 70°C (-40°F to 158°F)

Additional information

System
Processor
  • 14th Generation Intel® Raptor Lake-S Refresh Series CPU
  • 13th Generation Intel® Raptor Lake-S Series CPU
  • 12th Generation Intel® Alder Lake-S Series CPU

(For more information, see the technical specifications.)
Chipset
 Intel R680E Chipset
Memory
2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB.
- Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.
- Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Sup
BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
  • Integrated Intel® UHD Graphics 730: Core™ i3
  • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output Supports Triple Independent Display
HDMI
1x HDMI Connector (3840 x 2160@30Hz)
* Verified maximum resolution: 3840x2160@30Hz
DP
1x DisplayPort Connector (4096 x 2304@60Hz)
* Verified maximum DP resolution: 3840x2160@60Hz
VGA 1x VGA Connector (1920 x 1200@60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN
  • 4x 2.5GbE LAN, RJ45 (Intel I225)
  • 1x 1GbE LAN, RJ45 (Intel I219)
COM 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB 6x USB 3.2 Gen1x1 (5Gbps), Type A

Storage / Expansion
2.5” SSD/HDD 4x 2.5" Front Accessible SATA HDD/SSD Bay Supporting HotSwap Function (SATA 3.0) (Up to 15mm in Height)
M.2 M Key Socket 1x M.2 Key M Type 2280 Socket (PCIe Gen 4x4 / SATA), Support Storage/Add-on Card Expansion
M.2 E Key Socket 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0 / Intel CNVi), Support Wireless/Bluetooth/Storage/Intel CNVi Module Expansion
M.2 B Key Socket
  • 1x M.2 Key B Type 3052/3042 Socket (PCIe Gen 3x2 / USB3.2 Gen 2x1 / SATA), Support 5G/GNSS/ Storage/Add-on card Expansion
  • 1x M.2 Key B Type 2280 Socket (PCIe Gen 3x1 / USB2.0), Support GNSS/Add-on card Expansion
PCIe
Optional GPU Expansion Box
- 1 x PCIe x 16 Slot ( PCIe x 16 Signal ) for GPU Card + 1 x PCIe x 4 Slot (Max. 25W)
* 1x GPU: Max 300W
- 2 x PCIe x 16 Slot ( PCIe x 8 Signal ) for GPU Card + 1 x PCIe x 4 Slot (Max. 25W) + 1 x PCIe x 1 Slot (Max. 25W)
* 1x GPU: Max 300W * 2x GPU: Max 500W
CMI (Combined Multiple I/O) Interface
  • 1x High Speed CMI Interface for optional CMI Module Expansion
  • 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface
  • 1x CFM IGN Interface for optional CFM-IGN Module Expansion
  • 1x CFM PoE Interface for optional CFM-PoE Module Expansion

Other Function
RAID Support RAID 0/1/5/10
FAN 2x Fan Kits ( Air-flow isolated from the electronics )
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Antenna Holes 7x Antenna Holes

Power
Power Button 1x ATX Power On/Off Button
Power Input Voltage 9-48VDC, Single Power Input
Connector 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A - Dual power connect must be used at the same time due to 15A current limitation at each power connector.
Power Mode Switch 1x AT/ATX Mode Switch
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption
  • 35W CPU: 201.05W
  • 65W CPU: 306.48W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in
Inrush Current (Peak)
  • 35W CPU: 9.221 A@24V
  • 65W CPU: 8.976 A@24V

Physical
Dimension ( W x D x H ) 105 x 195 x 370 mm
Weight Information 7.7 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal

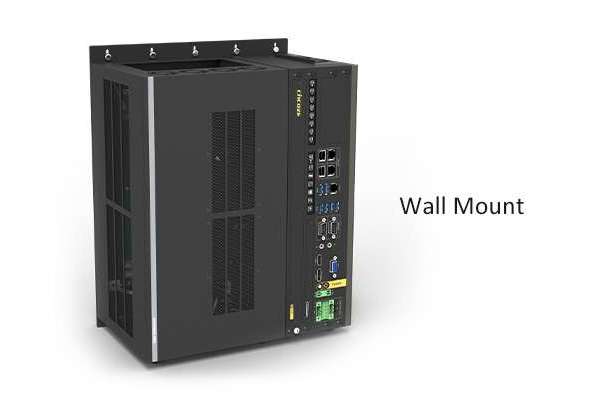

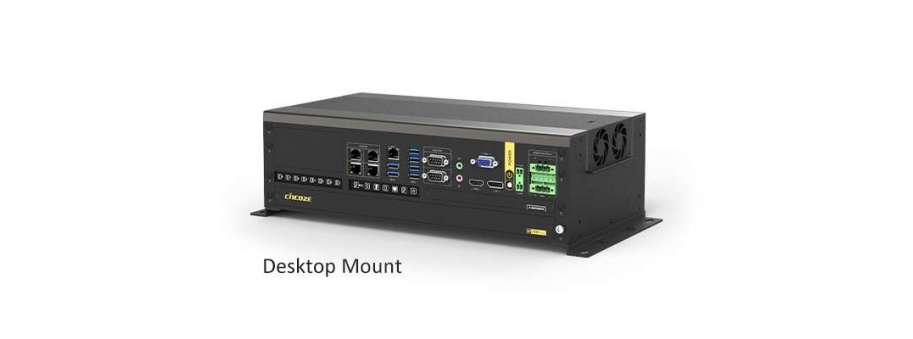

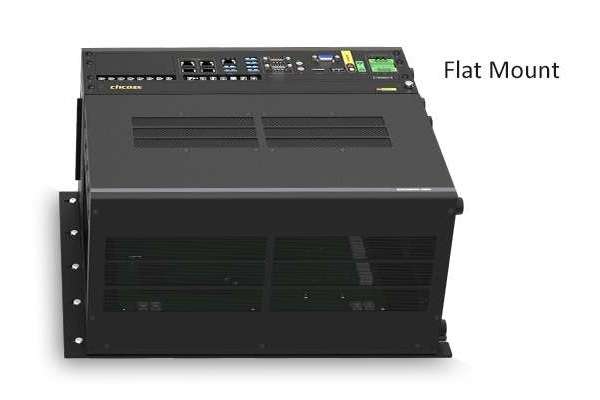

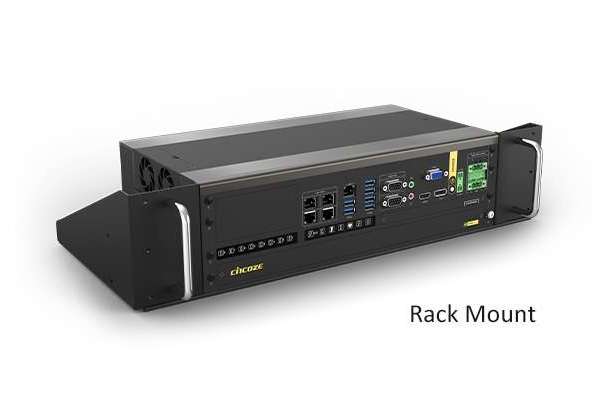

Mounting Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Flat / Wall Mount)
Physical Design
  • Jumper-less Design
  • Unibody Design

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu Desktop 22.04 LTS

Environment
Operating Temperature
  • 35W TDP Processor: -40°C to 70°C (-40°F to 158°F)
  • 65W TDP Processor with external FAN: -40°C to 60°C (-40°F to 140°F) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068
Storage Temperature -40°C to 70°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock MIL-STD-810H
Vibration MIL-STD-810H
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN 50155 (EN 50121-3-2 Only)
  • E-mark
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Fire Protection EN 45545-2
Safety UL, cUL , CB, IEC, EN 62368-1
