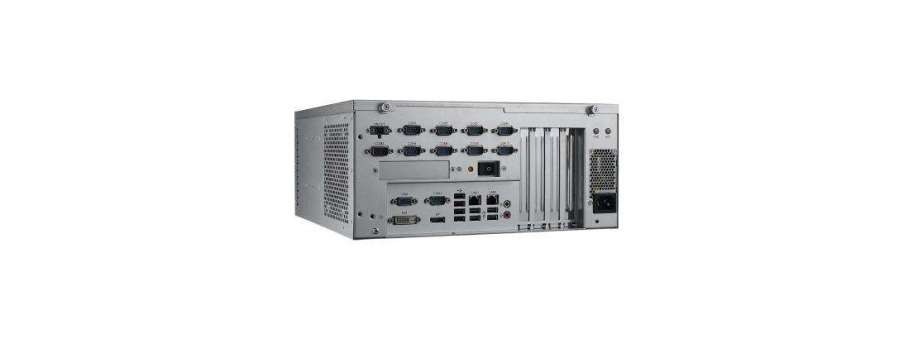

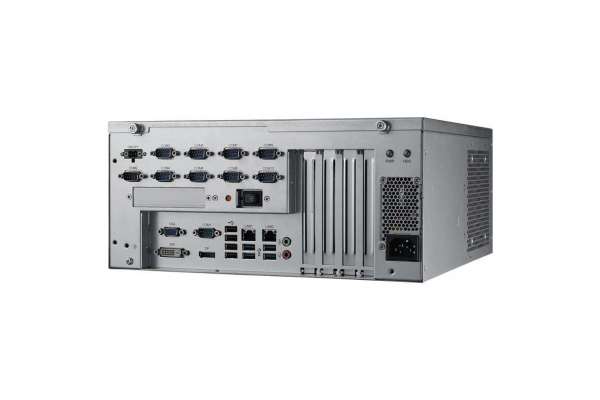

Front Access Micro Computer, Intel 6th/7th Gen Core i CPU (LGA1151), 10 COM, 8 USB, and 4 Expansion slots Advantech AIMC-3403
- Desktop CPU computing performance with smart fan control

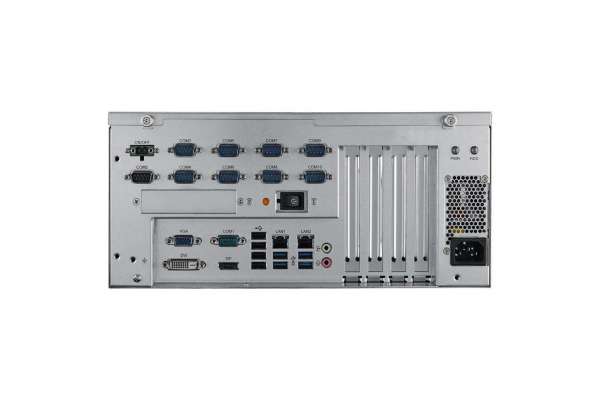

- Rich and single side I/O on the front for easy maintenance
- PCIe and PCI slots for add-on card expansion
- Dual 3.5" SATA HDD bays for large volume data storage
- Optional front I/O opening for 2 USB and 8-bit GPIO extending
- 2-Pin Remote Switch connector suitable for IEM equipment remote access
Processor System |
||||||||
| CPU | i7-7700/ i7-7700T | i7-6700/ i7-6700TE | i5-7500/ i5-7500T | i5-6500/ i5-6500TE | i3-7101E/ i3-7101TE | i3-6100/ i3-6100TE | Pentium G4400/ G4400TE | Celeon G3900/ G3900TE |
| Core Number | 4/4 | 4/4 | 4/4 | 4/4 | 2/2 | 2/2 | 2/2 | 2/2 |
| Base Frequency | 3.6GHz / 2.9GHz | 3.4GHz / 2.4GHz | 3.4GHz / 2.7GHz | 3.2GHz / 2.3GHz | 3.9GHz / 3.4GHz | 3.7GHz / 2.7GHz | 3.3GHz / 2.4GHz | 2.8GHz / 2.3GHz |
| L3 Cache | 8M/8M | 8M/8M | 8M/8M | 6M/6M | 3M/3M | 3M/4M | 3M/3M | 2M/2M |
| TDP (W) | 65W/35W | 65W/35W | 65W/35W | 65W/35W | 54W | 51W/35W | 54W/35W | 51W/35W |
Additional information
Processor System |
|
| Chipset | H110 |
| BIOS | AMI EFI 128 Mbit SPI |
Memory |
|
| Technology | Dual Channel DDR4 2400 MHz SDRAM |
| Max. Capacity | 32 GB, 16GB per DIMM socket |
| Socket | 2 x 288-pin DIMM (Non-ECC) |
Graphics |
|
| Chipset Integrated | Integrated Intel HD Graphics |
| Display |
|
Expansion slot |
|
| PCI Express x16 (Gen 3) | 1 |
| PCI Express x1 (Gen 2) | 2 |
| PCI | 1 |
| Full-size Mini-PCIe | 1 (support mSATA) |
Ethernet |
|
| Interface | 10/100/1000 Mbps |
| Controller | 2 x Realtek RTL8111G |
| Connector | 2 RJ-45 |
Drive bay |
|
| 3.5" HDD (internal) | 2 (SATA 3.0) |
I/O Interface |
|
| USB | 4 USB3.0, 4 USB2.0 (2 more USB3.0 via optional kit) |
| Serial | 10 COM |
| Remote switch (on/off) | 1 (2-pin terminal block connector) |
| Audio | 1 Mic-in, 1 Line-out |
Power Supply |
|
| Output Rating | AC 250W, ATX |
| Input Voltage | 100 VAC ~ 240 VAC |
Cooling |
|
| System Fan | 1 (8cm / 46.62CFM) |
| Air Filter | Optional module |
Miscellaneous |
|
| LED Indicators | Power, HDD |
| Control | Power on/off switch, Reset button |
Environment |
|
| Temperature |
Operating: 0 ~ 40 °C (32 ~ 104 °F)
Non-operating: -20 ~ 60 °C (-4 ~ 140 °F)
|
| Humidity |
Operating: 95% @ 40 °C, non-condensing
Non-operating: 95% @ 60 °C, non-condensing
|
| Vibration |
Operating: 1Grms, random, 5~500Hz, 3 axes, 1 hr/axis
Non-operating: 2Grms, sine wave, 5~500Hz, 3 axes, 1 hr/axis
|
| Shock |
10G, half sine wave, 11 ms duration
|
| EMC | CCC |
| Safety | CCC |
Physical Characteristics |
|
| Dimension (WxHxD) | 330 x 148 x 300 mm |
| Weight | 6.3 kg |
