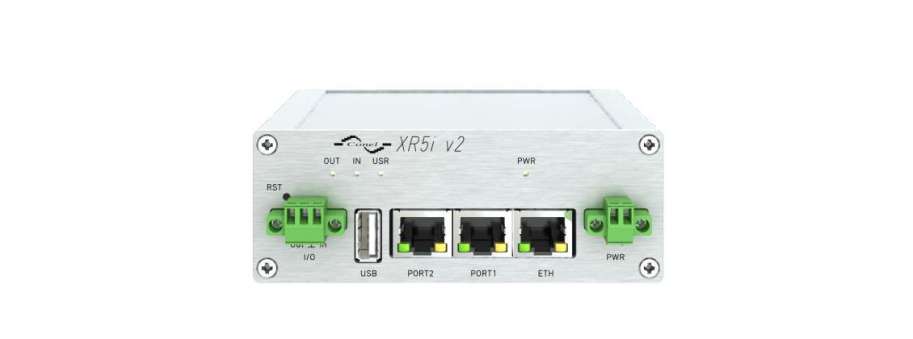

Industrial router with one ETHERNET 10/100 port, 1 USB A (host) port, 1 I/O port and 2 expansion ports Advantech XR5i v2
Industrial router XR5i v2 (or XR5i v2F SL) is used to a secure connection between two local area networks (LANs) via two ETHERNET interfaces 10/100 and secured tunnel (IPSec, OpenVPN or L2TP). The second option is to use this router for connecting two devices with different serial interface
(RS232, RS485, MBUS) alternatively I/O to the local network (LAN). In this configuration, the communication device has an EHTERNET 10/100 and two interfaces that are equipped on the user’s request. XR5i v2 router is standardly equipped with one ETHERNET 10/100 port, one USB A (host)
port, one I/O port and two expansion ports. Users can select a second ETHERNET 10/100 port, serial interface RS232, RS485, RS422, MBUS, expansion port with SD card (SDH) or other inputs/outputs (I/O). Industrial XR5i v2 router is supplied either in a plastic or metal casing, based on the requirements of the customer.
Additional information
|
|
XR5i v2 |
| General |
|
|
CPU |
32b ARM microprocessor 0.25 DMIPS per MHz |
|
Flash memory |
16 MB DDR SDRAM |
|
RAM |
64 MB |
|
M-RAM |
128 kB |
|
Input/Output |
|
|
Binary input Binary output |
Reed contact with trigger level 1.3 up to 1.4 V 100 mA / max. 30 V |
|
Temperature range |
|
| Function | -40 ◦C to +75 ◦C |
| Storage | -40 ◦C to +85 ◦C |
| Humidity | |
| Operating | 0 to 95 % relative humidity non condensing |
| Storage | 0 to 95 % relative humidity non condensing |
| Altitude | |
| Operating | 2000 m / 70 kPa |
| Degree of protection | IP30 |
| Supply voltage | 9 to 36 V DC |
| Consumption | |
| Idle /WiFi Com./ Full Com. | 1.6 W/ 1.9 W/ to 2.5 W |
| Dimensions | 42 x 76 x 113 mm (DIN lišta 35 mm) |
| Weight | XR5i v2 – 150 g XR5i v2 SL – 280 g |
| User interface | |
| ETH | Ethernet (10/100 Mbps) |
| USB | USB 2.0 |
| PORT1 | Ethernet (10/100 Mbps) |
| PORT2 | On customer’s request |
| Certificates | |
| EMC | ETSI EN 301 489-1 V2.1.1, ETSI EN 301 489-17 V3.1.1, ETSI EN 301 489-3 V2.1.1 |
| Safety | EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 + AC:2011 |
