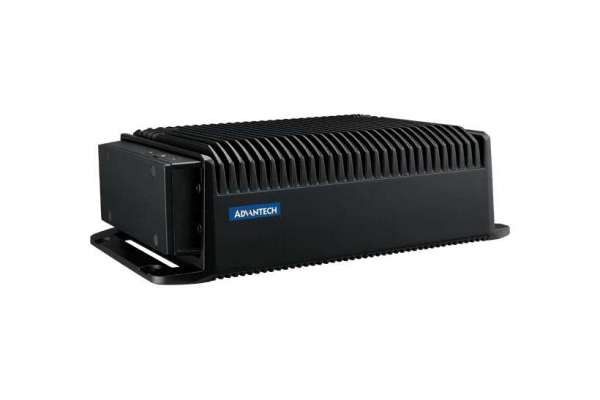

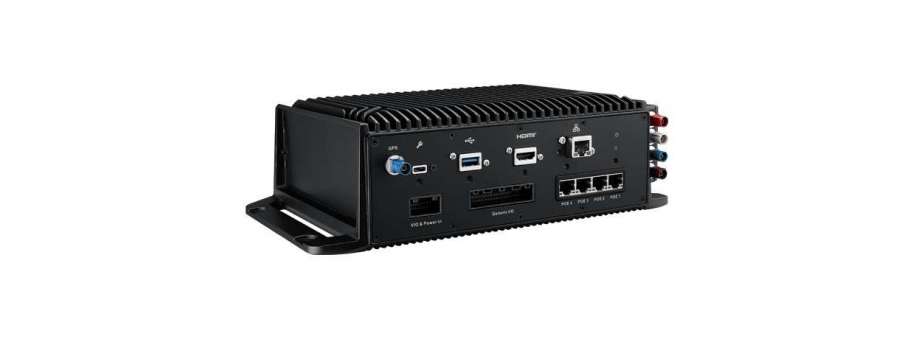

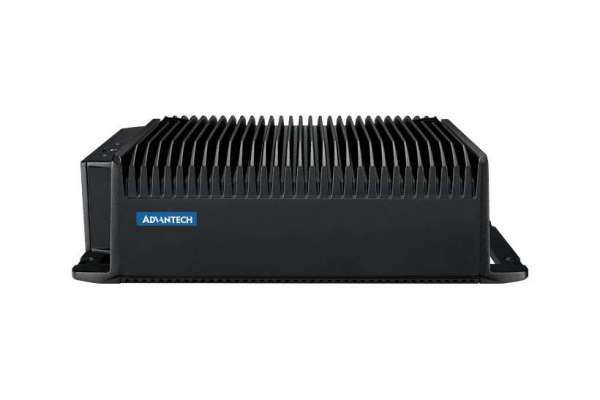

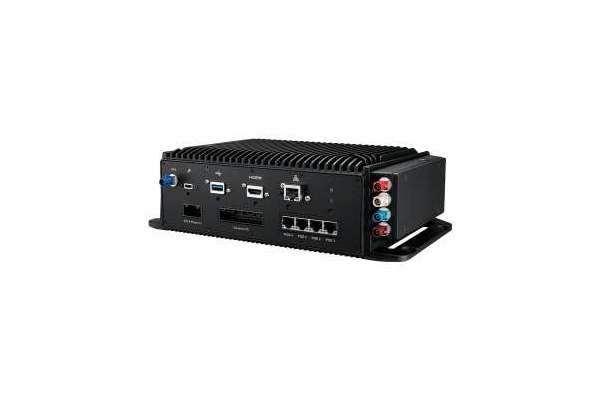

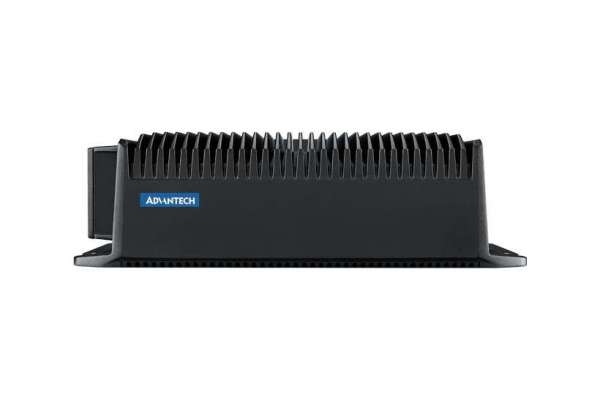

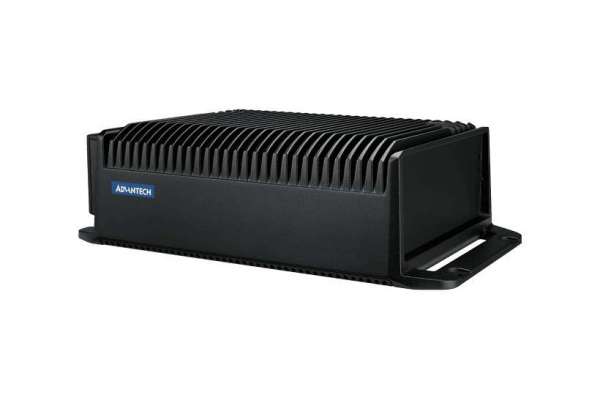

NVIDIA® Jetson Orin™ NX Edge AI Computer for In-Vehicle & Harsh Environments Advantech TREK-50N
As a rugged IP67 edge AI in-vehicle computer, the TREK-50N is powered by NVIDIA® Jetson Orin™ NX, delivering up to 100 TOPS of outstanding AI inference performance. It is designed for applications in commercial vehicles and heavy duty machinery. To meet the needs of various vision-based AI applications, TREK-50N supports 4 GMSL2 or 4 PoE ports. TREK-50N inherits the trusted design of the TREK series, featuring an ISO 7637-2 compliant automotive power design, EN 60721-3-5 (5M3) vibration and shock resistance, IP67-rated water and dust protection, and an operating temperature range of -20°C to 70°C.
- In-vehicle Edge AI computer with NVIDIA® Jetson Orin™ NX
- In-vehicle power design: 12V/24V automotive power design compliant with ISO 7637-2 and E-Mark
- Rugged design compliant with IP67, EN 60721-3-5 (5M3) vibration and shock standards, -20°C to 70°C operating temperature without airflow
- Supports 2 x CAN FD and either 4 x GMSL2 or 4 x PoE
- Modular design supports Automotive Ethernet, RF communication, and C-V2X
Additional information
Processor |
|
| CPU | Jetson Orin NX 8GB 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB by request) |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| Memory | 8GB/16GB 128-bit LPDDR5 DRAM |
Storage |
|
| M.2 | 1 x M.2 2280 M-Key (NVMe, PCIe x1) |
Display |
|
| SDP2.0 |
|
| HDMI | 1 x HDMI (by request, either SDP2.0 or HDMI) |

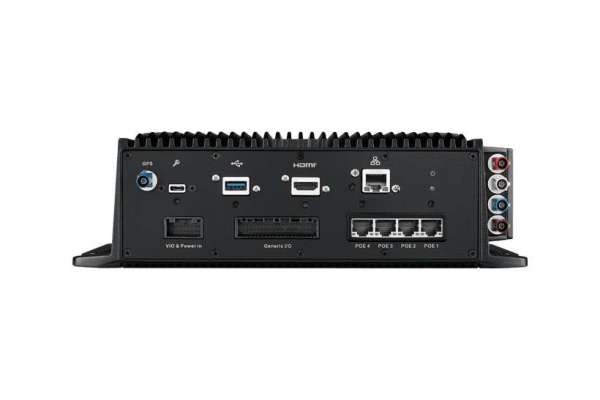

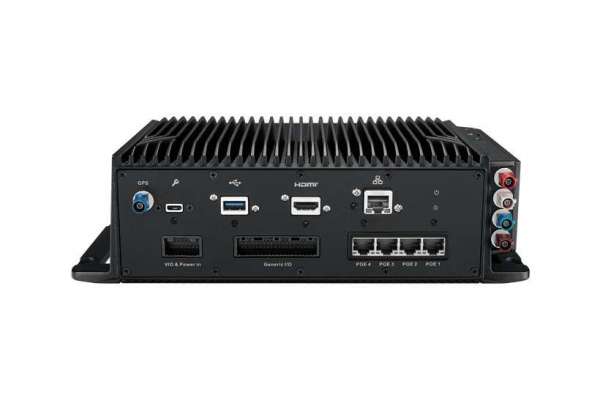

IO |
|
| Indicated LED |
1 x LED - Power on (Solid Red) - Power off (No Lights) - Programable (Solid Yellow) |
| Standard IO |
|
| VIO2.0 (via VIO cable) |
|
| Generic I/O 2.0 (via generic I/O cable | 2 x 4-wire RS-232/RS-485 (default RS232 + 485) 6 x isolated DI (dry/wet), 4 x isolated DO 1 x line-out, 1 x mic-in |
| PoE Ports | 4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliant Power output shared by all cameras/devices is limited to 30W |
| GMSL Ports | 4 x FAKRA Z GMSL2 (by SKU, either PoE Ports or GMSL Ports) |
Develop Tools |
|
| SDK | iVS DevStack |
OS |
|
| Linux | Ubuntu 20.04 / JetPack 5.1 |
RF (WLAN/WWAN via RF extension) |
|
|
WLAN/Bluetooth
|
1 x full-size mini PCIe (PCIe/USB 2.0) for 802.11a/b/g/n/ac Wi-Fi 5 + Bluetooth V5.0 combo module 1 x M.2 2230 (A+E Key) for 802.11a/b/g/n/ac/ax Wi-Fi 6 + Bluetooth V5.0 above combo module |
| WWAN |
|
| GNSS | Built-in u-blox NEO-M9L (ADR), GPS management (via MRM SDK |
| Antenna |
|
Others (via IO extension) |
|
| Automotive Ethernet | 2 x Automotive Ethernet |
| V2X | 1 x C-V2X or 1 x DSRC |
Expansion |
|
| Internal slot |
|
Power Supply |
|
| Voltage Input | 12V/24V automotive power (ISO 7637-2 and SAE J1113 compliant) |
| Vehicle Power Management (VPM) |
|
Mechanical |
|
| Dimension | 280 x 82.5 x 182 mm |
| Weight | 3.3 kg |
Environmental |
|
| IP rating | Generic & IP67 (by SKU) |
| Vibration/Shock | MIL-STD-810H, EN60721-3-5 (5M3: Shock 100G 6ms, Random Vibration 3Grms) |
| EMC | CE, FCC, RCM, CCC |
| Safety | UL/cUL, CB, CCC |
| Vehicle Regulation |
|
| RF Regulation | CE (RED), FCC ID, IC ID |
| Operating Temperature* |
|
| Storage Temperature | -40 ~ 85°C |
| DeviceOn iService | Compatible with DeviceOn iService remote device management, supporting but not limited to the following features: OTA software installation, remote SSH, device anomaly monitoring, and device control |
