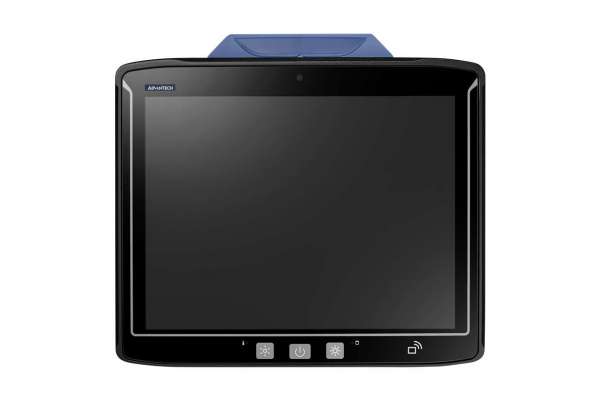

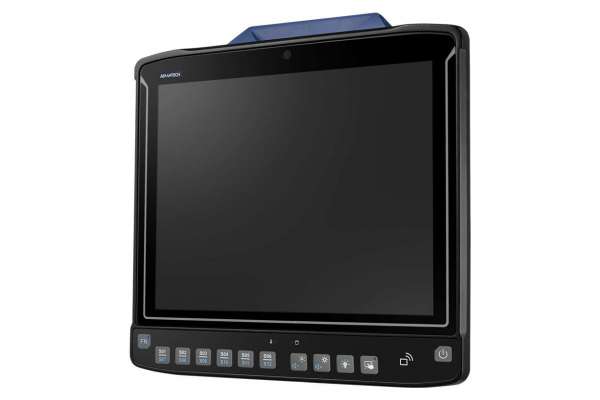

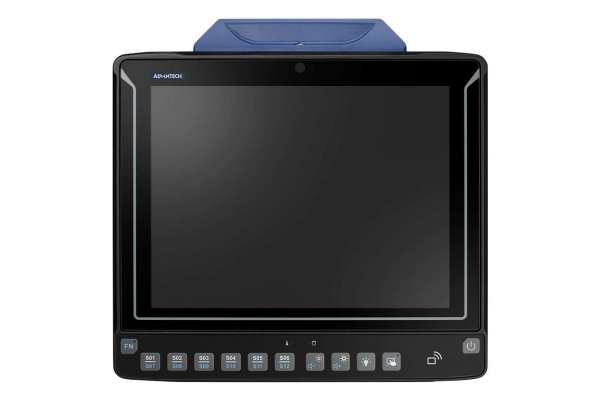

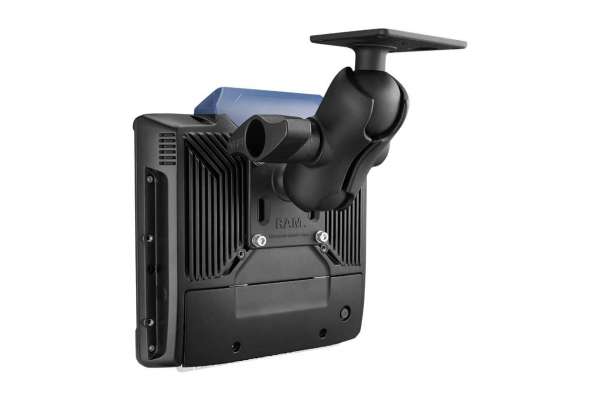

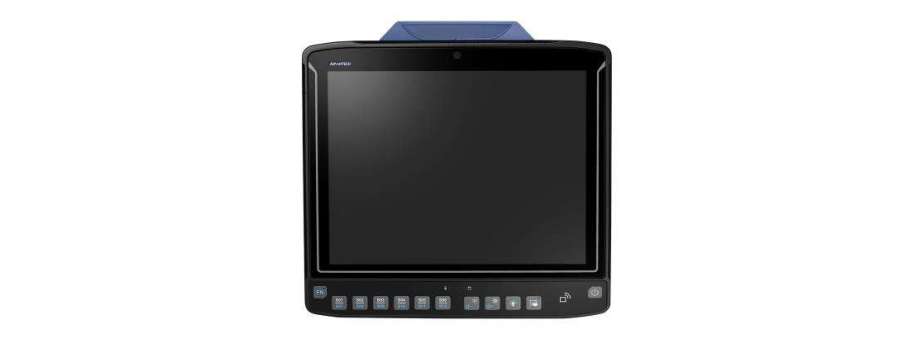

10.4" Rugged X86-Based Vehicle Edge AI Solution Advantech DLT-V73
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| DLV7310-2PQ110W00 | DLT-V7310P,C,8GB,128GB,WIN10,WLAN | 224 825,0 | |
| DLV7312-2PQ110W00 | DLT-V7312P,C,8GB,128GB,WIN10,WLAN | 247 470,0 | |
| DLV7312-2QQ110W00 | DLT-V7312P+,C,8GB,128GB,WIN10,WLAN | 255 363,0 | |
| DLV7310-2VQ110W00 | DLT-V7310R,C,8GB,128GB,WIN10,IntelWLAN | 228 720,0 | |
| DLV7310-5PQ110W00 | DLT-V7310P,i5,16GB,128GB,WIN10,IntelWLAN | 363 819,0 | |
| DLV7312-5PQ110W00 | DLT-V7312P,i5,16GB,128GB,WIN10,IntelWLAN | 360 820,0 | |
| DLV7312-5QQ110W00 | DLT-V7312P+,i5,16GB,128GB,WIN10,IntelWLAN | 356 258,0 |
Advantech's DLT-V73 series is an x86-based industrial grade vehicle-mounted terminal (VMT) designed for the most demanding applications to provide maximum system uptime. The slim and compact design allows it to fit into the smallest of vehicle cabinets. The compact design not only consumes minimal installation space, but it also minimizes obstructions to road visibility, thereby improving driving safety. The DLT-V73 is designed to withstand operation in extreme industrial environments, whether it is hot and humid, or cold and dry. Moreover, DLT-V73 can support both Windows and Linux operating systems, making it an ideal VMT for a wide range of smart applications, such as warehouse management, port management, heavy-duty operations, and industrial manufacturing. The integrated Wi-Fi 6/6E WLAN Kit offers excellent wireless connectivity for uninterrupted data transmission. Meanwhile, the scratch-resistant touchscreen ensures easy data input and gloved operation. By using latest technology optical bonding, the display provides a clear and bright image. To sum up, Advantech's DLT-V73 offers a rugged VMT solution, which supports both Windows and Linux operating systems and ensures easy and cost-effective migration and device management. This makes it easy for businesses to keep up with their existing needs and remain scalable for future upgrades.
- 10.4"/12.1" color TFT XGA display
- Intel® Core™ i5-1145GRE quad-core, 1.5 GHz , 16 GB RAM or Intel® Celeron® 6305E dual-core 1.8 GHz, 8 GB RAM
- IK08-certified touchscreen for impact tolerance and abrasion resistance
- Full IP66 rating for protection from water and dust ingress
- 5M3 shock and vibration resistance verified
- Wide operating temperature range (-30 ~ 50 °C / -22 ~ 122 °F) to withstand extreme environments
- Optional uninterruptible power supply via battery pack (up to 20 minutes of operation)
- Supports Windows and Linux
- Certified with SOTI, StayLinked, and Navis N4 software
- Supports Advantech DeviceOn software for remote device management
Additional information
System |
|
| CPU |
|
| TPM | TPM 2.0 |
| Storage | 128 GB or 256 GB CFast |
Dimensions (W x H x D) |
|
| DLT-V7310 | 268 x 267 x 57 mm (10.6 x 10.5 x 2.2 inch) |
| DLT-V7312 | 298 x 290 x 67 mm (11.7 x 11.4 x 2.6 inch) |
| DLT-V7312P+ | 298 x 270 x 67 mm (11.7 x 10.6 x 2.6 inch) |
Weight |
|
| DLT-V7310 | 4.0 kg (8.7 lb) |
| DLT-V7312 | 4.8 kg (10.5 lb) |
| DLT-V7312P+ | 4.6 kg (10.1 lb) |
Housing |
Completely sealed, fanless design made of coated aluminum |
Display |
|
| DLT-V7310 | 10.4" XGA color TFT with 1024 x 768 resolution and 500 cd/m² brightness, Aspect Ratio: 4:3 |
| DLT-V7312 / 12P+ | 12.1" XGA color TFT with 1024 x 768 resolution and 600 cd/m² brightness, Aspect Ratio: 4:3 |
Touchscreen |
|
| Resistive touchscreen |
|
| PCT Projective capacitive touchscreen |
|
| Resistive Touchscreen with Defroster |
|
Control Buttons |
|
| Front Panel 10" & 12" | 12 x control buttons |
| Front Panel 12" P+ | 3 x control buttons |
OS |
|
| Operating System | Windows 11 IoT Enterprise, Windows 10 IoT Enterprise, Ubuntu-based Linux (On project based) |
Communication |
|
| WLAN | WLAN diversity; IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6/6E: 2.4GHz; 5GHz; 6GHz) |
| WWAN, GPS | WWAN (LTE, UMTS, HSPA+, GPS) (optional) |
| LAN | 1 x LAN (10/100/1000/2500 Mbit/s), 1 x LAN (10/100/1000 Mbit/s) |
| WPAN | Bluetooth 5.3 |
| NFC | NFCIP-1 and NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE (NFC for V73 x86/Linux supported by project base) |
Interfaces |
|
| Serial | 1 x COM RS-232: 5 VDC / 12 VDC / RI (switchable) |
| USB | 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 2, 1 x Service USB-C 3.2 Gen 2 |
| External Antenna | 1 x RSMA for WLAN, 1 x SMA for WWAN (optional), 1 x SMA for GPS (optional) |
| AddOn Module (optional) |
Available options (only one module at a time):
|
Sensors |
|
| Audio | 2 x integrated Stereo-Loudspeaker (2 x 2.5 W) |
| Power Supply | 12/24/48V certified vehicle power; Automatic power on/off function via vehicle ignition Optional uninterruptible power supply (UPS) via battery pack (supports up to 20 minutes of operation; battery life may vary according to load) |
Environmental |
|
| IP Rating | IP66 rating for the entire system |
| Operating Temperature |
|
| Storage Temperature |
|
