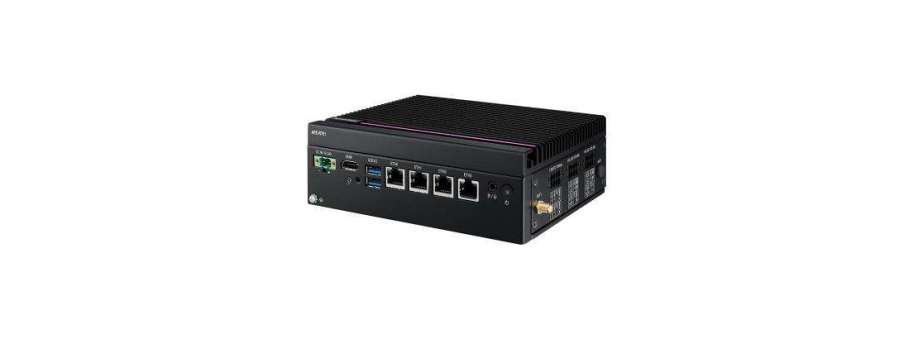

Вбудована система на Rockchip RK3588 Cortex®-A76 і A55 AMR Advantech AFE-R761

Виробник: Advantech
Facebook Twitter Linkedin Mail
  • Rockchip RK3588 Arm Quad Cortex-A76 2,4 ГГц і Quad Cortex-A55 1,8 ГГц
  • Вбудований NPU з продуктивністю до 6 TOPS
  • Вбудована пам'ять LPDDR4 об'ємом 8 ГБ і eMMC об'ємом 64 ГБ
  • Підтримка декодування відео 8K @ 60 fps H.265/VP9 і кодування відео 8K @ 30 fps H.265/H.264
  • Виділені входи/виходи для AMR: 1 x 2,5GbE, 3 x GbE, 2x USB3.2, 4 x USB2.0, 2 x CAN FD, 4 x RS-485, 8-бітний ізольований DIO
  • Вхід 12-24 В постійного струму, контакт: 8 кВ, повітря: 15 кВ, захист від електростатичного розряду
  • Надає M.2 E Key з сигналом PCIE 2.1, USB 2.0 і M.2 B Key з сигналом PCIE 2.1/SATA, USB 3.0
  • Підтримує Linux Debian12, Android14

Додаткова інформація

Model

AFE-R761-U0A1

AFE-R761-U1A1

AFE-R761-U1B1

AFE-R761-U2B1

AFE-R761-U1C1

AFE-R761-U2C1

AFE-R761-U0D1

AFE-R761-U1D1

Processor
CPU Rockchip RK3588/RK3588J Arm Quad Cortex-A76 2.4/2.0 GHz and Quad Cortex-A55 1.8/1.3 GHz Rockchip RK3588/RK3588J Arm Quad Cortex-A76 2.4/2.0 GHz and Quad Cortex-A55 1.8/1.3 GHz Rockchip RK3588/RK3588J Arm Quad Cortex-A76 2.4/2.0 GHz and Quad Cortex-A55 1.8/1.3 GHz Rockchip RK3588/RK3588J Arm Quad Cortex-A76 2.4/2.0 GHz and Quad Cortex-A55 1.8/1.3 GHz
NPU Up to 6 Tops. Supports: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, etc Up to 6 Tops. Supports: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, etc Up to 6 Tops. Supports: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, etc Up to 6 Tops. Supports: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, etc

Memory
Technology LPDDR4 2112MHz LPDDR4 2112MHz LPDDR4 2112MHz LPDDR4 2112MHz
Capacity Onboard 8 GB LPDDR4, maximum supported is 32 GB Onboard 8 GB LPDDR4, maximum supported is 32 GB Onboard 8 GB LPDDR4, maximum supported is 32 GB Onboard 8 GB LPDDR4, maximum supported is 32 GB
Flash 64 GB eMMC NAND Flash for OS and boot loader 64 GB eMMC NAND Flash for OS and boot loader 64 GB eMMC NAND Flash for OS and boot loader 64 GB eMMC NAND Flash for OS and boot loader

Graphics
HDMI 1 x HDMI 2.0, up to 3821 x 2160 @30Hz 1 x HDMI 2.0, up to 3821 x 2160 @30Hz 1 x HDMI 2.0, up to 3821 x 2160 @30Hz 1 x HDMI 2.0, up to 3821 x 2160 @30Hz
Graphics Engine Arm Mali-G610 MP4 GPU, high-performance OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.2, Vulkan 1.2, etc. Arm Mali-G610 MP4 GPU, high-performance OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.2, Vulkan 1.2, etc. Arm Mali-G610 MP4 GPU, high-performance OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.2, Vulkan 1.2, etc. Arm Mali-G610 MP4 GPU, high-performance OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.2, Vulkan 1.2, etc.
H/W Video Codec
  • Decoder: H.265/VP9 8K @ 60 fps, H.264 8K @ 30 fps, H.263 ,VC-1, VP8, MVC, AV1, MPEG-4/2/1
  • Encoder: H.265/H.264 8K @30 fps, parallel encoder for multi-channel, lower resolution
  • Decoder: H.265/VP9 8K @ 60 fps, H.264 8K @ 30 fps, H.263 ,VC-1, VP8, MVC, AV1, MPEG-4/2/1
  • Encoder: H.265/H.264 8K @30 fps, parallel encoder for multi-channel, lower resolution
  • Decoder: H.265/VP9 8K @ 60 fps, H.264 8K @ 30 fps, H.263 ,VC-1, VP8, MVC, AV1, MPEG-4/2/1
  • Encoder: H.265/H.264 8K @30 fps, parallel encoder for multi-channel, lower resolution
  • Decoder: H.265/VP9 8K @ 60 fps, H.264 8K @ 30 fps, H.263 ,VC-1, VP8, MVC, AV1, MPEG-4/2/1
  • Encoder: H.265/H.264 8K @30 fps, parallel encoder for multi-channel, lower resolution

Ethernet
Chipset 2 x RTL8211FSI, 1 x RTL8119I, 1 x Intel I226 2 x RTL8211FSI, 1 x RTL8119I, 1 x Intel I226 2 x RTL8211FSI, 1 x RTL8119I, 1 x Intel I226 2 x RTL8211FSI, 1 x RTL8119I, 1 x Intel I226
Speed 1 x 2.5Gbps, 3 x 10/100/1000 Mbps 1 x 2.5Gbps, 3 x 10/100/1000 Mbps 1 x 2.5Gbps, 3 x 10/100/1000 Mbps 1 x 2.5Gbps, 3 x 10/100/1000 Mbps
WatchDog Timer
TPM TPM2.0 TPM2.0 TPM2.0 TPM2.0

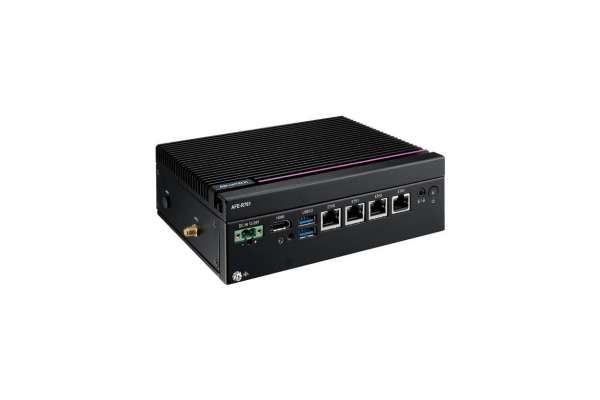

Front I/O
USB
  • 1 x USB3.2 Gen1 by 1 TypeA
  • 1 x USB3.2 Gen1 by 1 TypeA/OTG
  • 1 x USB3.2 Gen1 by 1 TypeA
  • 1 x USB3.2 Gen1 by 1 TypeA/ OTG 4 x USB2.0 TypeA
  • 1 x USB3.2 Gen1 by 1 TypeA
  • 1 x USB3.2 Gen1 by 1 TypeA/ OTG 4 x USB2.0 TypeA
  • 1 x USB3.2 Gen1 by 1 TypeA
  • 1 x USB3.2 Gen1 by 1 TypeA/ OTG
  • 4 x USB2.0 TypeA
Audio 1 x Line out/Mic in 1 x Line out/Mic in 1 x Line out/Mic in 1 x Line out/Mic in
LAN 4 x RJ45 (1x2.5GbE, 3xGbE) 4 x RJ45 (1x2.5GbE, 3xGbE) 4 x RJ45 (1x2.5GbE, 3xGbE) 4 x RJ45 (1x2.5GbE, 3xGbE)
Display 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI
Button 1 x Power Button with LED 1 x Power Button with LED 1 x Power Button with LED 1 x Power Button with LED
DI - 4 x DI w 2500VDC isolation protection (terminal block) -Wet contact: Logic: 0~3VDC(max);Logic 1: 10~30VDC -Dry contact: Logic 0: Shorted to GND; Logic 1: Open (Default) 4 x DI w 2500VDC isolation protection (terminal block) -Wet contact: Logic: 0~3VDC(max);Logic 1: 10~30VDC -Dry contact: Logic 0: Shorted to GND; Logic 1: Open (Default) 4 x DI w 2500VDC isolation protection (terminal block) -Wet contact: Logic: 0~3VDC(max);Logic 1: 10~30VDC -Dry contact: Logic 0: Shorted to GND; Logic 1: Open (Default)
DO - 4 x DO w 2500VDC isolation protection (terminal block) - Output voltage: 5-30VDC - Output capability Sink(NPN): 500mA per channel 4 x DO w 2500VDC isolation protection (terminal block) - Output voltage: 5-30VDC - Output capability Sink(NPN): 500mA per channel 4 x DO w 2500VDC isolation protection (terminal block) - Output voltage: 5-30VDC - Output capability Sink(NPN): 500mA per channel
GMSL - - 4/6 x GMSL via FAKRA -
AHD - 4/6 x AHD Via Wafer box - -

Side I/O
Serial Port
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-485
  • 1 x Debug
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-485
  • 1 x Debug
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-485
  • 1 x Debug
  • 2 x RS-232/485 (Default RS-232, s/w configured)
  • 2 x RS-485
  • 1 x Debug
CAN 2 x CAN FD (5M) 2 x CAN FD (5M) 2 x CAN FD (5M) 2 x CAN FD (5M)

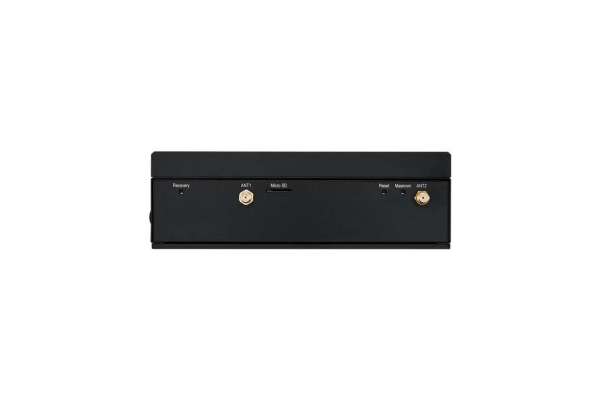

Rear I/O
SD Socket 1 x Micro SD Slot 1 x Micro SD Slot 1 x Micro SD Slot 1 x Micro SD Slot
Button
1 x Reset,
1 x Maskrom,
1 x Recovery
1 x Reset,
1 x Maskrom,
1 x Recovery
1 x Reset,
1 x Maskrom,
1 x Recovery
1 x Reset,
1 x Maskrom,
1 x Recovery

Expansion
Mini PCIe - - - -
SIM Slot 1 x Nano SIM slot 1 x Nano SIM slot 1 x Nano SIM slot 1 x Nano SIM slot
M.2 Socket 1 x E-Key 2230 (PCIe2.1, USB2.0) 1 x B-Key 3052 (SATA/PCIe*, USB3.0) 1 x E-Key 2230 (PCIe2.1, USB2.0) 1 x B-Key 3052 (SATA/PCIe*, USB3.0) 1 x M-Key 2242*/2280 (2 x PCIE3.0)

Power
Power Supply Voltage 12-24V 12-24V 12-24V 12-24V
Connector 2P Phoenix 2P Phoenix 2P Phoenix 2P Phoenix
Power Consumption
  • Typical(Idle mode) 5.65W@12V
  • Max.(Full loading) 11.68W@12V
  • Typical(Idle mode) 5.65W@12V
  • Max.(Full loading) 11.68W@12V
  • Typical(Idle mode) 5.65W@12V
  • Max.(Full loading) 11.68W@12V
  • Typical(Idle mode) 5.65W@12V
  • Max.(Full loading) 11.68W@12V
Power Management AT mode (Default), ATX mode AT mode (Default), ATX mode AT mode (Default), ATX mode AT mode (Default), ATX mode

Environment
Operating Temperature 0 ~ 60°C/-40 ~ 70°C (with air flow 0.7m/s) 0 ~ 60°C/-40 ~ 70°C (with air flow 0.7m/s) 0 ~ 60°C/-40 ~ 70°C (with air flow 0.7m/s) 0 ~ 60°C/-40 ~ 70°C (with air flow 0.7m/s)
Operating Humidity 40°C, 95% relative humidity, non-condensing 40°C, 95% relative humidity, non-condensing 40°C, 95% relative humidity, non-condensing 40°C, 95% relative humidity, non-condensing

Mechanical
Dimensions (W x D) 175 x 120 x 56.7 mm 175 x 120 x 56.7 mm 175 x 120 x 56.7 mm 175 x 120 x 56.7 mm

Operating System

 Linux Debian12 and Android14 Linux Debian12 and Android14 Linux Debian12 and Android14 Linux Debian12 and Android14
Certifications CE EMC/FCC Class B/UKCA/IC/CCC CE EMC/FCC Class B/UKCA/IC/CCC CE EMC/FCC Class B/UKCA/IC/CCC CE EMC/FCC Class B/UKCA/IC/CCC
