Extended T range HDMI High Brightness IP67 MIL-STD-810 RS232

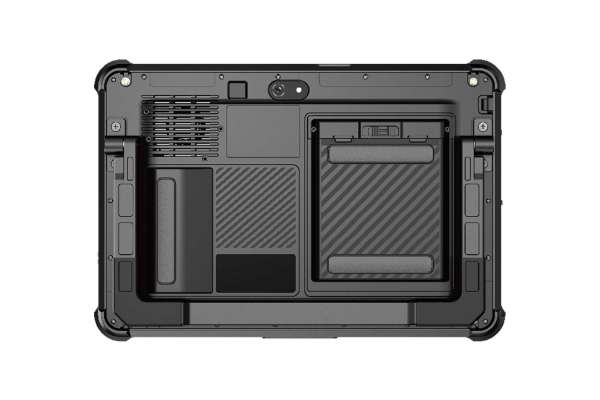

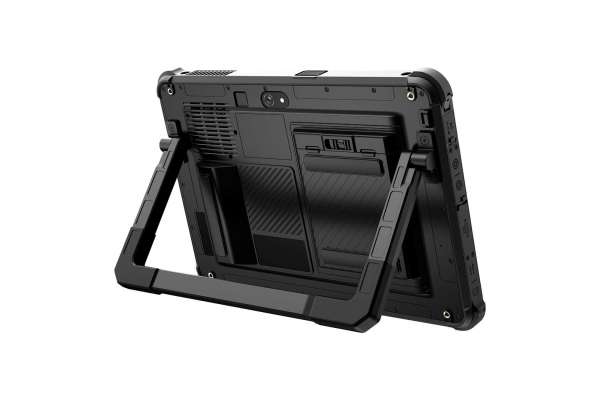

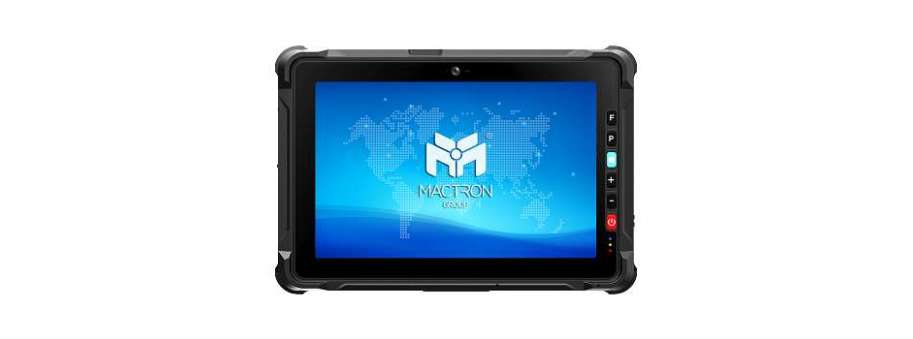

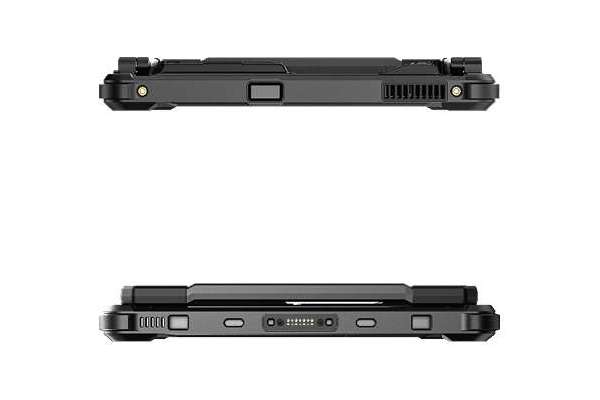

IP67 Rugged High Performance Mobile Tablet PC MACTRON MAS1107

Manufacturer: MACTRON
Facebook Twitter Linkedin Mail
  • 10.95″ Windows System with Intel® Core i5-1235U Processor
  • 10-point Touch Screen supports Touch Screen with Wet Hands and gloves
  • Hot Swappable Dual Battery Design
  • Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GNSS
  • Integrated GigaLAN RJ45 Port and DB9 Serial Port
  • IP67 Waterproof and Dustproof Resistance and MIL-801H Compliant

Additional information

Display
Display Type 10.95" TFT LCD
Resolution 1920x1200
Brightness 550 nits
Touch Panel 10-point touch G+FF, hardness ≥7H,supports touch screen with wet hands,Touch screen with gloves

System
CPU
  • Intel Core Alder Lake i5-1235U 10 cores, 12 threads, 1.3GHz-4.4GHz
  • Intel Core Alder Lake i7-1255U 10 cores, 12 threads, 1.7GHz-4.7GHz (Optional)
GPU Intel® Iris® Xe Graphics eligible
Memory DDR5-4800 MT/s 16G , Up to 48GB(Optional)
Storage M.2 SSD 256GB, Up to 2TB(Optional)
Operating System Windows 10 , Windows 11 , Ubuntu22.04.5
Security Trusted Platform Module (TPM 2.0) , Locker Hole
I/O Ports
  • USB 3.0 Type-C x1
  • USB 3.0 Type-A x1
  • USB 2.0 Type-A x1
  • 3.5mm Audio jack x1
  • RS232 serial port (optional 232/422/485 protocol) x1
  • TF Card (Maximum support 256GB expansion) x1
  • Standard Micro SIM card slot x1
  • RJ45 Gigabit Ethernet Port x 1
  • HDMI x 1
  • DC port 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) x 1
  • POGO PIN 14Pin USB+charger x 1
WiFi WIFI 6
Bluetooth Bluetooth® 5.2 Transmit Distance：10m
4G/5G 4G LTE (Optional 5G)
GPS GPS、Beidou, Galileo、GLONASS
Data Collection
  • NFC Module (Optional)
  • Barcode Scanner Module (Optional)
  • Fingerprint Module (Optional)

Physical
Camera
  • Front Camera: 8.0MP Fixed Focus Camera
  • Rear Camera: 12.0MP Autofocus Camera with Flash
Audio
  • Speaker 2W/4Ω x2
  • MICx1,waterproof rating
Color Black
Dimension 307.5mm x 211.1mm x 44.2mm
Weight 1560g
Buttons
  • Power Button*1
  • Volume Keys*2, Vol+, Vol
  • Custom Keys*2, P key, F key
  • Windows Button*1"
LED Power, Battery, WIFI
Sensors Gravity sensor
Main Battery 11.4V 8300mah High-Voltage Lithium Battery, Removable, Battery Life ≥8h (1080P+50% Brightness)
Sub Battery 11.4V 300mah High-Voltage Lithium Battery, Non-Removable, Battery Life ≥15MIN (1080P+50% Brightness)
Power Adapter 19V-3.42A, DC interface Power Adapter x1
Standard Accessory
  • Hand-Strap x1
  • Stylus x1
Optional Accessory
  • Removable Battery
  • Power Adapter
  • Docking Station
  • Shoulder Strap

Packing List
Accessories 19V-3.42A, DC Interface Power Adapter x1 Hand-Strap x1
Product Dimension 300.5mm x 204.1mm x 23.3mm
Product Weight 1560g

Environment
IP Rating IP67
Drop Test 1.2m drop resistance
Certification CE,FCC / MIL-STD-810H
Operating Temperature -20 °C to 60 °C
Storage Temperature -30 °C to 70 °C
Relative Humidity 95% Non-Condensing
Warranty 2 Years
