IP54 Screen Size 10" Standard T range

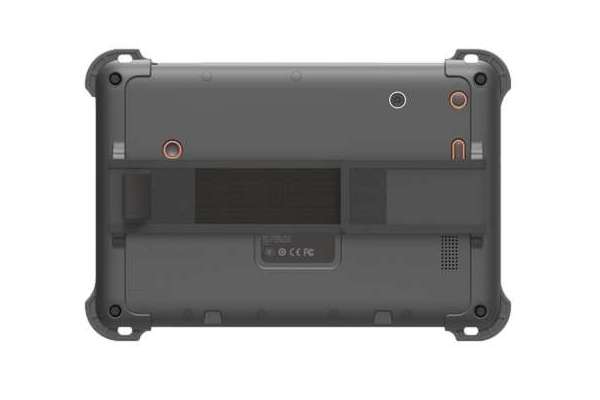

Service Industry Tablet for Retail, Hospitality, and Industrial Applications Advantech AIM-77S

Price and avalability

Partnumber Description Price VAT incl Avalability
AIM-77S-SW00000 Wifi 6E, 4GB/64GB, NFC, BCR, ADP, Std. OS  80 350,5
AIM-77S-SW01000 Wifi 6E, 4GB/64GB, NFC, ADP, Std. OS  74 366,2
AIM-77S-SW11000 Wifi 6E, 4GB/64GB, ADP, Std. OS  72 122,2

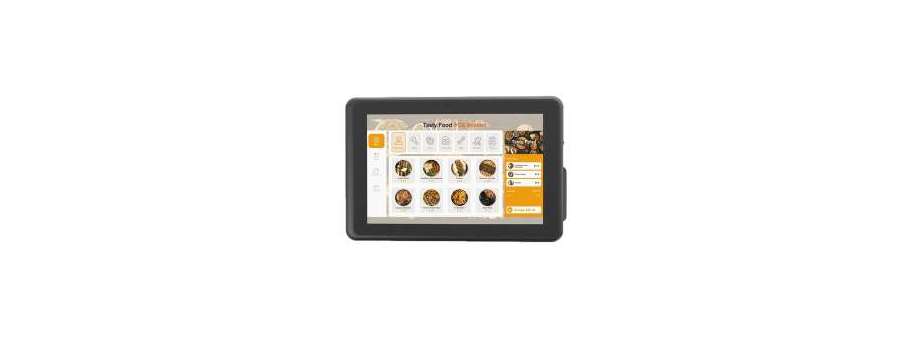

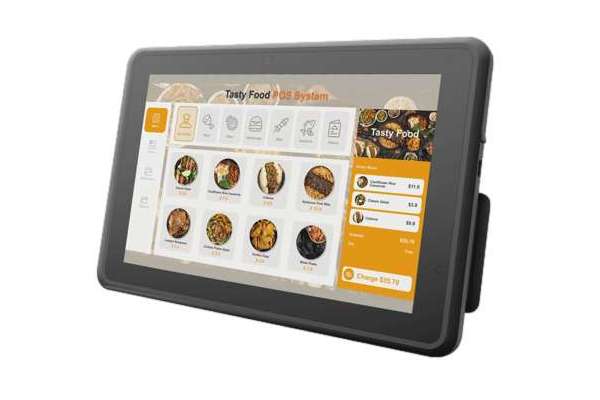

AIM-77S is a 10.1" Android OS industrial grade tablet for Service Industry, such as Retail, Hospitality, and Manufacturing. The highly integrated design with optional features of MSR / NFC / Barcode Scanner, and the expansion flexibility via versatile dockings with USB3.0, RJ45(Ethernet), RJ48(COM Port), RJ11(Cash drawer), make AIM-77S be the ideal choice for service industry applications. In addition, the optimized power delivery design, various accessories, and easy-to-clean/place/remove magnetic expansion port design allow the AIM-77S to achieve good balance between Mobility and Stationary.

  • Rockchip RK3568 with Android 12 OS

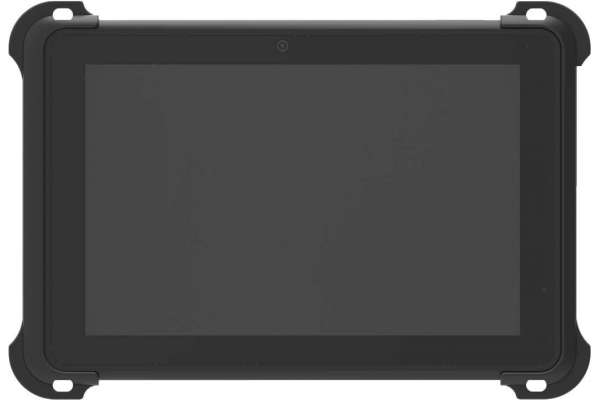

  • 10.1" WXGA, Anti-Glare, Anti-Fingerprint LCD Display with Corning Gorilla Glass 3 scratch-resistant and multi-finger support touchscreen
  • Support Wi-Fi 6E and Bluetooth 5.3 for lower latency, higher speed and larger capacity

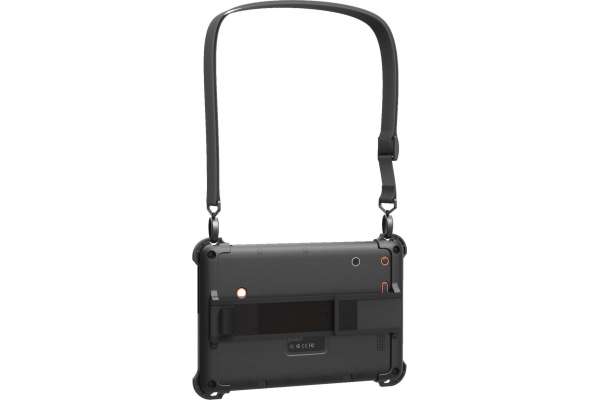

  • IP54 rating and 1.2m drop resistant(with rugged case)
  • Optional embedded MSR / NFC / Barcode Scanner

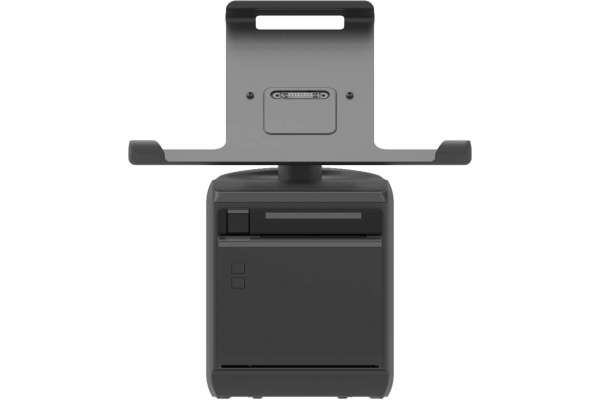

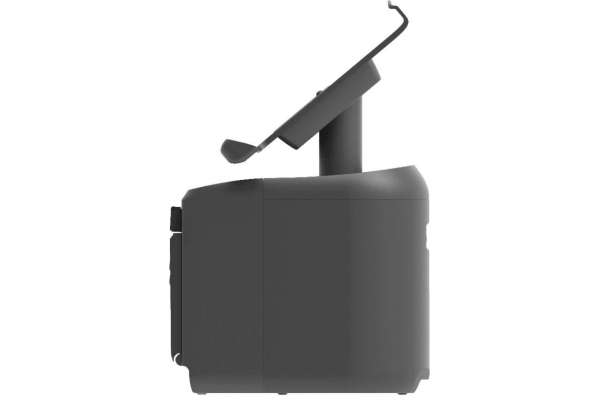

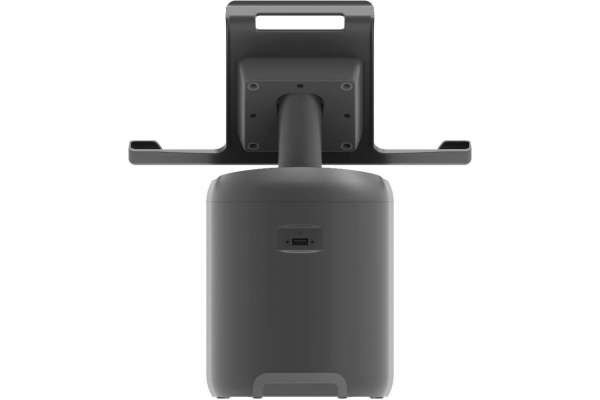

  • Optional magnet dockings for versatile expansion flexibility
  • PD 3.0 Fast charging and long battery life for daily usage
  • Intelligent Power Delivery design for longer battery lifespan in Stationary scenario.
  • Equipped with DeviceOn/iService software for remote device management

Additional information

System

Processor Rockchip RK3568 (Quad-core Cortex-A55 up to 2.0GHz)
Memory 4GB LPDDR4x (Optional: 8GB)
OS Android 12

Storage

eMMC 64GB eMMC5.1 (Optional: 128GB)
microSD Support (Up to 1TB)

Display

Type 10.1" IPS TFT LCD Panel
Resolution WXGA, 1280x800
Brightness 350nits (LCM Typical)
Touch Type 10-point multi-touch P-CAP touch control
Glass Type Corning Gorilla Glass 3

Communication

WLAN Wi-Fi 6E, IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth® v5.3
NFC (Optional) 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa

Connectivity

Standard I/O 1 x USB 3.0 Type C (for Charging and Data)

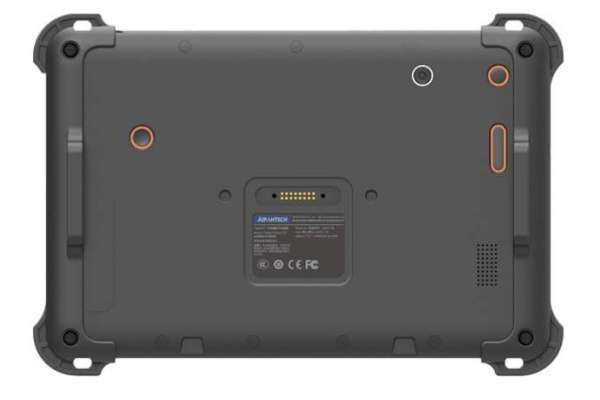

Docking 1 x USB 3.0 16-pin Pogo Connector (for Charging and Data)

Audio

Speaker 1 x Internal Speaker (2W)
Audio Jack 1 x Audio combo jack (combines stereo audio output and mono microphone input)
Microphone 1 x Digital-Microphone

Camera

Front 5.0-megapixel fixed-focus camera
Rear 8.0-megapixel auto-focus camera

Data Collection

Sensors Ambient Light Sensor, G-sensor, Gyroscope + e-Compass, Hall Sensor
Barcode Scanner (Optional) Embedded 1D/2D Barcode Reader
MSR (Optional) Embedded 3 track MSR module
Control Buttons
  • 1 x Power button, 1 x Volume key (Up & Down)
  • 1 x programmable function key (default: Barcode Scanner trigger)

System Indicator

Power/Battery LED
  • System Off: 100% (Green), Charging (Blue)
  • System On: 81% (Green), Charging (Blue), 10% (Blinking Red)

Power System

Input Voltage
  • USB Type C: 45W PD3.0 15V/3A
  • Docking (16pin Pogo): 45W 12V/3.75A
Battery
  • Embedded Li-ion Polymer battery, 2S1P, 7.7V, 4440mAh (34.19Wh)
  • Operating time: up to 8 hours (depending on user scenario)
  • Charging time: 30mins to 50%, 2.5hrs to 100%

Environment

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
IP Rating IP54 (non-MSR SKU)
Humidity 90% at 40°C (non-condensing)
Drop Protection 75cm (with Rugged case: up to 120cm onto plywood)

Physical Characteristics

Dimension (W x D x H) 271 x 180 x 17 (mm)
Weight 885g (non-MSR), 910g (MSR)
Certifications FCC, CE, CB, UL, NCC, BSMI
