Capacity Touch FullHD IP66 Screen 16:9 Screen Size 21" Standard T range

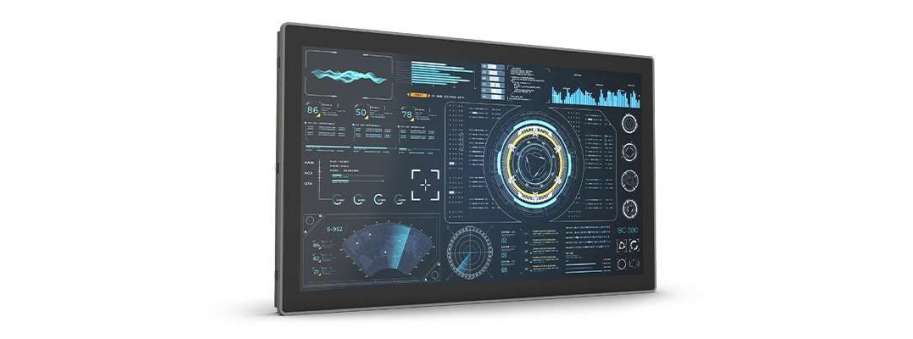

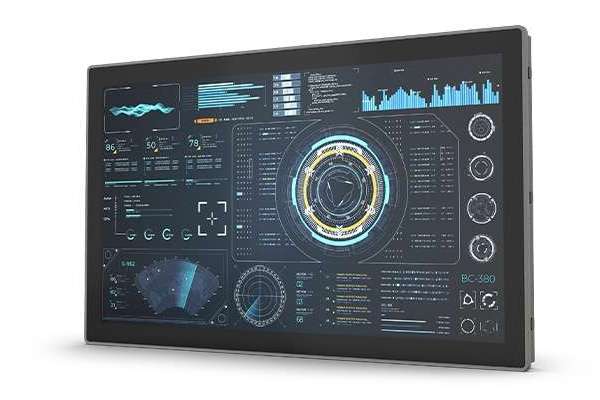

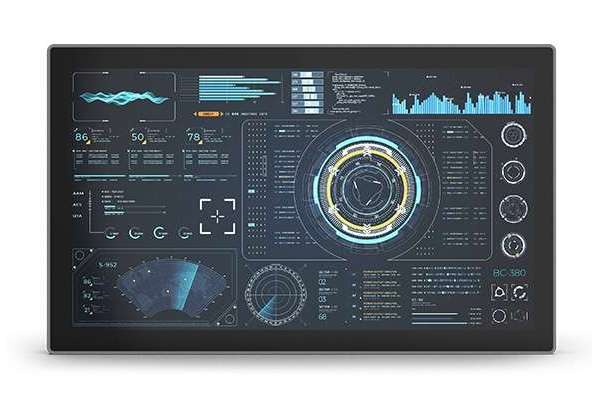

IP66 Slim Bezel Display Module 16:9 with Projected Capacitive Touch & AG Coating Cincoze CV-221

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail
  • 21.5“ Full HD LCD (1920 x 1080) with 16:9 Aspect Ratio
  • Projected Capacitive Touch with Anti-Glare Coating
  • Wide Viewing Angle of 178°/178°
  • Backlight Lifetime up to 50,000 hr
  • Front IP66 Protection
  • Support CDS Technology

The all-new CV-200 Series slim-bezel display module breaks away from the bulky design of traditional industrial displays. Combining high reliability with slim footprint for modern HMI applications, it supports Full HD resolution in sizes from 10” to 21.5”. Powered by Cincoze’s CDS (Convertible Display System) technology, the CV-200 can be configured as panel PCs or used as industrial touch monitors. Its one-piece mechanical design and front-panel IP66 rating, along with P-Cap touch and anti-glare coating, make it ideal for indoor industrial environments with high humidity and bright lighting, delivering durable, reliable, and stylish HMI solutions.

Additional information

Display
LCD Size 21.5” (16:9)
Max. Resolution 1920x1080
Brightness (cd/m2) 300
Contrast Ratio 5000 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.24825 (H) x 0.24825 (V)
Viewing Angle (H-V) 178 / 178
Backlight LED Life Time 50,000 hrs (LED Backlight)

Touch Screen
Touch Type Projected Capacitive
Anti-Glare V
Wet Touch Tracking V

Physical
Dimension ( W x D x H ) 522.4 x 318.3 x 63.4 mm
Weight Information 5.28 kg
Mechanical Construction Die-Casting Flat Surface

Power
Power Consumption 24.8 W (Max.)

Environment
Front Panel Protection IP 66 Compliant
Operating Temperature 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow
Storage Temperature -20°C - 60°C (-4°F to 140°F)
Relative Humidity 90% RH @ 40°C (non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.)
  • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m
  • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles
Industrial Environment

EMC:

- EN/BS/IEC 61000-6-4: 2019 Class A

- EN/BS/IEC 61000-6-2:
Railway

EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only)

- EN 50121-1 : 2017

- EN 50121-3-2: 2016 + A1: 2019
