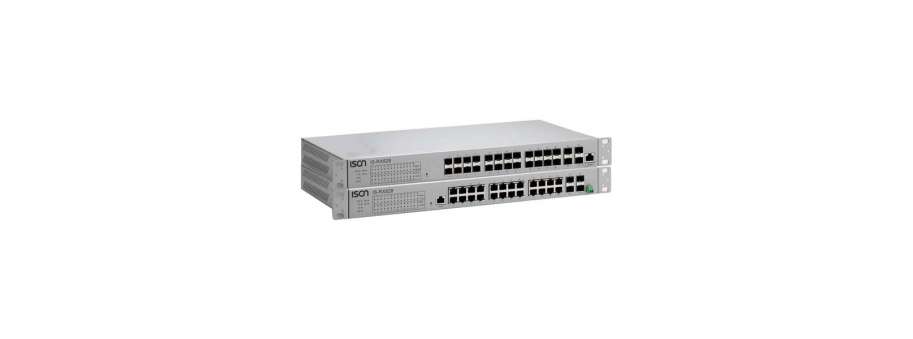

Series 28-port Gigabit 19” Managed Layer 3 Industrial Ethernet Switch ISON IS-RX828
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| IS-RX828-24F-4XG-2A | Промышленный коммутатор ISON Industrial 28-port Rackmount Layer 3 Managed Ethernet Switch with 24 100/1000 FX SFP and 4 x 10G FX SFP Slot wirth -40 degree to 75 degree of operating temperature, Dual AC Power Input | 207 329,0 |
The IS-RX828 Series are Layer 3 full Gigabit Ethernet Switches with 4 10G and 24 Gigabit Ethernet ports, perfect for upgrading an existing network to a full Gigabit speed Infrastructure or access to core layer networks; a full Gigabit network plus 10G uplinks provides higher throughput than legacy Fast Ethernet network. The IS-RX828 Series reduces the response time for timing sensitive applications which may be mix of video, voice, and data stream in the traffic flow. With the powerful S/W and H/W features, the IS-RX828 Series prioritize, partition and optimize user’s network while provide reliable and quality services. The IS-RX828 Series switches are suitable for access level network connection.
- 24 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP (SX/LX/LHX) ports or 28 100 / 1000 Based SFP (SX/LX/LHX) ports
- Support 9K Jumbo frames
- Layer 3 Wired-Speed switching engine
- Layer 2 Line-Speed Switching Fabric, non-blocking
- Layer 3 function, Static routing, RIPv1/RIPv2, OSPF, VRRP
- Layer 3 function, DVMRP, PIM-DM, PIM-SM
- Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control
- Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP
- I.A. Ring, I.A. Chain (Network Load Balancing), 250pcs@20ms
- Support BLP (Bad Link Protection) of I.A. Ring
- Ring Coupling, Multiple Ring, Dual Homing
- Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR
- Multicasting support IGMP v1/v2/v3, proxy & snooping
- IEEE 802.1X Port-based access control / RADIUS Server
- Per VLAN mirroring
- Redundant Power Input 100/240 VAC, 50Hz ~ 60Hz
- Reverse power protection
- SNMP v1/v2c/v3, Trap / Inform, RMON
- Port Power Saving
- -40~75ºC operating temperature
- IP 30 Protection
- 1.5KVHipot, 2KV surge immunity on RJ45 Copper port
- Rugged Fan-less design
Additional information
| Ethernet | |
|---|---|
| Operating Mode | Store and Forward, L2 wire-speed/non-blocking switching engine |
| MAC addresses | 32K |
| Packet Buffer | 16 Mbits |
| Jumbo frame | 14K |
| Switching Fabric / Back Plane | 128Gbps |
| RJ45 Copper ports | |
|---|---|
| Speed | 10/100/1000 Mbps |
| MDI/MDIX Auto-crossover | Support straight or cross wired cables |
| Auto-negotiation/Duplex | 10/100/1000 Mbps speed auto-negotiation; Full & Half Duplex |
| Ethernet Port Protection | 1.5KV VRMS 1minute(Hipot), 2KV surge immunity on RJ45 Copper ports |
| Fiber Ports | |
|---|---|
| Port Types supported | 100/1000/10G Base SFP/SFP+ Slot |
| Filter port connector | LC/RJ45 connector for fiber ports |
| Optimal fiber cable | Typical 50 or 62.5/125 μm for multimode (mm) Typical 8 or 9/125 μm for single mode (sm) |
| Network Redundancy | |
|---|---|
| I.A. Ring / I.A. Chain | Link Loss Recovery < 20ms@250pcs |
| Network Topology Optimize Functions | Ring Coupling, Multiple-Ring, Dual-Homing |
| Spanning Tree Protocol | IEEE 802.1D/1w/1s, STP/RSTP/MSTP |
| Port Trunk / LACP | Static Trunk or LACP (Link Aggregation Control Protocol) |
| Layer 3 Routing | |
|---|---|
| Layer 3 routing functions | static routing, RIPv1/RIPv2, OSPF, VRRP |
| Layer 3 routing functions | DVMRP, PIM-DM, PIM-SM |
| Bridge, VLANs, Protocols | |
|---|---|
| Flow Control | IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex) |
| Max VLANs | 2048 |
| VLAN Types | Port-Based VLAN, Private VLAN, MAC-Based VLAN IEEE 802.1Q tag-based VLAN, IP Subnet-Based VLAN, Voice VLAN IEEE 802.1ad Double Tagging (QinQ), Protocol-Based VLAN |
| Multicast protocols | IGMP v1, v2, V3, up to 512 multicast groups IGMP snooping, querying, MVR, Immediate leave and leave proxy Throttling and filtering |
| LLDP | IEEE 802.1ab LLDP / LLDP-MED |
| Traffic management & QoS | |
|---|---|
| Priority | IEEE 802.1p QoS, Ingress / Egress, QCL |
| Number of queues per port | 8 |
| Scheduling schemes | SPQ, WRR, SPQ+WRR |
| Traffic Shaper | Port-based shaping |
| Security | |
|---|---|
| Port Security | IP and MAC-based Access Control/Filter, Auth User / Privilege Level Control IEEE 802.1X Authentication Network Access Control / RADIUS Server |
| Storm Control | Multicast / Broadcast / Flooding Storm Control / Port Access Control / Limiters |
| Management | |
|---|---|
| User Management Interfaces | Cisco-Like CLI (Command Line Interface) Web-based Management, Windows Utility for quick startup SNMP V1, V2c, V3 USM, RMON, Trap / Inform / Retry, Telnet (5 sessions) |
| Management Security | HTTPs, SSH, Access Management |
| Upgrade & Restore | TFTP for Configuration Import / Export TFTP for Firmware Upgrade |
| Diagnostic | Syslog, Level Info / Warning / Error, Detailed Syslog Port Mirror, Per VLAN mirroring, CPU Load Monitor, Traffic Counter ICMP Ping |
| MIBs | RFC 1757RMON 1, 2, 3, 9; RFC 2674 Q-Bridge MIB RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2233 IF MIB |
| DHCP | Client Mode |
| NTP/SNTP | YES |
| System Status | Device info/status; Ethernet port status |
| Green Ethernet | Port Power Savings |
| Layer 4 Security | Policy / Profile-based Access Control List |
| Protocols & Standards |
|---|
| IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D/w/s, IEEE 802.1Q/p, IEEE 802.1ab, IEEE 802.1X, IEEE 802.3ad LLDP, IPv4/IPv6, SNMP v1/v2c/v3, DHCP Option 82, BootP, TFTP, ARP, RARP, Telnet, Syslog, Flow Control, Back Pressure, ICMP, UPD, TCP |
| Power | |
|---|---|
| Power Input | Redundant Power Input, AC/DC Input, IEC Connector |
| Input Voltage Range | 100/240 VAC, 50Hz~60Hz |
| Reverse power protection | YES |
| Transient protection | >15, 000 Watts peak |
| Power Consumption | 25 Watt |
| Indicators | |
|---|---|
| Power status indication | Power Input status |
| Ethernet port indication | Link & speed |
| Environmental and Compliances | |
|---|---|
| Operating Temperature | -40~75ºC (Cold startup at -40ºC) |
| Storage Temperature | -40~85ºC |
| Humidity | 5~95% (Non-Condensing) |
| Vibration, shock, free fall | IEC-60068-2-6, -27, -32 |
| Certification Compliance | CE, FCC |
| Electrical safety | CE |
| EMC | FCC Part 15, CISPR 22 (EN55022) Class A IEC-61000-4-2, -3, -4, -5, -6 (Level 3) |
| RoHS & WEEE | RoHS (Pb free) and WEEE Compliant |
| MTBF | >220,000 HRs |
| Mechanical | |
|---|---|
| Protection | IP30 |
| Dimension | 43.5mm x 570mm x 250mm(LxWxD) |
| Weight | 3.2 kg |
| Installation | 19” Rack mount |
| Relay Output | 1A, 30V, Normal Open |
