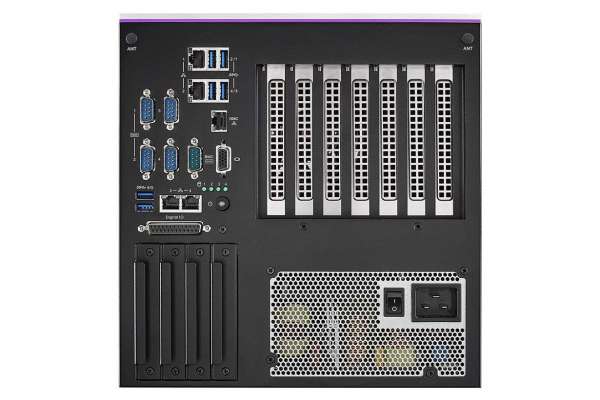

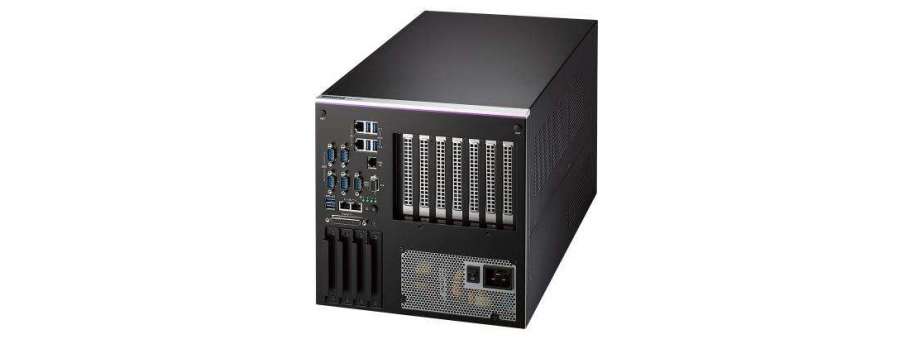

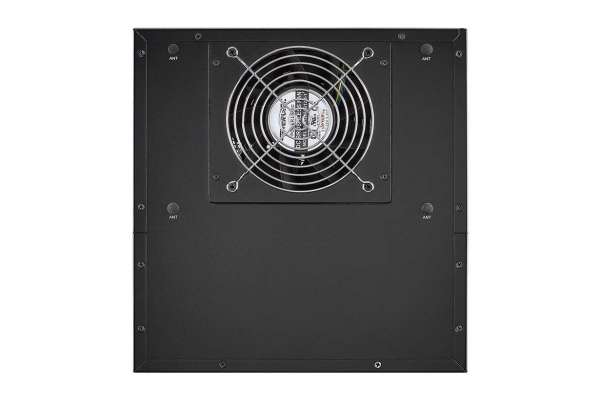

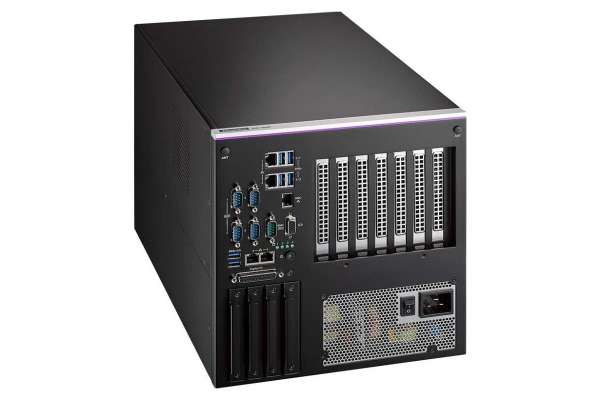

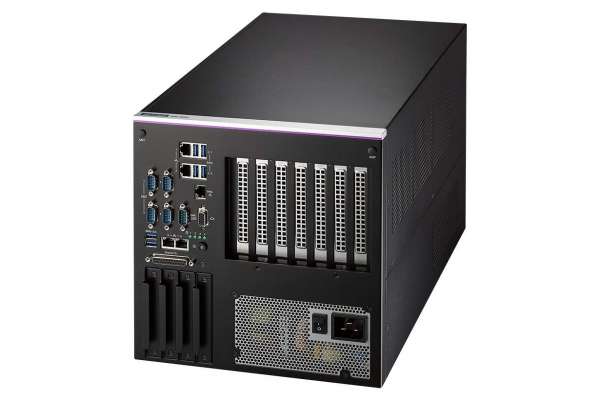

Intel® Xeon® D-1700 Series Extreme AI Edge Server Support Dual Graphic Cards Advantech AIR-500D

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
AIR-500D-T10A1 Intel Xeon D-1746TER, 10 core  248 186,0
AIR-500D-T40A1 Intel Xeon D-1735TR, 8 core  205 754,0
AIR-500D-T50A1 Intel Xeon D-1715TER, 4 core  152 715,0
AIR-500D-T10A2 Intel Xeon D-1746TER 10 core Z2 stepping  258 794,0
AIR-500D-T40A2 Intel Xeon D-1735TR 8core Z2 stepping  220 606,0
AIR-500D-T50A2 Intel Xeon D-1715TER 4 core Z2 stepping  172 870,0
  • Intel® Xeon® D-1700 series processor
  • 4x DDR4 SO-DIMM sockets support ECC/nonECC memory up to 128GB
  • Support Dual PCIe x16 400W High performance GPU cards
  • Rich storage with 4x 2.5” SATAIII SSD RAID 0/1 support
  • Versatile expansions with PCIe x1/x4/x16, M.2 B key and E key support
  • Built-in 1200W power supply for max. 800W GPU power consumption
  • IPMI 2.0-compliant management with reliability and security enhancements
  • Advantech WISE-DeviceOn containing remote control, edge AI Apps management and OTA updates
  • Powerful edge server solution for AI training, advanced data analysis with domain focus edge cloud deployment

Additional information

Processor System
CPU Intel Xeon D-1746TER Intel Xeon D-1735TR Intel Xeon D-1715TER
Base Frequency 2.0 GHz 2.2 GHz 2.4 GHz
Max. Turbo Frequency 3.1 GHz 3.4 GHz 3.5 GHz
L3 Cache 15 MB 15 MB 10 MB
Core Number 10 8 4
TDP 67W 59W 50W
Chipset N/A N/A N/A
BIOS AMI EFI 512Mbit AMI EFI 512Mbit AMI EFI 512Mbit

Memory
Technology Up to 4x 2666/2933MHz DDR4 ECC/non-ECC SO-DIMM Up to 4x 2666/2933MHz DDR4 ECC/non-ECC SO-DIMM Up to 4x 2666/2933MHz DDR4 ECC/non-ECC SO-DIMM
Max. Capacity 128 GB 128 GB 128 GB
Socket 4 x 260-pin SO-DIMM 4 x 260-pin SO-DIMM 4 x 260-pin SO-DIMM

Ethernet
LAN 1, 2, 3, 4 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan

Others
Watch dog Timer 255-level timer interval, setup by software 255-level timer interval, setup by software 255-level timer interval, setup by software
TPM TPM 2.0 (Support by optional AMO-I029) TPM 2.0 (Support by optional AMO-I029) TPM 2.0 (Support by optional AMO-I029)

I/O Interface
Serial Port 4 x RS-232/422/485 port with auto flow control 4 x RS-232/422/485 port with auto flow control 4 x RS-232/422/485 port with auto flow control
USB 6 x USB 3.0 6 x USB 3.0 6 x USB 3.0
VGA 1 x VGA via Aspeed AST2500 BMC 1 x VGA via Aspeed AST2500 BMC 1 x VGA via Aspeed AST2500 BMC
Others 1 x 16bit DIO, 1 x GbE Management port, 1 x Console port 1 x 16bit DIO, 1 x GbE Management port, 1 x Console port 1 x 16bit DIO, 1 x GbE Management port, 1 x Console port

Expansions
M.2 B Key 1 x 2230/2242/2280/3030/3042/3052 support SIM holder #1 1 x 2230/2242/2280/3030/3042/3052 support SIM holder #1 1 x 2230/2242/2280/3030/3042/3052 support SIM holder #1
M.2 E Key 1 x 2230 for WiFi Module #1 1 x 2230 for WiFi Module #1 1 x 2230 for WiFi Module #1
Add-on Card Slot*
  • 1 x PCIe x1, Max. card size support (H x L): 111mm x 167.6mm
  • 1 x PCIe x4, Max. card size support (H x L): 111mm x 312mm
  • 2 x PCIe x16 (signal PCIe x8), Max. card size (H x L x W): 125mm x 320mm x 2-slots *If only 2 PCIe x16 GPU cards installation, Max. card size (H x L x W): 125mm x 320mm x 3-slots
  • 1 x PCIe x1, Max. card size support (H x L): 111mm x 167.6mm
  • 1 x PCIe x4, Max. card size support (H x L): 111mm x 312mm
  • 2 x PCIe x16 (signal PCIe x8), Max. card size (H x L x W): 125mm x 320mm x 2-slots *If only 2 PCIe x16 GPU cards installation, Max. card size (H x L x W): 125mm x 320mm x 3-slots
  • 1 x PCIe x1, Max. card size support (H x L): 111mm x 167.6mm
  • 1 x PCIe x4, Max. card size support (H x L): 111mm x 312mm
  • 2 x PCIe x16 (signal PCIe x8), Max. card size (H x L x W): 125mm x 320mm x 2-slots *If only 2 PCIe x16 GPU cards installation, Max. card size (H x L x W): 125mm x 320mm x 3-slots

Storage
Storage 4 x 2.5" SATAIII Swappble SSD (Max Height 15mm), support RAID 0/1 4 x 2.5" SATAIII Swappble SSD (Max Height 15mm), support RAID 0/1 4 x 2.5" SATAIII Swappble SSD (Max Height 15mm), support RAID 0/1

Software Support
Microsoft Windows Windows Server 2019 64bit, (By project) Windows Server 2019 64bit, (By project) Windows Server 2019 64bit, (By project)
Linux Ubuntu Desktop 20.04 LTS Ubuntu Desktop 20.04 LTS Ubuntu Desktop 20.04 LTS

Power Requirements
Power Type ATX ATX ATX
Power Input Voltage 100-240V AC 100-240V AC 100-240V AC
Power Adapter 1200W power supply built-in 1200W power supply built-in 1200W power supply built-in

Power Consumption (CPU/Memory Only)
Typical 79.2 73.7 56.1
Max 116.6 116.6 82.5

Mechanical
Dimensions (W x H x D) 260 x 270 x 399 mm 260 x 270 x 399 mm 260 x 270 x 399 mm
Weight 10.6 kg 10.6 kg 10.6 kg

System Management
IPMI Aspeed AST2500 BMC IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2500 BMC IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Environment
Operating Temperature -10 ~ 50 °C w/ 0.7 m/s airflow (with extended temp peripherals) -10 ~ 50 °C w/ 0.7 m/s airflow (with extended temp peripherals) -10 ~ 50 °C w/ 0.7 m/s airflow (with extended temp peripherals)
Storage Temperature -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C
Relative Humidity 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing)
EMC CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI
Safety CB(62368), UL(62368), CCC, BSMI CB(62368), UL(62368), CCC, BSMI CB(62368), UL(62368), CCC, BSMI
