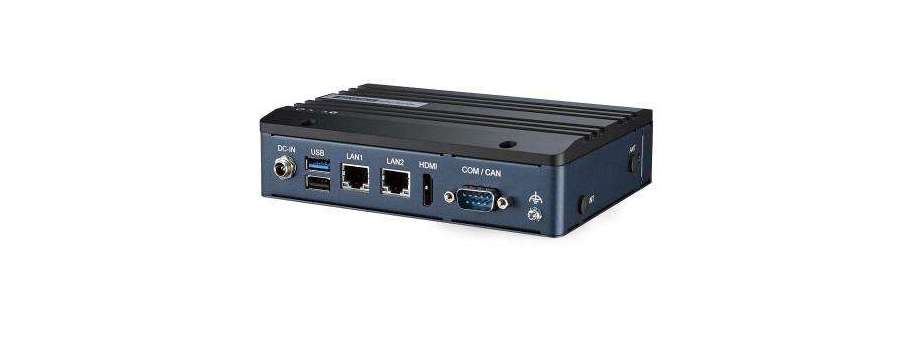

AI Box Computer Advantech EPC-R3720

NXP i.MX8M Plus Cortex®-A53 Edge AI RISC-based Box Computer Advantech EPC-R3720

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
EPC-R3720IQ-ALA200	NXP A2 i.MX8MPlus Edge AI Box Computer	38 636,3
EPC-R3720IQ-ALA220	NXP A2 i.MX8MPlus Edge AI Box Computer	38 954,0
EPC-R3720IQ-ALA240	NXP A2 i.MX8MPlus Edge AI Box Computer	38 247,6
EPC-R3720IQ-ALA260	NXP A2 i.MX8MPlus Edge AI Box Computer	40 185,6

• NXP i.MX8M Plus Cortex®-A53 Quad Core 1.6GHz
• On-board LPDDR4 6 GB, 4000MT/s memory
• HDMI up to 3840 x 2160 at 30Hz resolution
• Dual GbE LAN, 1 USB2.0 and 1 USB3.2 Gen 1
• 1 Micro SD Socket & 1 Nano SIM Slot
• 1 mini-PCIe for 3G/4G, 1 M.2 2230 Key E Slot
• Yocto Linux and Android
• 4 Kinds of Rear I/O for Each Vertical Focus: IEM, Self Service, Automation and Networking

Additional information

Processor System
CPU	NXP i.MX8M Plus Cortex®-A53 Quad 1.6 GHz
Memory
Technology	LPDDR4
Capacity	6 GB On-board
Flash	16 GB On-board eMMC Flash for OS and 8 MB QSPI NOR Flash for board information
Graphics
HDMI	1 x HDMI 2.0a, up to 3840 x 2160 at 30Hz
Graphics Engine	GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan and open CL 1.2 FP
H/W Video Codec	Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/High Encoder: 1080p60 AVC/H.264, HEVC/H.265
Ethernet
Chipset	NXP i.MX8M Plus integrated RGMII
Speed	2 10/100/1000 Mbps
Watchdog Timer
Watchdog Timer	1~6553s, power on/off 4s

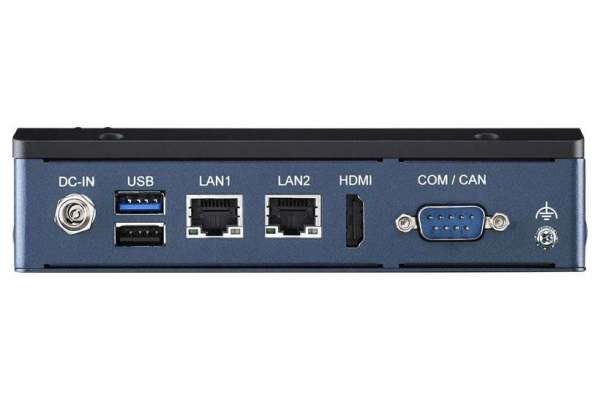

Front I/O
USB	1 x USB3.2 Gen 1 Type A, 1 x USB 2.0 Type A
GbE	2 x RJ45 for GbE
COM/CAN	1 x DB9 for RS-232/422/485 and 1 x CAN-FD

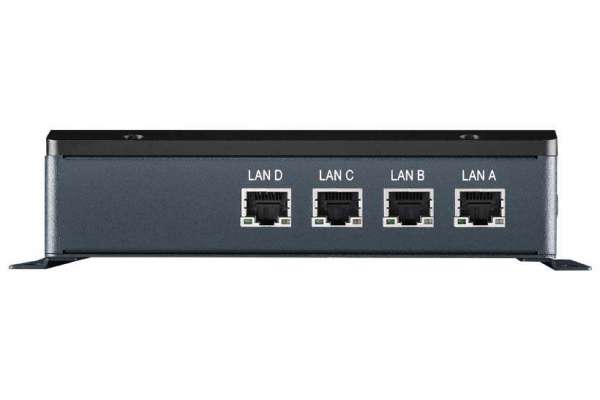

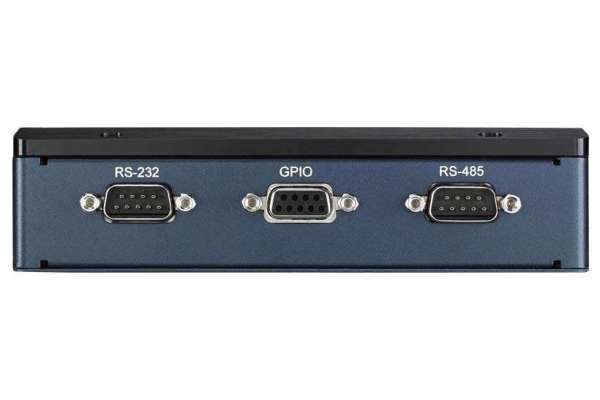

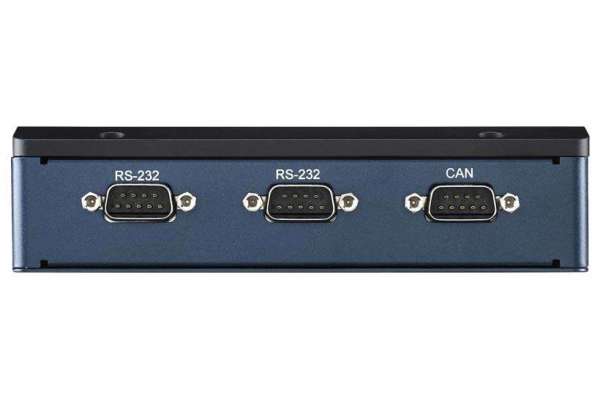

Rear I/O	UIO-4030 1 x RS-485, 1 x 2 wires RS-232 4 x DIs, 4 x DOs ( for EPC-R3720IQ-ALA200) UIO-4032 2 x 2 wires RS-232 1 x GbE, 2 x USB 2.0 (for EPC-R3720IQ-ALA220) UIO-4034 2 x 2 wires RS-232 1 x CAN Bus 2.0B (for EPC-R3720IQ-ALA240) UIO-4036 4 x GbE (Hub) (for EPC-R3720IQ-ALA260)
Expansion
Full-Size Mini PCIe	1 Full Size Mini-PCIe Slot (USB Signal Only)
M.2 Micro	1 M.2 2230 Key E Slot (USB/PCIe/SDIO/UART/I2S)
SD Socket	1 Micro SD Socket
SIM	1 Nano SIM Slot
Antenna Holes	4
Power
Power Supply Voltage	+12V
Power Type	Lockable DC-Jack
Power Consumption	9.2W
Environment
Operating Temperature	-40 ~ 70 °C
Operating Humidity	5% ~ 95% relative humidity, non-condensing
Mechanical
Dimensions	174 x 108 x 25 mm

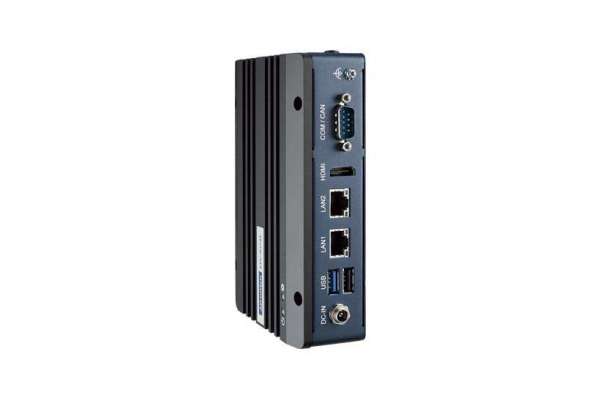

Mounting	Wall mount, DIN Rail mount
Weight	750g
Operating System
Linux	Yocto
Android	Android
Certifications	CE/FCC Class B/CCC/BSMI
