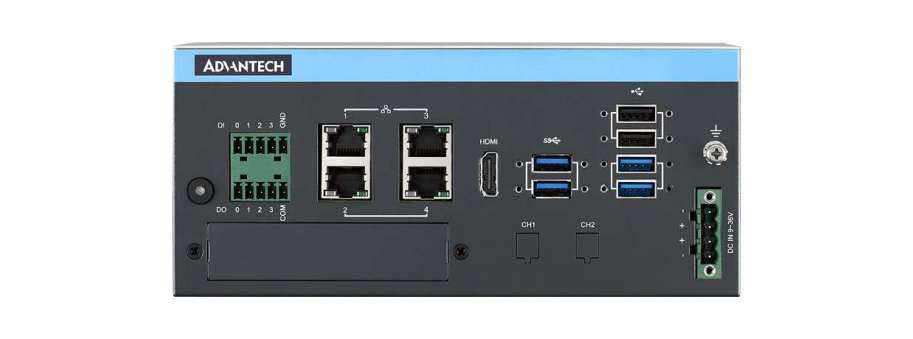

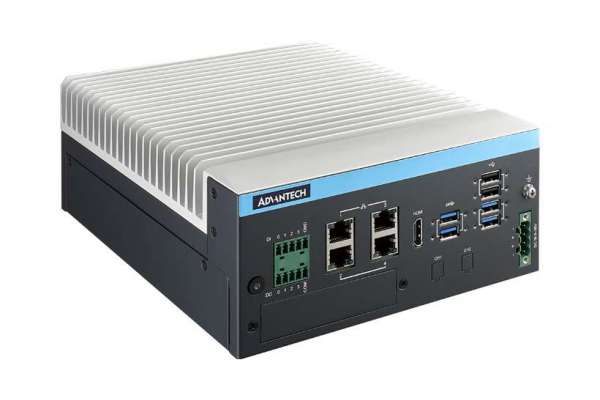

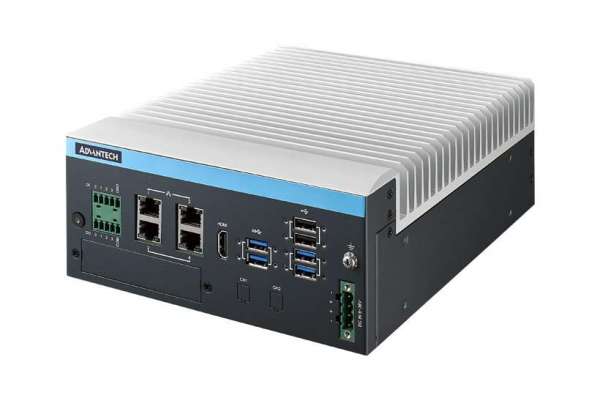

AI Inference System Based on NVIDIA® Jetson AGX Orin™ with 4 x GbE Advantech MIC-733-AO
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MIC-733-AO5A1 | Компактний комп'ютер Advantech MIC-733 NVIDIA AGX ORIN_32G system | 184 357,0 | |
| MIC-733-AO6A1 | Компактний комп'ютер Advantech MIC-733 NVIDIA AGX ORIN_64G system | 263 745,0 |
- Compact fanless design
- Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- Supports 4 x GbE (optional PoE), 4 x USB 3.2 Gen 2 (10 Gbit/s)
- Supports 2 x mPCIe, 2 x Nano SIM slots
- Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
Additional information
| MIC-733-A05A1 | MIC-733-A06A1 | |
Processor |
||
| NVIDIA Jetson Series | AGX Orin 32G | AGX Orin 64G |
| CPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 | 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 930 MHz | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores] Maximum Operating Frequency: 1.3GH |
| Al Performance Reference | Up to 200 TOPs | Up to 275 TOPs |
| Memory | 32GB 256-bit LPDDR5 DRAM | 64GB 256-bit LPDDR5 DRAM |
| I/O | ||
| Ethernet | 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at) | 4 x 10/100/1000 Mbps (Optional PoE support, IEEE 802.3af/at) |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB |
|
|
| Digital I/O | 4-ch DI, 4-ch DO | 4-ch DI, 4-ch DO |
| 4-ch DI, 4-ch DO | 1 x Power ON/OFF Button | 1 x Power ON/OFF Button |
| Serial Ports | 2 x RS-232/422/485 (On-board pin header) | 2 x RS-232/422/485 (On-board pin header) |
| OTG USB | 1 x Micro USB | 1 x Micro USB |
Expansion |
||
| iModule (Optional) | 1 x PCIe x8 (MIC-75M10-00A2) | 1 x PCIe x8 (MIC-75M10-00A2) |
| Mini PCIe | 2 x mPCIe (Signal: PCIe+USB) | 2 x mPCIe (Signal: PCIe+USB) |
| SIM | 2 x Nano SIM slots | 2 x Nano SIM slots |
| M.2 | 1 x M.2 3052 (B-Key, Signal: USB) | 1 x M.2 3052 (B-Key, Signal: USB) |
| TPM (Optional) | 1 x TPM 2.0 | 1 x TPM 2.0 |
| GMSL (Optional) | 2-ch GMSL2.0 with FAKRA connectors | 2-ch GMSL2.0 with FAKRA connectors |
| iDoor (Optional) | 1 x iDoor bracket reserve | 1 x iDoor bracket reserve |
Storage |
||
| M.2 | 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) | 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) |
| SD Card | 1 x Micro SD slot | 1 x Micro SD slot |
Power |
||
| Mode | AT/ATX (Default AT) | AT/ATX (Default AT) |
| Input Voltage | 9 ~ 36 VDC, 16-4A | 9 ~ 36 VDC, 16-4A |
Environment |
||
| Operating Temperature | 0 ~ +60 °C with 0.7 m/s airflow (MaxN mode) | 0 ~ +60 °C with 0.7 m/s airflow (MaxN mode) |
| Operating Humidity | 95% @ 40 °C (non-condensing) | 95% @ 40 °C (non-condensing) |
| Vibration | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 10G / 11 ms | 10G / 11 ms |
Mechanical |
||
| Dimensions (W x D x H) |
Core Module: 192 x 230 x 87 mm (7.55" x 9.05" x 3.43") Plus MIC-75M10: 192 x 230 x 111 mm (7.55" x 9.05" x 4.37") |
Core Module: 192 x 230 x 87 mm (7.55" x 9.05" x 3.43") Plus MIC-75M10: 192 x 230 x 111 mm (7.55" x 9.05" x 4.37") |
| Weight | 4.5 kg (9.9 lb) | 4.5 kg (9.9 lb) |
| Installation | Desktop / Wall mount | Desktop / Wall mount |
BSP |
||
| Jetpack | Above 5.0 | Above 5.0 |
| Certifications | UL/CB/CE/FCC/BSMI/CCC (No RED certification) | UL/CB/CE/FCC/BSMI/CCC (No RED certification) |
