Edge intelligent industrial gateway NXP i.MX8M Plus Corter-A53 Advantech EPC-R5710
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EPC-R5710NQ-BLA1E | EPC-R5710,NXP 8M PLSU,4GB LPDDR4,16GB EMMC,0-50? | 35 316,1 | |
| EPC-R5710IQ-XLA1E | EPC-R5710,NXP 8MP,2GB LPDDR4,16GB EMMC,-40-70? | 32 864,7 | |
| EPC-R5710IQ-BLA1E | EPC-R5710,NXP 8MP,4GB LPDDR4,16GB EMMC,-40-70? | 34 006,5 | |
| EPC-R5710IQ-ALA1E | EPC-R5710,NXP 8MP,6GB LPDDR4,16GB EMMC,-40-70? | 36 100,6 |
Advantech EPC-R5710 is an AI edge intelligent industrial gateway integrating NXP's high performance of video coding/decoding and AI function. It can provide 2.3-28.3 TOPS NPU AI computing power, and support multiple network ports, a variety of industrial interfaces and storage, as well as wireless technologies including 5G/4G,Wi-Fi5/6. It also supports 8-way MIC array to realize audio and video AI analysis. Integrated cloud collaboration functions.EPC-R5710 supports a variety of PLC data acquisition and industrial protocol conversion. With its high performance and high quality, it is widely used in AI video surveillance, machine vision and industrial data acquisition applications in the fields of security, smart city, smart transportation, smart factory, energy and power.
- NXP i.MX 8M PLUS 4xA53@1.8GHz
- Integrate 2.3 TOPS NPU and extend 8-26 TOPS AI card
- 4kP30,1080p60 HEVC, H.264, VP9, VP8 decoding
- 1080p60 H.265, H.264 encoding
- 1xHDMI2.0
- 5xGbE LAN, 1xGbE Fiber
- USB3.0,USB2.0,RS232,RS485,CAN FD,SATA,SD
- 8 Channels Mic Array
- Support AI card/5G/4G/GPS/ Wi-Fi 5/Wi-Fi6/BT
- Support TPM,TCM
- Linux and, Andriod
- Embeded DeviceOn, DeviceOn.CommBridge
Additional information
Processor |
|
| CPU/GPU | NXP i.MX 8M Plus Cortex-A53 Dual/Quad Core (up to 1.8GHz) ,GPU GC7000UL |
| NPU | 2.3 TOPS Neural Network performance, extend 8-26 TOPS AI card |
| MCU | 1 x Arm Cortex –M7 core |
Memory |
|
| Technology | LPDDR4 |
| Capacity | 2GB/4GB/6GB on board |
| Flash | 16/32GB EMMC NAND Flash for OS and 8MB SPI NOR Flash for boot loader |
Graphics |
|
| HDMI | 1 x HDMI2.0, 1920x1080 |
| Graphics Engine | GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s, OpenVG 1.1, Open GL ES3.1, Vulkan, and Open CL 1.2 FP. |
| H/W Video Codec | Decoder: H.265, H.264, VP8/9 1080p Encoder:H.264, VP8 1080p |
Ethernet |
|
| Ethernet | 5 x 10/100/1000Mbps (route/switch), 1 x 1G FSP fiber |
| WatchDog Timer | |
| WatchDog Timer | 1~6553s, default 60s, power on/off 4s |
RTC |
|
| RTC | Support |
TPM/TCM |
|
| TPM/TCM | Support |

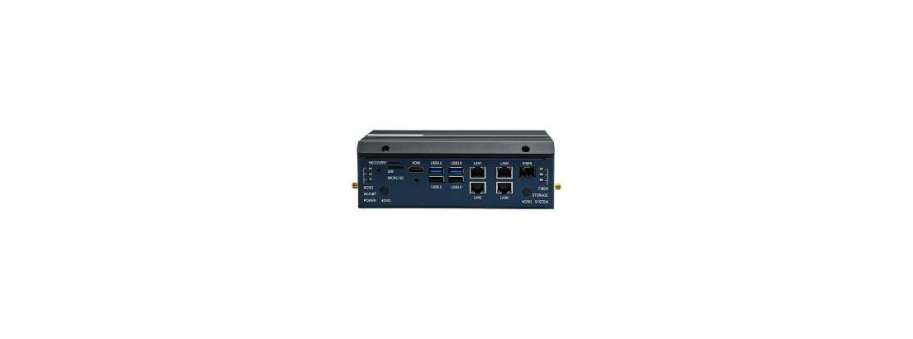

Front I/O |
|
| Ethernet | 5 x 10/100/1000Mbps, 1 x 1G FSP fiber |
| USB | 2 x USB3.0 type A host, 2 x USB2.0 type A host |
| HDMI | 1 x HDMI2.0, 1920x1080 |
| Micro SD | 1 x Micro SD socket |
| SIM | 1 x standard SIM socket |

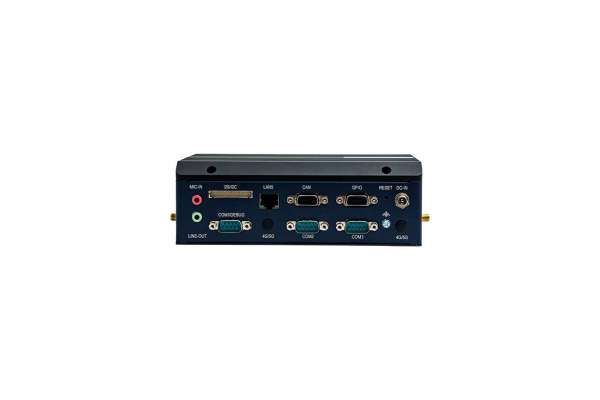

Rear I/O |
|
| Audio | 1 x Mic , 1 x Line out, |
| MIC Array | 2 x I2S+1xI2C, support 8 channels MIC array (Digital or analog) |
| CAN | 1 x CAN FD |
| Serial Port | 2 x RS232/RS422/RS485, 1 x 2-wire RS232 or debug port (default:R232) |
| GPIO | 5 |
Indicator |
|
| LED | 6 Green LED for power, system, storage, 5G,4G,Wi-Fi and fiber status |
Expansion |
|
| Mini PCIe | 1 x mini PCIe slot (only USB2.0 signal for 4G/GPS) |
| M.2 E Key | 1 x M.2 E Key slot (for WiFi5/WiFi6, BT and 8-26 TOPS AI card) |
| M.2 B Key | 1 x M.2 B KEY (USB3.0 for 5G) |
| SATA | 1 x SATA2.0 Header (2.5 inch SSD) |
| Antenna Holes | 8 (5G/4Gx4 & WIFI/BTx2&BTx1&GPSx1) |
Mechanical |
|
| System | 210 x 120 x 62.6 mm or 220 x 120 x 77 mm (for AI card) |
| Mounting | Wall mount |
Power |
|
| Power supply | 12V 3A DC-in |
Environment |
|
| Operating temperature | 0-50°C, -40~70°C |
| Operating Humidity | 5 ~ 95% relative humidity, non-condensing |
| Operating System | Linux, Android |
| Certifications | CCC/CE/FCC Class B |
