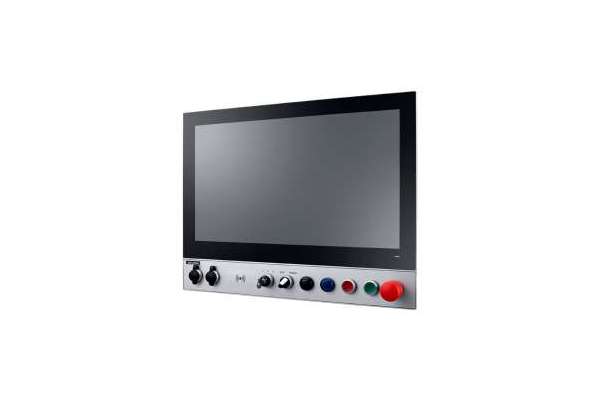

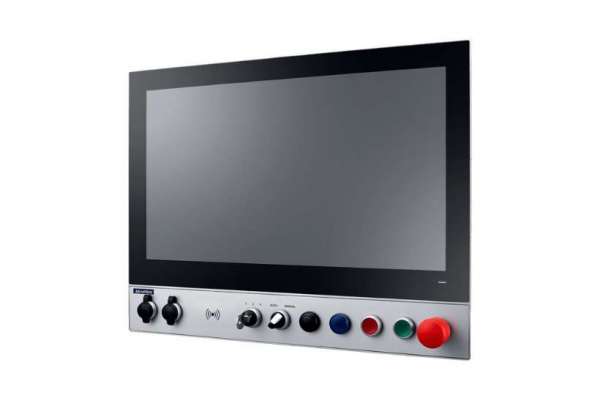

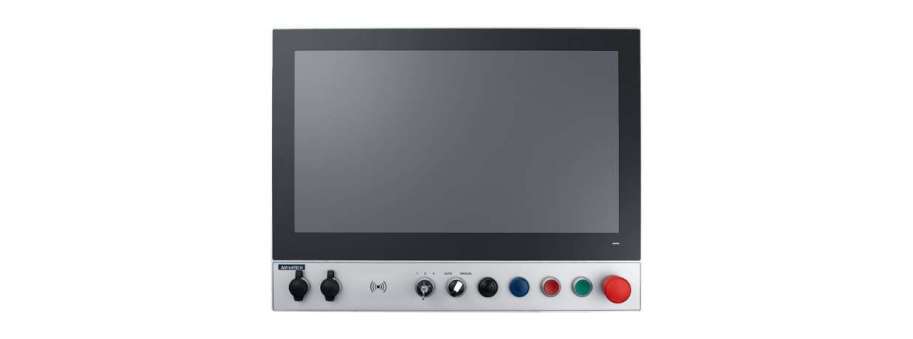

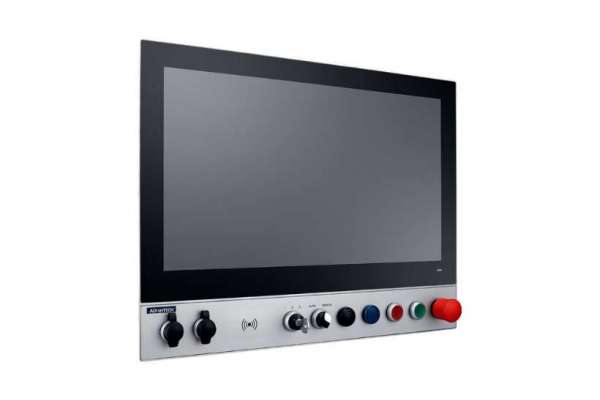

Button-integrated HMI Advantech SPC-821(M) V2

21.5" Full HD Standalone HD Base-T Multi-Touch Industrial Monitor Advantech SPC-821(M) V2

• 15.6"/21.5" Full HD TFT LED LCD display
• 16:9 widescreen with P-CAP multi-touch control
• Support HD Base-T long distance video streaming
• Front-facing LED indicators show operating status
• Silicone-free enclosure with all-round IP65-rated protection
• Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
• Supports the wide series of operational panel configuration
• Optional Front-facing USB port ensure easy accessibility

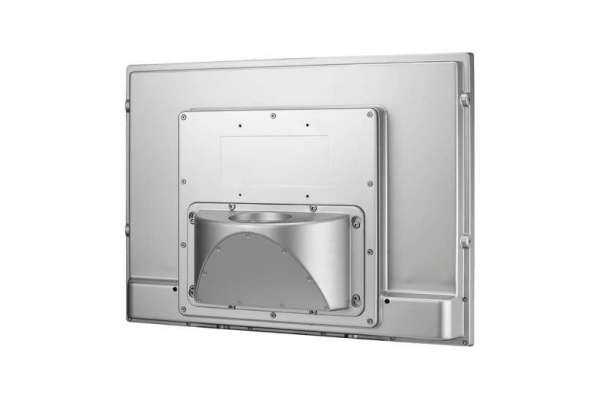

SPC-800(M) V2 are standalone multi-touch industrial monitors that can be pole mounted and integrated with an extension unit that supports wide series of operational panel configuration. Designed to be compatible with diverse industrial mounting standards, such as CP 40 (Rittal) and CS-480 B.Flex (Bernstein), SPC-800(M) V2 are a series of versatile monitors that can be installed in a variety of environment. The monitors are also equipped with a silicone-free enclosure that features all-around IP65-rated protection from water and dust. Moreover, with the aluminum cable housing, all cables and wiring can be hidden for a clean appearance and simplified wiring installation.

Additional information

General
Certification	CCC, CE, FCC Class A, UL
Cooling System	Fanless design
Dimensions (W x H x D)	21.5": 545.24 x 415.59 x 185mm
Enclosure	Front bezel: Die-cast aluminum alloy Rear housing: Die-cast aluminum alloy Front push button bracket : metal sheet
Mount Options	Pole Mount (Rittal CP40 & Bernstein CS-480) VESA Mount (Optional through VESA Kit)
Power Input	19-24 VDC
Weight (Net)	21.5": 8KG
Video Input	HD Base-T Ethernet (RJ45) Input
Video Output	HD Base-T Ethernet (RJ45) Output (SKU Optional)
I/O	4 x USB 2.0
LCD Display
Display Type	21.5" Full HD TFT LED
Display Size	21.5"
Max. Resolution	21.5": 1920 x 1080
Max. Colors	16.7 M
Luminance	21.5": 250 nits
Viewing Angle (H/V)	21.5": 178°/178°
Backlight	50,000 hr lifetime
Touchscreen
Light Transmission	≥88%
Resolution	4096 x 4096 dots
Type	Projected capacitive
Environment
Humidity	95% RH @ 40 °C/104 °F, non-condensing (tested for 48 hrs)
Ingress Protection	All-round IP65 rating
Operating Temperature	0 ~ 55 °C (32 ~ 131 °F)
Storage Temperature	-20 ~ 60 °C (-4 ~ 140 °F)
