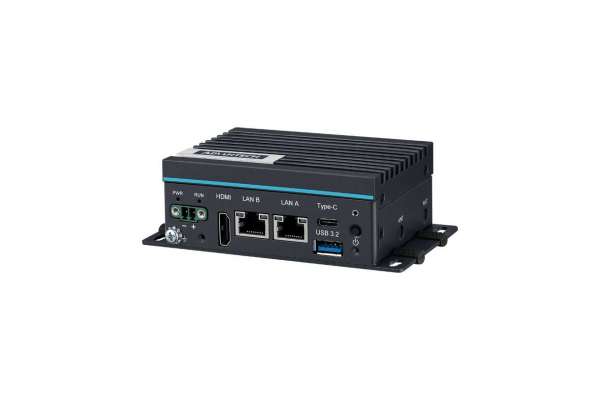

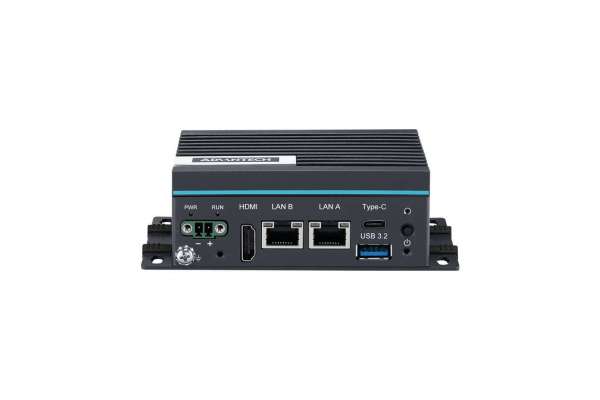

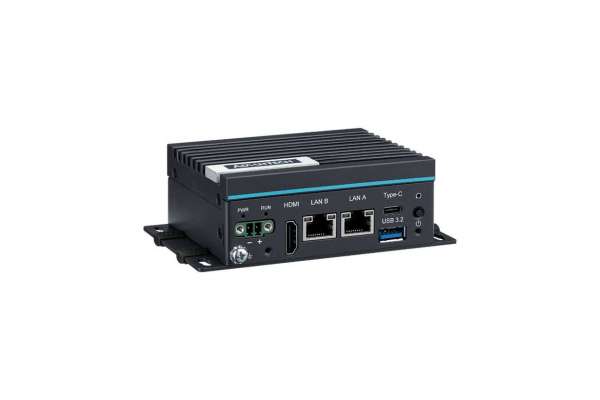

Compact fanless pc Advantech UNO-2271G V3

Pocket-Size Edge IoT Gateway with Intel® Atom x7211RE Advantech UNO-2271G V3

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
UNO-2271G-I331AE	Компактний промисловий комп'ютер Advantech UNO-2271G x7211RE, 8/64GB, 2x i226 IT, 2xUSB, 1xM.2 Bkey	28 947,6

Advantech’s UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers strong computing performance and flexible scalability with various I/O ports for IoT Connectivity. UNO-2271G V3 designed as IoT edge gateways, its pocket size design features versatile I/O ports and expansion options to support wire/wireless communication, and AI accelerators for IoT edge data analysis and processing. UNO-2271G V3 IoT edge gateway enables various industrial applications across multiple industries.

• Intel® Atom Dual core x7211RE processor with 8GB LPDDR5 onboard memory and 64 GB eMMC
• Pocket-size, robust, fanless and cable-free system with high stability

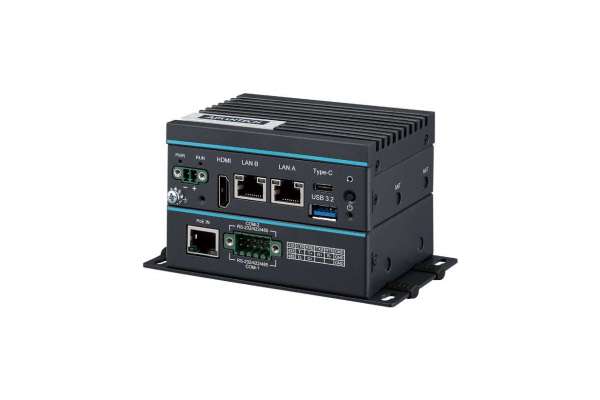

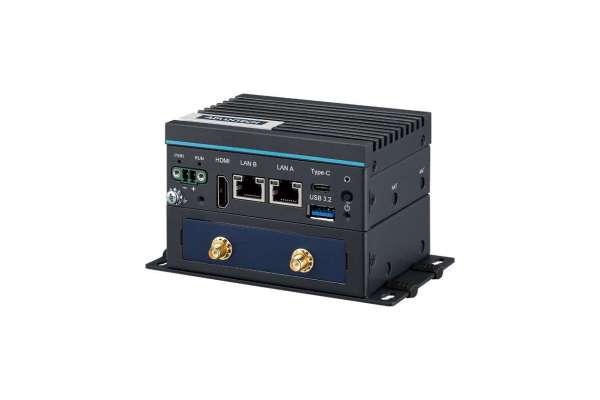

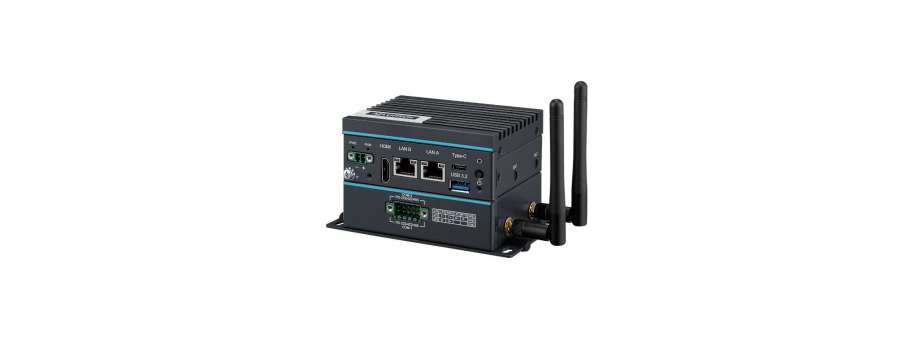

• Optional second stack for increasing functionality including POE, COM, wireless connectivity or iDoor expansion
• Support Windows 11 LTSC, Ubuntu 22.04

Additional information

General
Certification	CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H)	100 x 70 x 40 mm/3.9 x 2.8 x 1.5 in
Form Factor	Pocket size
Enclosure	Aluminum
Mount Options	Stand mount, Wall mount, VESA mount(optional), DIN rail mount (optional)
Weight (Net)	0.5 kg/1.1 lb
Power Requirement	10 ~ 30VDC
Power Consumption	12W (typical), 40W (max.)
Power Type	ATX mode
Operating System	Windows 11 LTSC, Ubuntu 22.04
System Hardware
BIOS	AMI UEFI x64
Watchdog Timer	Programmable interval timer, from 1 to 255 seconds
Processor	Intel® Atom Dual core x7211RE
Memory	8 GB LPDDR5 onboard
Graphics Engine	Intel® UHD Graphics
Ethernet	2 x Intel® i226-IT GbE, IEEE 802.3AZ/802.1AS
LED Indicators	Power, RUN, LAN (active, status)
Storage	Onboard 64GB eMMC Optional 1 x M.2 B+M key 2242 (SATA/PCIe)
Expansion	1 x M.2_B key (w/PCIex1/SATA/USB3.2)
Hardware Security	TPM2.0 (TPM2.0 Library Reversion 1.38)
I/O Interfaces
LAN Ports	2 x 10/100/1000/2500BASE-T Fast Ethernet (RJ45)
USB Ports	1x USB 3.2 Gen2 X1 1 x USB Type C (1.5A), supports DP & USB, DP ALT mode
Display Output	1 x HDMI (1920 x 1080 @60Hz)
Power Connector	1 x 2-pin terminal block
Environment
Operating Temperature	-20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s airflow
Storage Temperature	-40 ~ 85 °C /-40 ~ 185 °F
Relative Humidity	Operating , 95% RH @ 40° C, Non-Condensing Non-Operating, 95% RH @ 60° C, Non-Condensing
Shock Protection	Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection	Operating, IEC 60068-2-64, 2 Grms, random
Ingress Protection	IP30
