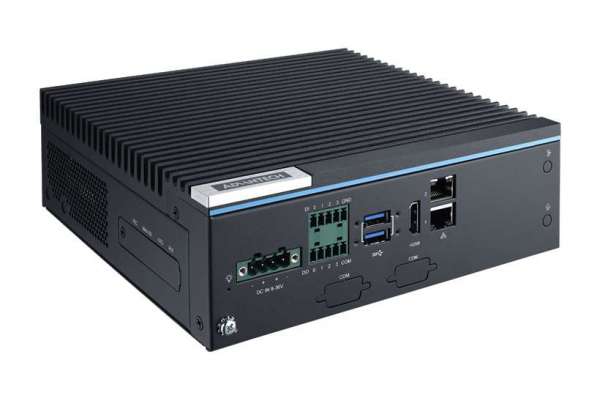

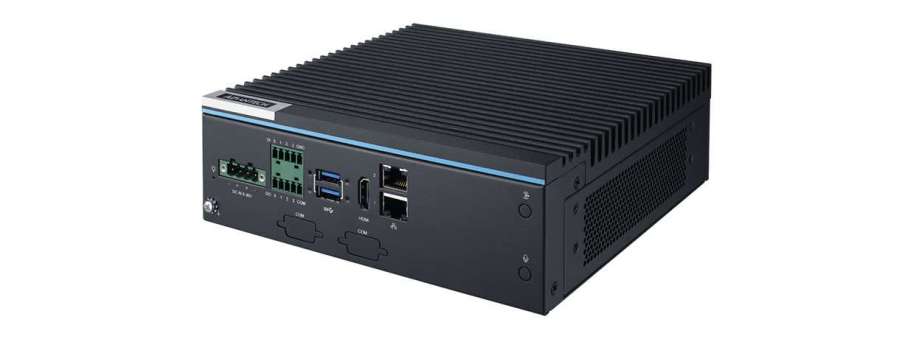

Compact PC Advantech MIC-713-OX

Fanless AI Platform Based on NVIDIA® Jetson Orin™ NX Advantech MIC-713-OX

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
MIC-713-OX4A1	Система штучного інтелекту Advantech MIC-713 на базі Orin NX 16GB_2 Lan, 128GB NVMe M.2 SSD	129 329,0
MIC-713-OX3A1	MIC-713_Orin NX 8GB_2 Lan	99 259,3

• Compact fanless design
• Embedded NVIDIA® Jetson Orin™ NX up to 100 TOPS
• Supports 2 x GbE, 6 x USB 3.2 Gen 2
• Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
• Supports Allxon 24/7 remote monitoring and OTA deployment

Additional information

Processor System
CPU	16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
GPU	1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory	16GB: 16GB LPDDR5 8GB: 8GB LPDDR5
Flash	-
I/O
Ethernet*	2 x 10/100/1000 Mbps
Display	HDMI (Max. resolution 3840x2160 @ 60Hz)
USB	External: 6 x USB 3.2 Gen 2
Digital I/O	4-ch DI, 4-ch DO
Serial Port (Optional)	2 x RS-232/422/485 (On-board pin header reserved)
CANBus	1
OTG US	1 x Micro USB
Expansion
Mini PCIe	1 x mPCIe (Signal: PCIe + USB 2.0)
M.2	1 x M.2 3052 (Signal: USB)
SIM	2 x Nano SIM slots
TPM (Optional)	1 x TPM 2.0
GMSL (Optional)	2-ch GMSL2.0 with FAKRA connectors
Storage
M.2	1 x M.2 2280 (Signal: PCIe x1, Gen 4)
SD Card	1 x Micro SD
Power
Mode	AT
Input Voltage	9 ~ 36 VDC
Environment
Operating Temperature**	-10 ~ 60 °C with 0.7 m/s airflow
Operating Humidity	95% @ 40 °C (non-condensing)
Vibration	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock	10G / 11ms
Mechanical
Dimensions (W x D x H)	194.8 x 174.3 x 65.85 mm (7.67" x 6.86" x 2.59")
Weight	2.05 kg (w/o packing material)
Installation	Desktop
BSP
Jetpack	Above 5.1
Certifications	CE/FCC/UKCA/CB/UL/BSMI/CCC (No RED certification)
