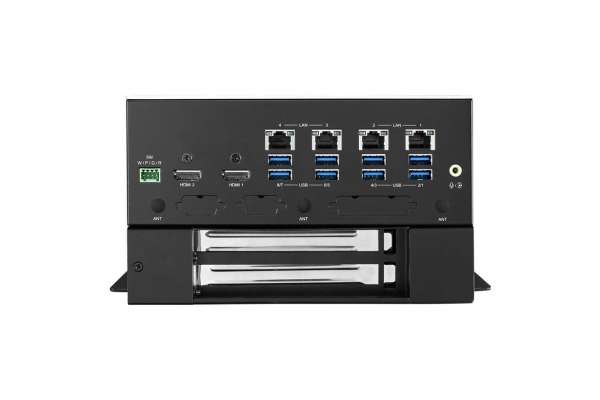

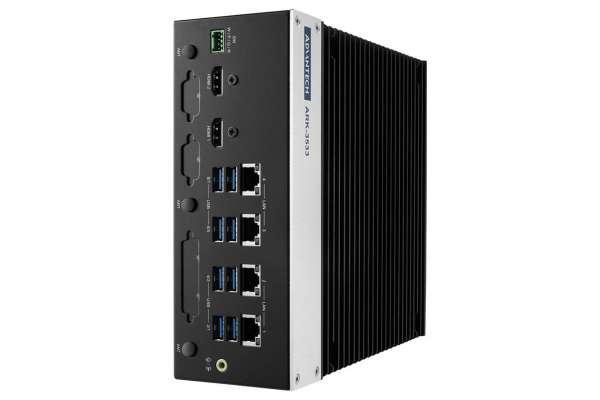

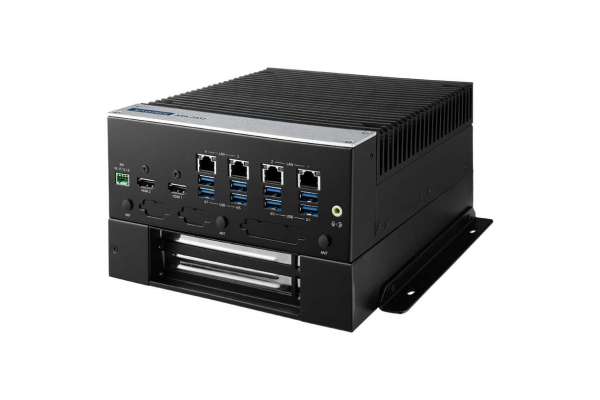

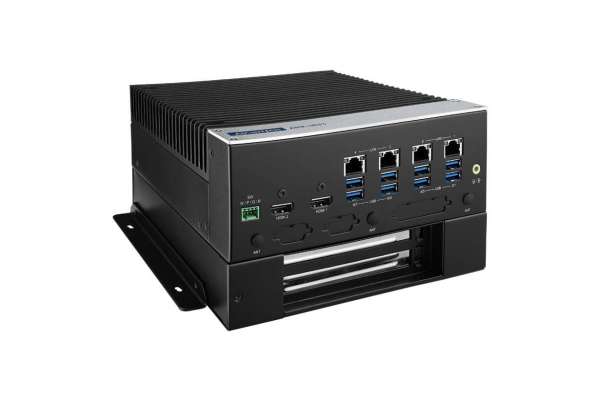

Intel® 12th/13th/14th Gen Core™ i3/i5/i7/i9 LGA1700 Expansion Fanless Box PC Advantech ARK-3533
Price and avalability
Partnumber | Description | Price VAT incl | Avalability |
---|---|---|---|
ARK-3533-00A1 | Компактний промисловий комп'ютер Advantech ARK-3533 Intel RPL-S H610E 4LAN+8USB+8COM, 9-36V | 52 927,9 | |
ARK-3533-00A1U | Компактний промисловий комп'ютер Advantech ARK-35 Intel RPL-S H610E 4LAN+8USB+8COM, 9-36V | 56 710,4 |
- Support Intel® 12th/13th/14th Gen. Core™ i3/i5/i7/i9 processor
- Dual display: HDMI + HDMI
- DDR5 SO-DIMM memory support up to 64 GB
- 9-36VDC wide range power input
- Support 2x 2.5" hard drive bays
- Support up to 4x GbE, 8x USB, 8x COM, 2x CANBus
- SUSI API, WISE-DeviceOn, Trellix and Acronis bundled
- Support Windows 11 IoT Enterprise LTSC
14th Generation Processor |
||||||||
CPU | i9-14900T | i7-14700T | i5-14500T | i3-14100T | ||||
P-core Frequency | 1.1-5.5GHz | 1.3-5.0GHz | 1.7-4.8GHz | 2.7-4.4GHz | ||||
L3 Cache | 36MB | 33MB | 24MB | 12MB | ||||
Cores | 24 | 20 | 14 | 4 | ||||
TDP | 35W | 35W | 35W | 35W | ||||
Chipset | H610E | H610E | H610E | H610E | ||||
BIOS | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | ||||
13th and 12th Generation Processor |
||||||||
CPU | i9-13900TE | i7-13700TE | i5-13500TE | i3-13100TE | i9-12900TE | i7-12700TE | i5-12500TE | i3-12100TE |
P-core Frequency | 1.0-5.0GHz | 1.1-4.8GHz | 1.3-4.5GHz | 2.4-4.1GHz | 1.1-4.8GHz | 1.4-4.6GHz | 1.9-4.3GHz | 2.1-4.0GHz |
L3 Cache | 36MB | 30MB | 24MB | 12MB | 30MB | 25MB | 18MB | 12MB |
Cores | 24 | 16 | 14 | 4 | 16 | 12 | 6 | 4 |
TDP | 35W | 35W | 35W | 35W | 35W | 35W | 35W | 35W |
Chipset | H610E | H610E | H610E | H610E | H610E | H610E | H610E | H610E |
BIOS | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit |
Additional information
Memory |
|
Technology | DDR5 4800 MHz |
Max. Capacity | 64 GB |
Socket | 2 x 262-pin SO-DIMM |
Graphics |
|
Chipset |
Intel® UHD Graphics 770 |
Graphic Engine |
|
HDMI | 2 HDMI ports, HDMI 2.0 for HD video playback, 4096x2160@60Hz |
Dual Display | HDMI+HDMI (DP support by project) |
Ethernet |
|
LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
LAN2/3/4 | 10/100/1000/2500 Mbps Intel i226-V GbE, support Wake On Lan |
Audio |
|
Interface | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) |
Others |
|
Watch dog Timer | 255-level timer interval, setup by software |
TPM | TPM 2.0 (by optional AMO-I029) |
I/O Interface |
|

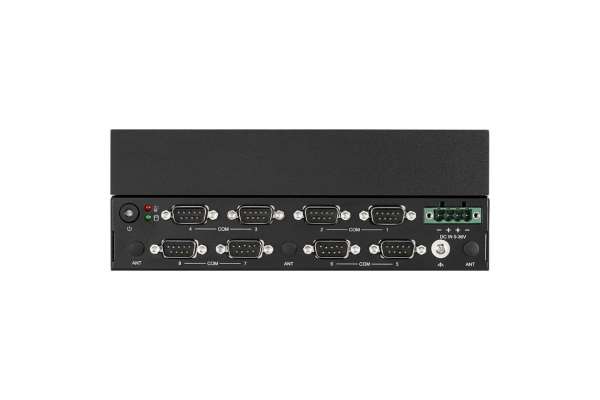

Serial Port | 4 x RS-232/422/485 port with auto flow control, 4 x RS-232 |
USB | 4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0 |
DIO | 16bit DIO (by optional cable) |
Expansions |
|
CANBus | 2 ports by optional cable |
M.2 | 1 x M2. 2230 E key and 1 x M.2 2280 B key with SIM holder #1 |
Add-on Card Slot | 2 Slot PCI (by optional AMO-3510) |
Maximum card size | 110mm (H) x 180mm (L) |
Storage |
|
HDD | 2 x 2.5" SATAIII 9mm height HDD bays |
NVME | 1 x PCIex2 (Share with M.2 2280 B key) |
Software Support | |
Microsoft Windows | Windows 10/11 |
Linux | Ubuntu 22.04, others by project support |
Power Requirements |
|
Power Type | AT/ATX |
Power Input Voltage | 9-36V |
Power Adapter | AC to DC (Optional) |
Power Consumption (CPU/Memory Only) |
|
Typical | 21.2W |
Max. | 40.4W |
Mechanical |
|
Construction | Aluminum housing |
Mounting | Desk mounting |
Dimensions (W x H x D) | 200 x 75 x 215 mm |
Weight | 3.2 Kg |
Environment |
|
Operating Temperature | Up to 35W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow |
Storage Temperature | -40 ~ 85° C |
Relative Humidity | 95% @ 40° C (non-condensing) |
Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. |
Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
EMC | CE/FCC Class B, CCC, BSMI, UKCA |
Safety | CB, UL, CCC, BSMI, UKCA |
