Capacity Touch
FullHD
HDMI
Input 220V AC
IP66
Panel mount
Screen Size 21"
Standard T range

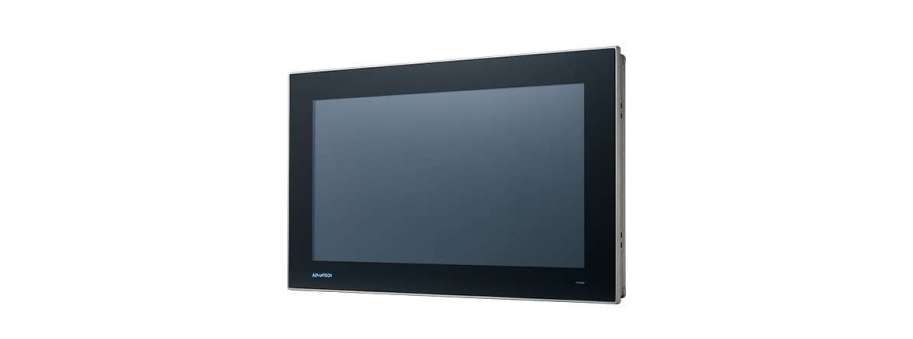

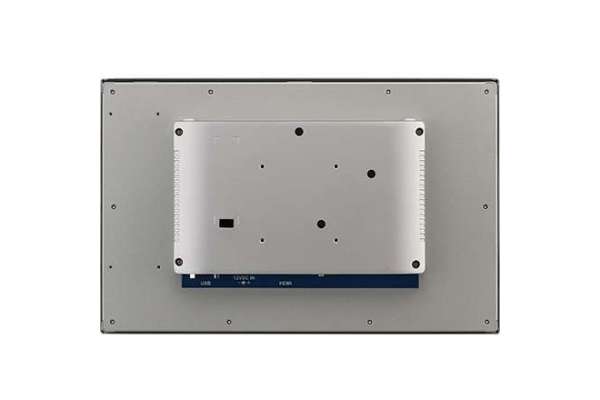

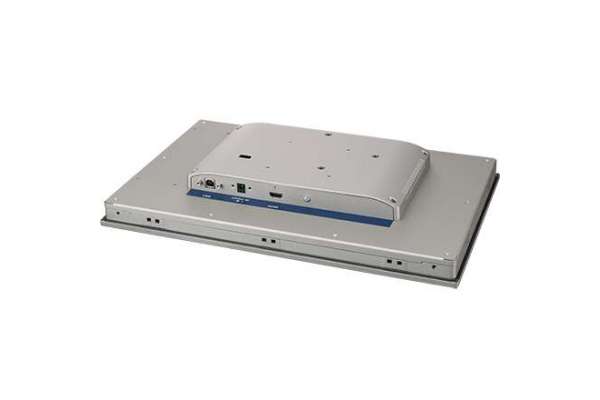

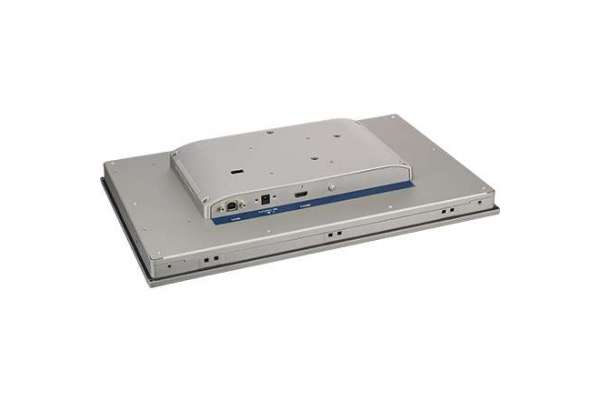

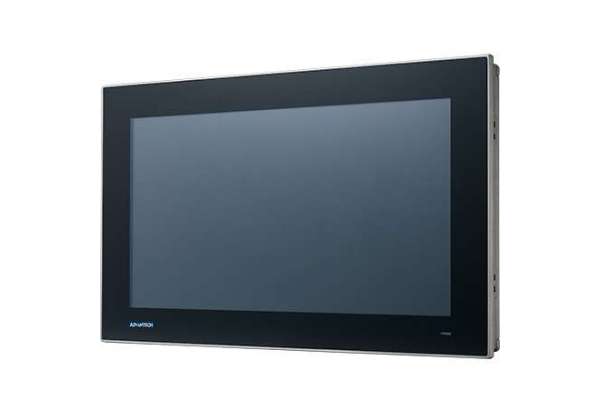

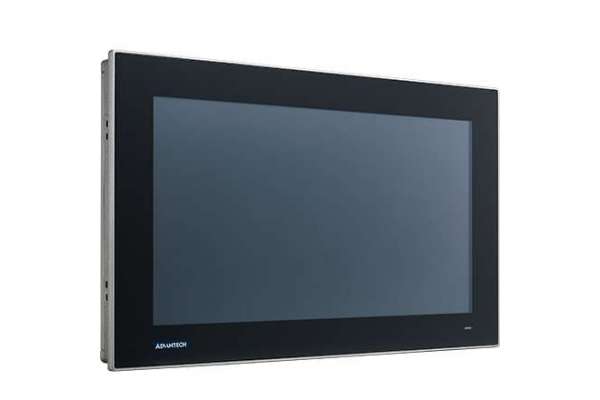

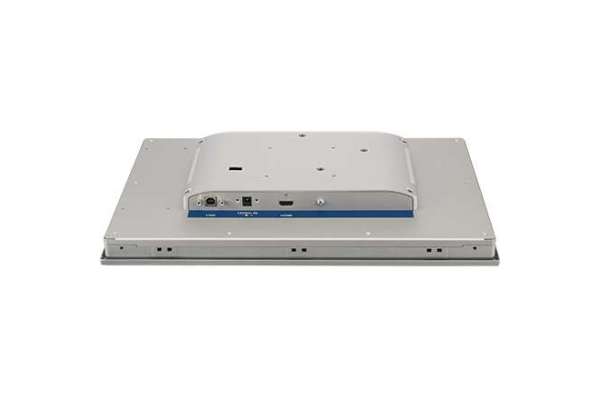

21.5" Industrial Monitor with P-CAP Touch Control, Direct HDMI Port Advantech FPM-221W
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| FPM-221W-P4AE | Промисловий дисплей Advantech FPM-221W, 21.5" Full HD Ind. Monitor, w/ PCAP touch, HDMI x 1 | 60 844,1 |
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-221W is an industrial-grade, widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with P-CAP 10-point multi-touch control and an IP66-rated front bezel, FPM-221W is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.
- 21.5" Full HD TFT LED LCD with true-flat touchscreen
- 16:9 wide screen aspect ratio, increases viewing area by 40%
- Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm
- Touchscreen with reliable glass surface and P-CAP touch control
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
Additional information
General |
|
| Certification | BSMI, CCC, CE, FCC Class A, UL, CB |
| Dimensions (W x H x D) | 558.4 x 349.8 x 56.2 mm (21.98 x 13.77 x 2.21 in) |
| Enclosure |
|
| Mounting | Panel, VESA arm |
| Power Input | External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included) |
| Video Port | HDMI |
| Weight (Net) | 6 kg (13.23 lb) |
LCD Display |
|
| Display Type | Full HD TFT LED LCD |
| Display Size | 21.5" |
| Max. Resolution | 1920 x 1080 |
| Max. Color | 16.7M |
| Viewing Angle (H/V)° | 178/178 |
| Luminance (cd/m2 ) | 250 |
| Backlight Life (hrs) | 50,000 |
| Contrast Ratio | 1000:1 |
Touchscreen |
|
| Type | Projected capacitive touch |
| Interface | USB |
| OS Support | Windows® 7, 8, 10,11, XPe, CE and Linux |
| Hardness | 7H |
| Multi Touch | 10 points, USB interface in Win 7/8/10, Linux |
Environment |
|
| Operation Temperature | 0 ~ 50°C (32 ~ 122°F) |
| Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Humidity (Storage) | 10 ~ 95% non-condensing |
| Waterproof | Front Panel IP66 Compliant |
| Vibration | 5 ~ 500 Hz, 1 Grms (Operating, Random) |
