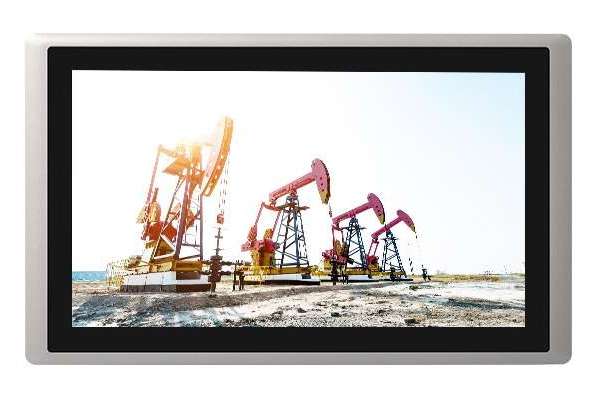

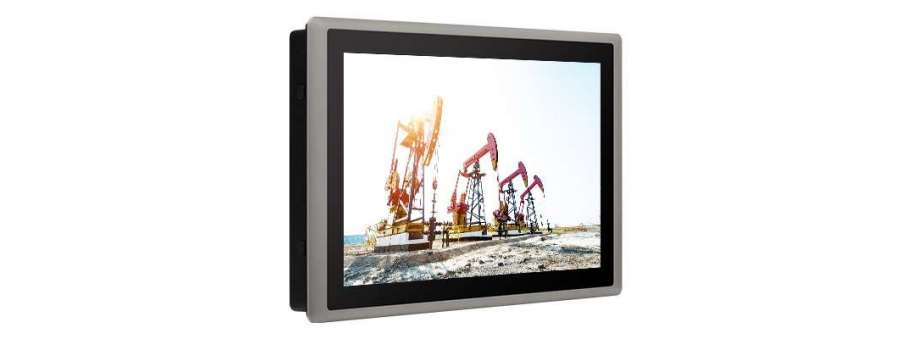

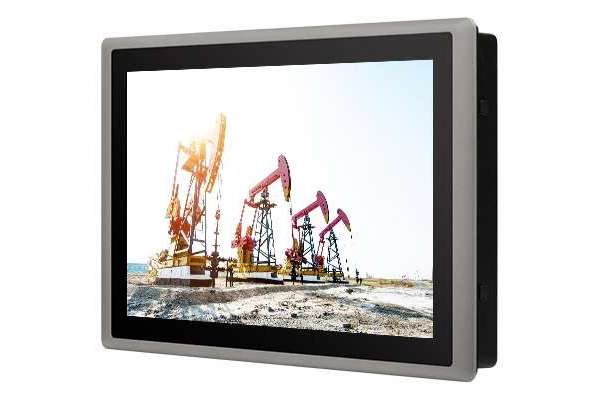

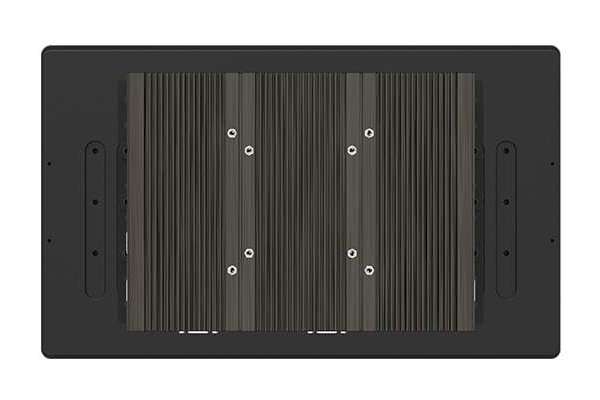

15.6" TFT-LCD Modular & Expandable Panel PC with Intel Meteor Lake-PS Core Series Cincoze CS-W115FH / P2302

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

The CS-W115FH / P2302 is a sunlight-readable high-performance panel PC that provides ultra-high brightness of up to 1,800 nits. It is equipped with an Intel® Core™ Ultra U-series (Meteor Lake-PS) Processors that provides a complete selection of screen sizes, ratios, and brightnesses. Rich I/O, flexible expansion, rugged, easy on-site maintenance, and other features make the CS-100/P2302 series the best choice for outdoor kiosk or HMI applications.

  • 15.6” TFT-LCD 1920x1080 (Full HD) Resolution with Projected Capacitive Touch
  • Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
  • 2 x DDR5 SO-DIMM Socket, Supports up to 5600MHz 64GB Memory
  • Ultra High Brightness up to 1,200 nits
  • Quad Independent Display (CDS / HDMI / DP / VGA)
  • 1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
  • 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
  • Designed with Aluminum Die-cast Front Bezel
  • Front Panel IP65 Compliant

Additional information

Display
LCD Size 15.6" (16:9)
Max. Resolution 1920 x 1080 (Full HD)
Brightness (cd/m2) 1200
Contrast Ratio 800 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.17925 (H) x 0.17925 (V)
Viewing Angle (H-V) 178 / 178
Backlight LED Life Time 50,000 hrs (LED Backlight)

Touch Screen
Touch Type Projected Capacitive

Physical
Dimension ( W x D x H ) 420 x 254 x 66.2 mm
Weight Information 3.58 kg
Mechanical Construction Flat Rugged Aluminum Die-casting Bezel

Power
Power Consumption 25W (Max.)

Environment
Front Panel Protection IP 65 Compliant
Operating Temperature -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature -40°C to 80°C
Relative Humidity 90% RH @ 39°C (non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

System
Processor

• Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor

- Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W

- Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W

- Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W

- Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W

- Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 1
Memory 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 64 GB
BIOS AMI BIOS

Graphics
Graphics Engine Intel® Graphics
Maximum Display Output Supports Quad Independent Display
CDS 1x CDS Connector (1920 x 1080 @60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
VGA 1x VGA Connector (1920 x 1080 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN

2x 2.5GbE LAN, RJ45

- GbE1: Intel® I225

- GbE2: Intel® I225
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 3.2 Gen1x1 (5Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A
DIO 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Expansion
M.2 Key E Socket 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion
M.2 Key B Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 3042 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion
PCI Express

For P2302E

  • 1x PCI or 1x PCIe Gen3 x4 Expansion slot (with Optional Riser Card)
  • Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
SIM Socket 1 x Front Accessible SIM Socket
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion
CDS (Convertible Display System) Interface 1x CDS Interface for Convertible Display Module

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption

Intel Core™ Ultra 7 Processor 165UL: 79.7W

- Test conducted with CPU, 1x RAM, and 1x storage

- 100% load during burn-in testing
Inrush Current (Peak) Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu Desktop 24.04 LTS

Physical
Dimension( W x D x H )

P2302: 254.5 x 190 x 49.5 mm

P2302E: 254.5 x 190 x 69 mm
Weight Information

P2302: 2.16 kg

P2302E: 2.26 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Environment
Operating Temperature

40°C to 65°C

* PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 65°C
Relative Humidity 95%RH @ 65°C (non-Condensing)
Shock Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment

EMC

- EN/BS/IEC 61000-6-4: 2019 Class A

- EN/BS/IEC 61000-6
