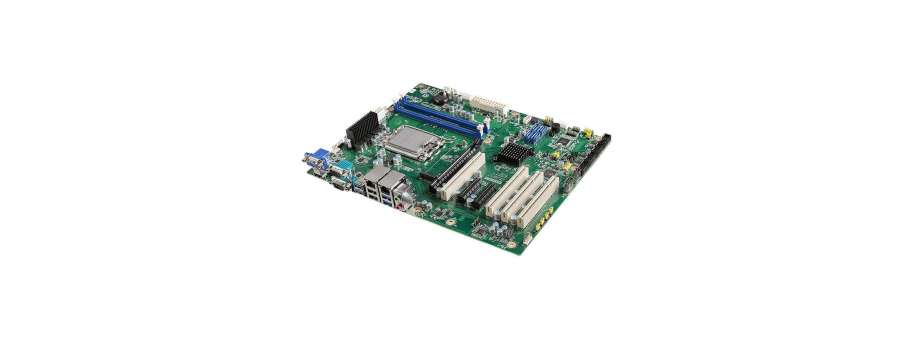

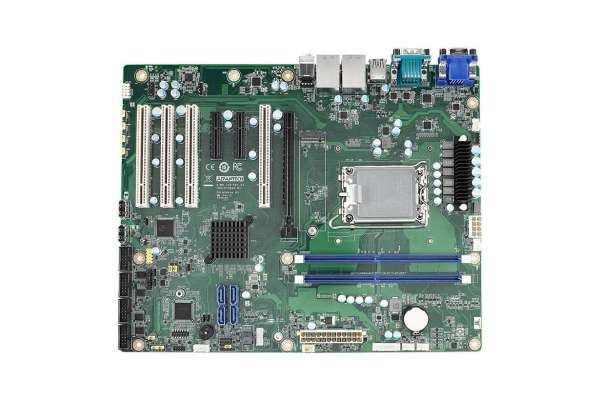

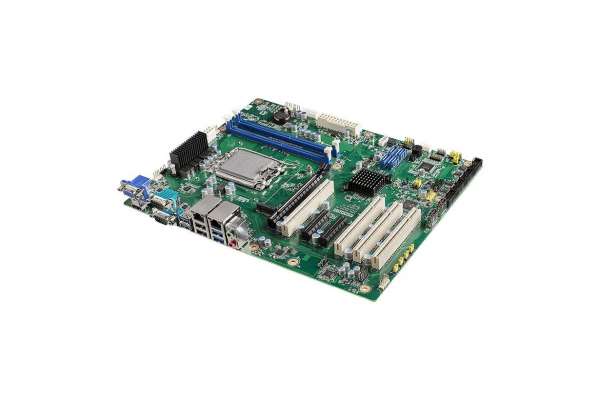

LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/ Celeron® ATX with HDMI/VGA, DDR4, USB 3.2, M.2, 6 COMs Advantech AIMB-708

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
AIMB-708G2-00A1 Промислова материнська плата Advantech LGA1700 ATX H610E/2LAN/HDMI/VGA  28 428,8
AIMB-708VG-00A1 Промислова материнська плата Advantech AIMB-708 LGA1700 ATX H610E/1LAN/VGA  25 912,8
  • Intel® 12th/13th/14th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H610E chipset
  • Two DIMM sockets up to 64GB DDR4 3200
  • Dual display HDMI/VGA and dual GbE LAN
  • M.2, SATA 3.0, USB 3.2 Gen1
  • 5 RS-232 and 1 RS-232/422/485 serial ports
  • 1 PCIe x16 (Gen 4) and 2 PCIe x4 (x2 Gen 3 link), and 4 PCI expansion slots

Note 1: Legacy platform is not supported.

Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.

Note 3: Intel® Platform Trust Technology (Intel® PTT) ready for Windows 11.

*For detailed information, see the data sheet

Additional information

Processor System
Socket LGA 1700
Chipset H610E
BIOS AMI 256Mbit SPI Flash

Expansion Slot
PCI 4 (32-bit/33 MHz)
PCIe x4 (Gen 3) 2 (x2 link)
PCIe x16 (Gen 4)* 1

Memory
Technology Dual Channel(Non-ECC) DDR4 3200
Max Capacity 64 GB
Sockets 2 x 288-pin DIMM

Graphics
Controller Chipset integrated Intel UHD Graphics
VRAM Shared system memory is subject to OS

Ethernet
Interface LAN1: 10/100/1000 Mbps; LAN2: 10/100/1000/2500 Mbps (G2 only)
Controller
  • GbE LAN1: Intel I219-V
  • GbE LAN2: Intel I226-V (G2 only)
Connector RJ-45

SATA
Max Data Transfer Rate 600 MB/s
600 MB/s 4

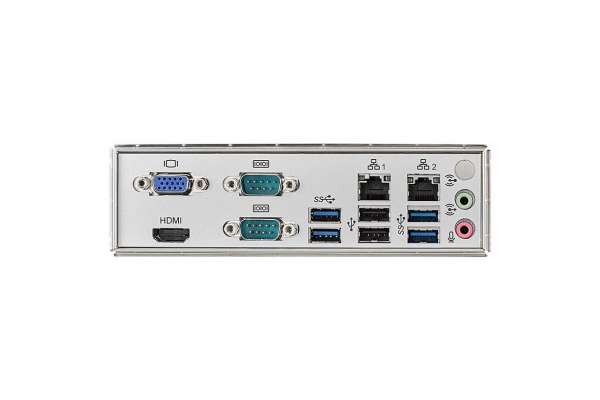

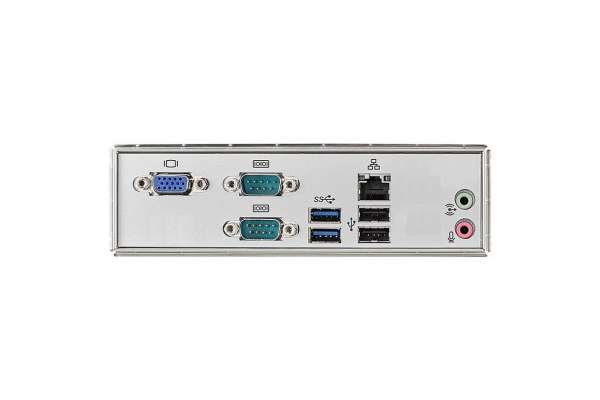

Rear I/O
VGA 1 (Resolution up to 1920 x 1200 @ 60 Hz)
HDMI 1 for G2 version (Resolution up to 4096 x 2304 @ 30Hz)
Ethernet 2 for G2 version; 1 for VG version
USB
  • G2: 6 (4 x USB 3.2 Gen 1 + 2 USB 2.0)
  • VG: 4 (2 x USB 3.2 Gen 1 + 2 USB 2.0)
Audio 2 (Line-out, Mic-in)
Serial 2 (RS-232)

Internal Connectors
USB
  • G2: 4 (2 x USB 2.0 via pin header, 2 x USB 2.0 Type-A connector)
  • VG: 3 (2 x USB 2.0 via pin header, 1 x USB 2.0 Type-A connector)
Serial G2: 4 (3 x RS-232, 1 x RS-232/422/485)
SATA 4
M.2 G2: 1 (PCIe x2 M-key 2280 type)
SPI 1 (Optional dTPM 2.0 module available)
GPIO 8-bit

Watchdog Timer
Output System reset
Interval Programmable 1 - 255 sec

Power Requirement*
Test Environment Intel Core i 65W; DDR4 32 GB x 2
Voltage +3.3V / +5V / +12V / +5Vsb / -12V / -5V
Current 1.18 A / 1.65 A/ 0.06 A / 0.06 A/ 0.05 A/ 0.01 A

Environment
Temperature
  • Operating: 0 ~ 60 °C (32 ~ 140 °F), depends on CPU speed and system thermal solution
  • Non-Operating: -40 ~ 85 °C (-40 ~ 185 °F)
Humidity
  • Operating: 40 °C @ 95% RH Non-condensing
  • Non-Operating:60 °C @ 95% RH Non-condensing

Physical Characteristics
Dimensions (L x H) 304.8 x 244 mm (12" x 9.6")
