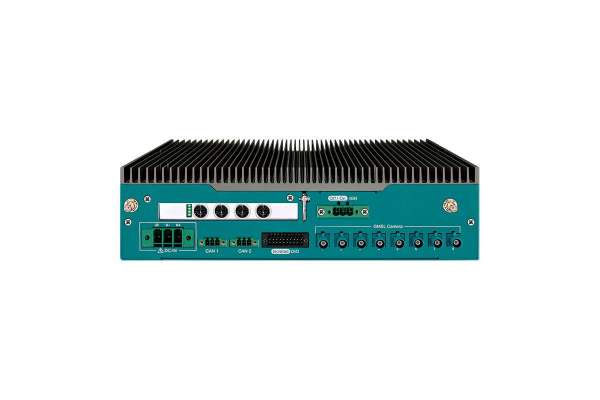

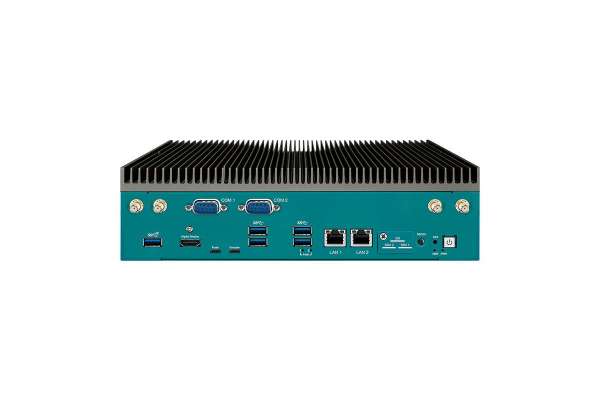

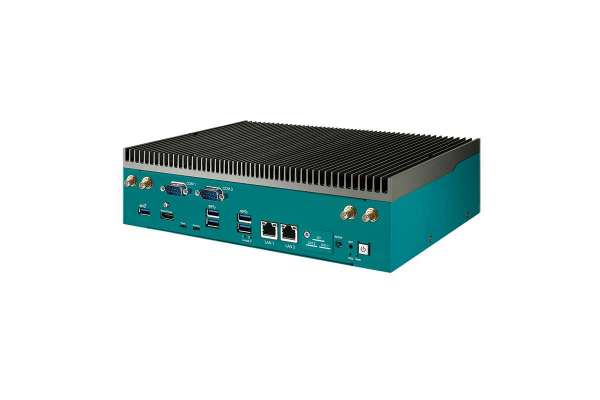

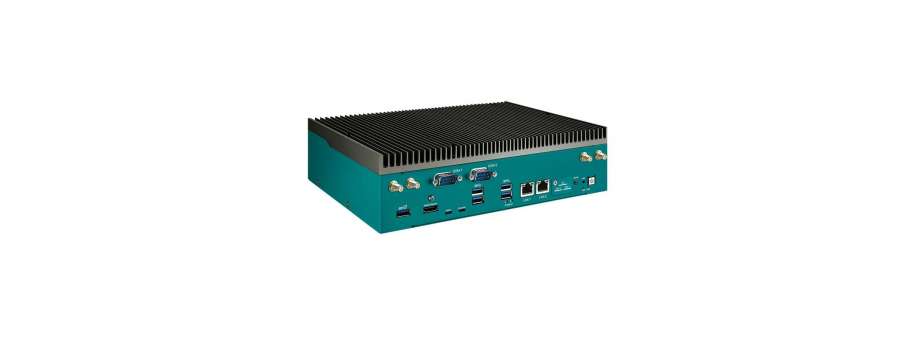

EN50155 NVIDIA® Jetson AGX Orin™ Embedded AI Computing System Vecow EAC-5000
Vecow EAC-5000 Series is powered by NVIDIA Jetson AGX Orin platform that features an Arm® Cortex®-A78AE CPU delivering up to 275 TOPS of AI performance and integrates an advanced NVIDIA Ampere architecture GPU with 64 Tensor Cores. It’s capable of delivering server-class performance for edge AI applications.
The EAC-5000 Series is rugged in design and supports high compute density with I/O flexibility, including 8 GMSL2 cameras, 1 PCIe x8 slot, 2 GigE LAN with an optional choice of X-coded M12 connector, 5 USB, 2 COM, 2 Isolated CAN Bus, and 2 SIM card sockets. With support for 9V to 50V wide range DC-in, operating temperature range from -25°C to 70°C, as well as software ignition control, Vecow EAC-5000 Series is ideal for in-vehicle computing, robotic control, machine vision, intelligent video analytics, mobile robots, and any embedded AI applications.
Furthermore, the EAC-5000 Series supports the NVIDIA JetPack™ 6 software development kit, which expands the Jetson platform’s flexibility and scalability to accelerate AI application deployment.
- Advanced NVIDIA® Jetson AGX Orin™ platform delivers up to 275 TOPS AI performance
- The latest NVIDIA Ampere™ architecture, featuring with 2048 NVIDIA® CUDA® cores and 64 Tensor cores
- Supports 8 GMSL 1/2 automotive cameras with Fakra-Z connectors
- 1 PCIe Gen3 x8 expansion slot supports optional multiple 10GigE/PoE LAN/USB connections
- 6 GigE LAN with 4 PoE+, 1 Digital Display supports 4K60
- 2 Isolated CAN Bus support Flexible Data-rate, 2 COM RS-232/422/485, 5 USB 3.1
- Supports device remote management by Allxon
- DC 9V to 50V wide range power input, Ignition Power Control
Additional information
System |
|
| CPU |
R32 : 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU R64 : 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU |
| GPU |
R32 : 1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores R64 : 2048-core NVIDIA Ampere™ architecture GPU with 64 Tensor Cores |
| DL Accelerator | 2x NVDLA Engines |
| Memory |
R32 : 1 32GB LPDDR5 DRAM R64 : 1 64GB LPDDR5 DRAM |
| Software Support |
|
I/O Interface |
|
| USB |
|
| Serial | 2 COM RS-232/422/485 |
| CAN Bus | 2 Isolated CAN Bus support CAN FD |
| DIO | 16 Isolated DIO (8 DI, 8 DO) |
| Micro USB | 1 Micro USB console debug port, 1 Micro USB OS flash port |
| Button | 1 Power Button, 1 Force Recovery Button, 1 Reset Button |
| LED | Power, SSD, 2 User Programmable |
| SIM | 2 SIM Card Socket |
| Antenna | 6 Antenna for WiFi/4G/5G/LTE/GPRS/UMTS |
Expansion |
|
| PCIe | 1 PCIe x16 slot with PCIe 3.0 x8 signal |
| M.2 |
|
Graphics |
|
| Interface | 1 Digital Display, up to 4K60 |
| Video Encode |
R32 : 1x 4K @60, 3x 4K @30, 6x 1080p @60 (HEVC) R64 : 2x 4K @60, 4x 4K @30, 8x 1080p @60 (HEVC) |
| Video Decode |
R32 : 1x 8K @30, 4x 4K @30, 9x 1080p @60 (HEVC) R64 : 1x 8K @30, 7x 4K @30, 11x 1080p @60 (HEVC) |
Camera (EAC-5000) |
|
| GMSL | 8 Fakra-Z connectors for GMSL 1/2 automotive cameras |
Storage |
|
| M.2 | 2 M.2 Key M Socket (2280, PCIe Gen3 x4) |
| eMMC | 1 eMMC 5.1, 64GB |
| SD | 1 Micro SD (External) |
Ethernet |
|
| LAN 1 to LAN 2 | 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector (Optional X-coded M12 Connector) |
PoE (EAC-5100) |
|
| LAN 3 to LAN 6 |
IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector (Optional X-coded M12 Connector) Total PoE power budget support up to 60W at 25°C, 30W at 70°C |
Power |
|
| Power Input | DC 9V to 50V |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control (non-OOB SKU only) |
| Remote Switch | 3-pin Remote Switch Terminal Block |
Out-of-Band Management |
|
| MCU | Nuvoton NUC980 |
| Interface | OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector |
| Remote Management | Support Remote Power ON/OFF, Reset and Power Cycling |
Mechanical |
|
| Dimensions | 260 mm x 182 mm x 69 mm (10.24’’ x 7.17’’ x 2.72’’) |
| Weight | 3.8 kg (8.39 lb) |
| Mounting |
|
Environment |
|
| Operating Temp. |
30W TDP Mode : -25°C to 70°C (-13°F to 158°F), with 0.63 m/s air flow 40/50W TDP Mode : -25°C to 55°C (-13°F to 131°F), with 0.63 m/s air flow |
| Storage Temp | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @70°C |
| Shock | Operating, MIL-STD-810G, Method 516.7, Procedure I |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4 |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
