2xLAN
Extended T range
HDMI
Input 24V DC
Memory on Board

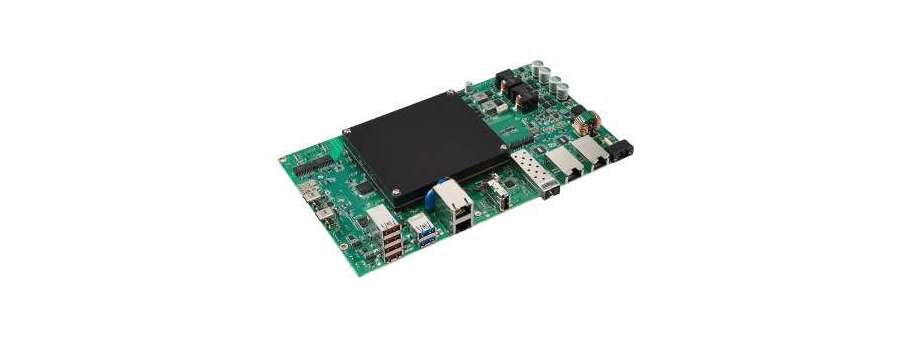

AI System Accelerated by NVIDIA Jetson Thor Module Advantech MIB-741-AT
- Embedded with NVIDIA® Jetson T4000™ up to 1200 TFLOPS (FP4)
- Supports 1 x SFP28 (1 x 25GbE)
- Supports 2 x 1GbE, 2 x 10GbE4, 6 x USB 3.2 Gen 2, 2 x M.2 2280, 1 x M.2 Ekey (Support both WiFi AEKey), 1 x M.2 Bkey (LTE,5G)
- Supports 2 x Isolation CAN FD 8M
- Support up to 8-ch GMSL2.0 with mini FAKRA connectors
- Support multiple purpose of large AI model for Generative AI application
Additional information
| NVIDIA® Jetson T4000™ | |
Process |
|
| CPU | 12 core Arm® Neoverse V3AE (64-bit) SMP CPU architecture L1 Cache (I, D) per core: 64KB + 64KB, L2 1MB, L3 16MB |
| GPU | 1536-core NVIDIA Blackwell architecture GPU with 64 fifth-gen Tensor Cores |
| Memory | 64GB LPDDR5X |
Ethernet |
|
| RJ45 | 2 x 10/100/1000 Mbps Ethernet |
| RJ45 | 2 x 10/100/1000/2500/5000/10000 Mbps Ethernet |
| SFP28 | 1 x 25GbE |
I/O |
|
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB | 6 x USB 3.2 Gen 2 Type-A |
| OTG USB | 1 x USB 2.0 Type-C |
| Console | 1 x USB 2.0 Type-C console for debug (UART to USB) |
| SIM card | 1 x Nano SIM on side of board (for B Key) |
Expansion |
|
| M.2 Ekey | 1 x 2230 E-key (Signal: PCIe x1 + USB2.0) |
| M.2 Bkey | 1 x 3052/3042 B-key (Signal: USB3.0 + USB2.0) |
| TPM | 1 x TPM (onboard) |
| CAN | 2 x CAN FD Isolation 8M |
| I2C (Optional) | 1 x I2C (Expansion for 4 x DI/DO module) |
| OOB (Optional) | 1 x OOB (Pin Header) |
| PPS (Optional) | 1 x PPS (Pin Header) |
| GMSL (Optional) | 4 x MIPI 4 lanes (Support 8-ch GMSL2.0 with mini FAKRA connectors) |
| Audio (Optional) | 1 x audio speaker out, MIC in on board |
Storage |
|
| M.2 M.key |
|
Power |
|
| Power Supply | Power input: 19-36V |
| Power Type | Terminal Block 2 Pin |
| Internal pin header | 2 x SMART FAN |
Environment |
|
| Operational Temperature | -10 ~ 60 °C with 0.7 m/s air flow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
Mechanical |
|
| Dimensions (W x D x H) | 241 x 147 x 45 mm |
| Weight | 0.66kg |
| Installation | Desktop |
Operating System |
NVIDIA Jetpack™ 7.1 |
| Certifications | CE/FCC |
