Din-Rail Mount IP40 RS232 RS485 Standard T range Wallmount

Industrial Raspberry Pi 4 HAT Gateway Kit Advantech UNO-220

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-220-P4N1AE Промисловий комп'ютер Advantech UNO-220 - RPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SD  6 941,0
UNO-220-P4N2AE Промисловий комп'ютер Advantech UNO-220 - Industrial Raspberry Pi 4 Gateway Kit with POE  8 551,9

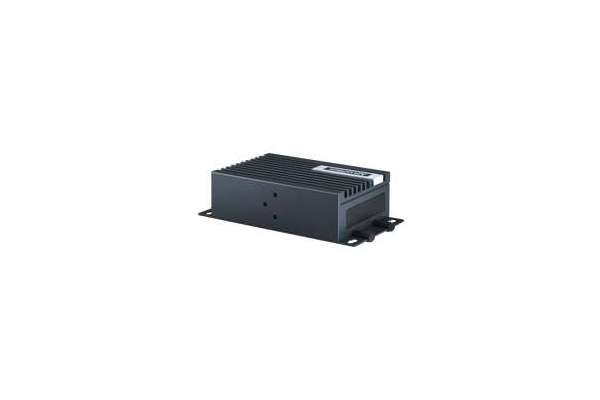

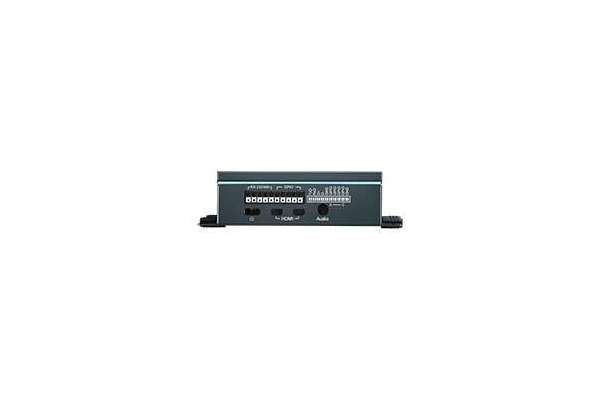

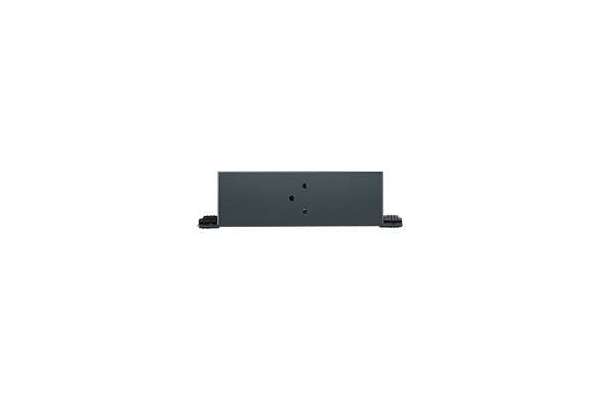

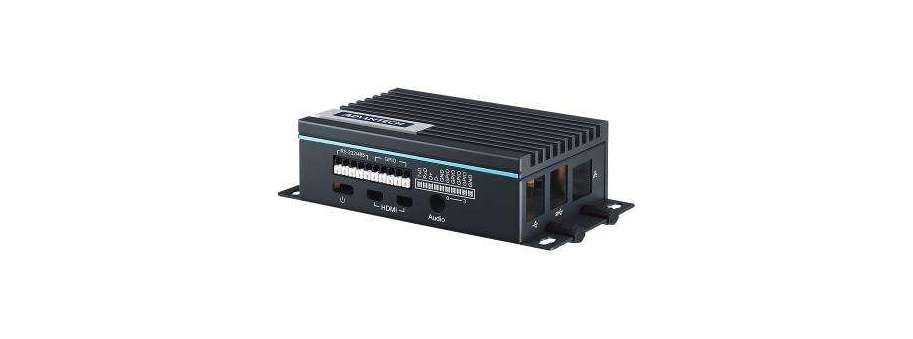

UNO-220 is a power and I/O board designed for end users using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in unique IoT applications. Featuring a system-image OS equipped micro 8GB SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; UNO-220 industrial-grade chassis transforms RPi 4 into an intelligent gateway. UNO-220 also features pre-finished mounting holes and attachment screws enabling plug-and-play assembly with separately purchased RPi 4 SBCs. It provides developers with a complete RPi 4-ready industrial-grade gateway kit, which is ideal for rapid prototyping and mass deployment.

  • Industrial-grade power and I/O gateway kit installed with Raspbian OS provides RPi 4 -ready solutions for rapid prototyping
  • UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environments
  • An power and industrial I/O board for RS-232/485 and GPIO extension
  • Amazon AWS IoT Greengrass certified

Additional information

General

Certification CE, FCC
Dimensions (W x D x H) 100 x 70 x 32 mm (3.9 x 2.7 x 1.2 in)
Form Factor Micro
Enclosure Aluminum housing
Mount Options Wall mount, DIN rail (optional)
Weight (Net) 0.5 kg (1.10 lbs)
Power Consumption 15 W (typical)
OS Support AdvRaspbian

System Hardware

Hardware Security TPM 2.0 (available upon request)
Storage 1 x Micro SD slot internal 8 GB SD card included, which can be swapped and inserted into Raspberry Pi 4

I/O Interfaces

Serial Ports 1 x RS232/485 (5-pin terminal block), automatic direction control, 300 ~ 115.2k bps
GPIO
  • GPI 0-3: VIH: 2 ~ 5V VIL: 0 ~ 0.8V
  • GPO 0-3: 0 ~ 5V

Environment

Operating Temperature 0 ~ 50 °C (32 ~ 122 °F) @ 5 ~ 85% RH without 0.7m/s airflow
Storage Temperature 20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 10 ~ 95% RH @ 40 °C, non-condensing
Ingress Protection IP40
