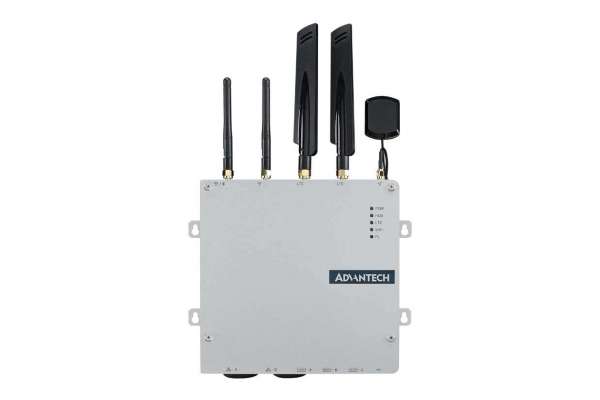

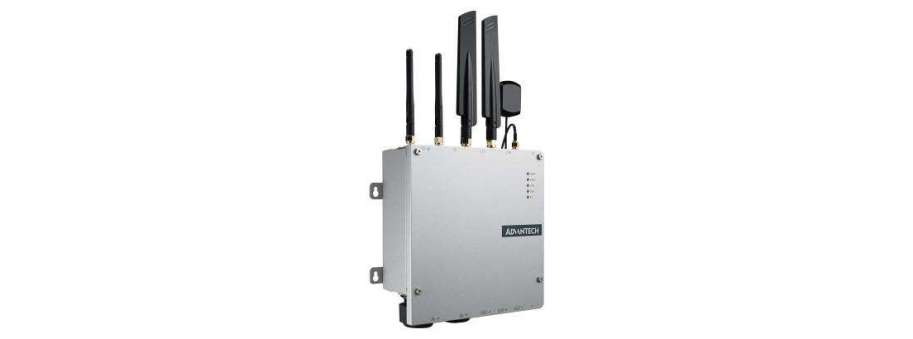

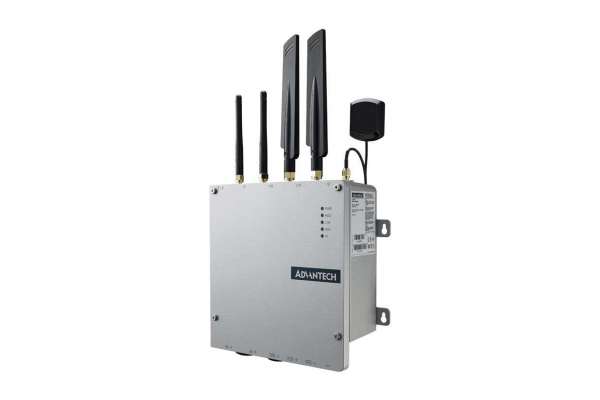

All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with Intel® Atom™ E3950 Advantech UNO-430-E1A
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UNO-430-E1A | Компактний промисловий комп'ютер Adavntech UNO-430 Atom E3950,8GB,2xGbE,3xCOM,Plastic cable gland | 88 413,6 |
Designed for operation in harsh outdoor/industrial environments, UNO-430-E1A features all-around IP69K/68-rated ingress protection and cable gland I/O connectors to provide a truly watertight solution that can withstand the most demanding applications. The waterproof enclosure features a front door for easy access and maintenance as well as a cable gland that offers further ingress protection. This eliminates the need for a waterproof cabinet, cables, or wiring, which enables customers to use the UNO-430 gateway as a standalone data acquisition gateway. Moreover, with the provision of standard M.2 2230 Wi-Fi and M.2 3052/3042 5G/LTE sockets, the UNO-430 gateway offers expandable wireless connectivity for remote communication and data transfers.
- Intel® Atom® E3950 quad-core processor with 8G DDR3L memory
- Reserve M.2 3052/3042 key B, M.2 2230 key E for Wi-Fi, LTE & GPS expansion
- Water-proof and sustain -40 ~ 70°C for outdoor environments

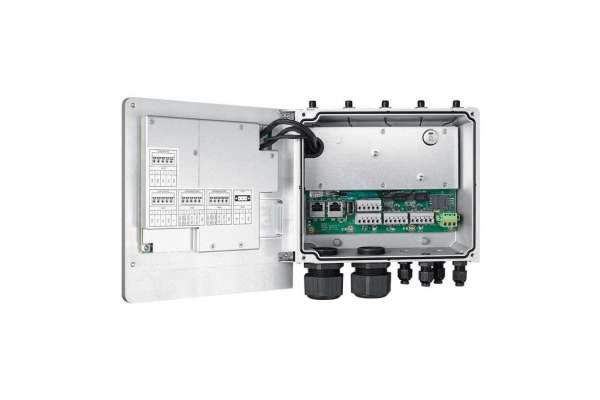

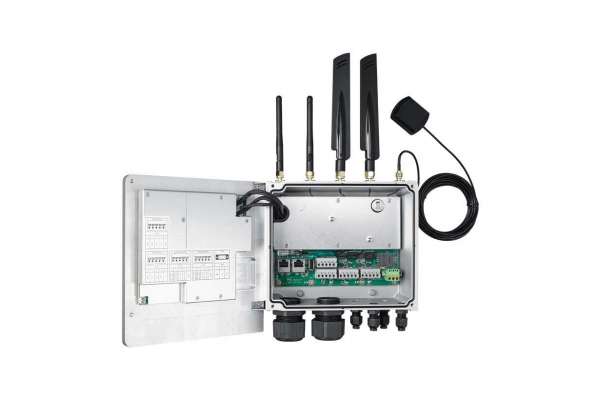

- Easy maintenance and installation with front door and cable gland design
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
- RED compliance
Additional information
General |
|
| Certification | CE, FCC, IEC/ UL 62368-1, UL 60950-22 (Part 22: Equipment to be installed outdoors) |
| Dimensions (W x D x H) | 200 x 200 x 68 mm/7.87 x 7.87 x 2.67 in |
| Form Factor | Square |
| Enclosure | Aluminum housing |

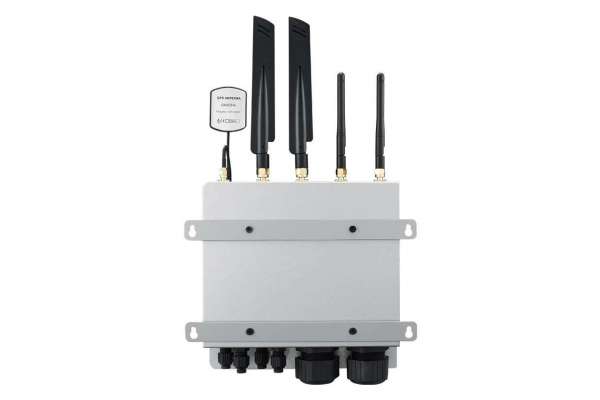

| Mount Options | Wall mount |
| Weight (Net) | 3 kg/6.61 lb |
| Power Requirement | 10 ~ 36 VDC |
| Power Consumption | 21W (typical), 27W (max.) |
| OS Support | Microsoft® Windows 10 Ent. LTSC, Advantech Linux (Ubuntu 18.04) |
System Hardware |
|
| BIOS | AMI UEFI (64 Mbit) |
| Watchdog Timer | Programmable timer with 255 intervals (1 ~ 255 sec) |
| Hardware Security | TPM 2.0 |
| Processor | Intel® Atom® E3950 quad core, 1.6GHz (up to 2GHz) |
| Memory | 8GB of DDR3L, 1600MHz |
| Graphics Engine | Intel® HD Graphics 505 |
| Ethernet | Intel® i210-IT GbE, IIEEE802.1AS, 802.3az |
| LED Indicators | Power, Storage, LTE, Wi-Fi, Programmable LED |
| Storage | 1 x M.2 2242 B-key (SATA signal) |
| Communication | 1 x M.2 (E-key)(PCIe/USB2.0 signal) socket for 2230 Wi-Fi/Bluetooth module expansion 1 x M.2 (B-key)(USB2.0/USB3.0 signal) socket for 3042/3052 LTE/5G module expansion 1 x socket (USB signal) for MultiTech Dragonfly™ card |
| Internal Maintenance Interface | 1 x USB 3.0, 1 x USB 2.0, 1 x DP |
I/O Interface |
|
| Serial Ports | 2 x RS-422/485, 50 ~115.2 kbps (terminal block with 2500VDC isolation protection) 1 x RS-232, 50 ~115.2 kbps (terminal block, console port) |
| LAN | 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u, 1000BASE-T Fast Ethernet |
| Power Connector | 1 x 3-pin terminal block |

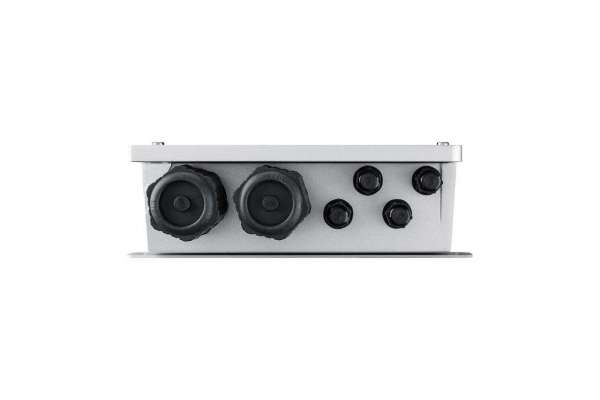

| Cable Gland |
|
Environment |
|
| Operating Temperature | -40 ~ 70 °C/-40 ~ 158 °F @ 5 ~ 85% RH with 0.7 m/s airflow |
| Storage Temperature | -40 ~ 85 °C/-40 ~ 185 °F |
| Relative Humidity | 10 ~ 95% RH @ 40 °C/104 °F, non-condensing |
| Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis |
| Ingress Protection | IP69K, IP68 |
