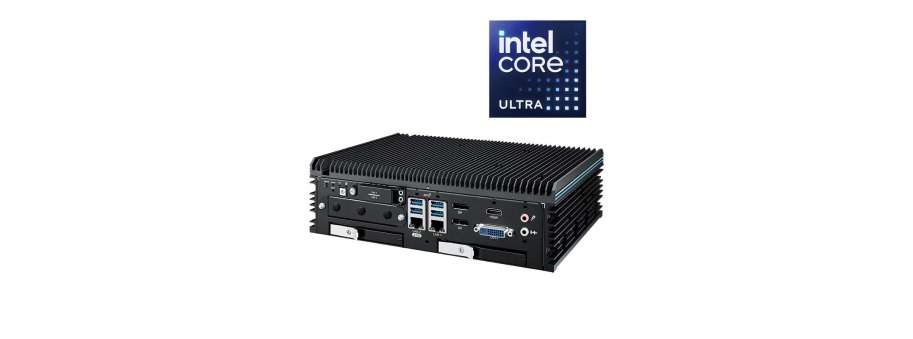

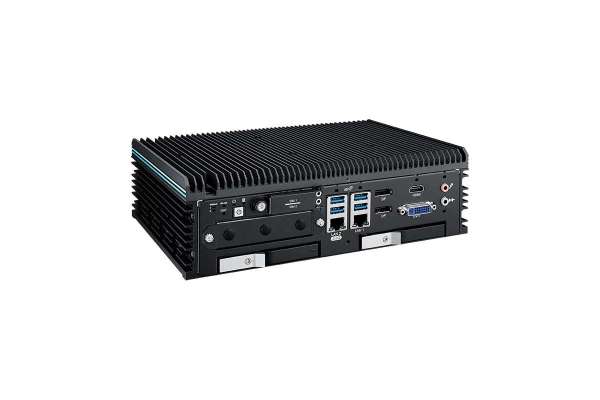

High-performance fanless computing system on Intel® Core™ Ultra 200S Series processor (Arrow Lake), 9 LAN, 4 COM Vecow ECX-4000
The Vecow ECX-4000 is a high-performance fanless AI computing system designed to meet the demands of modern edge AI applications. Powered by the Intel® Core™ Ultra 200S Series processor (Arrow Lake) and Intel® W880 PCH, the system leverages Intel’s advanced hybrid architecture, which combines P-cores and E-cores for up to 24 cores, an integrated NPU for AI acceleration and Intel® Xᵉ LPG Graphics. These capabilities make the ECX-4000 ideal for use cases such as in-vehicle computing, intelligent logistics, public security, and industrial AI deployments.
- Intel® Core™ Ultra 200S Series processor (Arrow Lake) running with Intel® W880 PCH features accelerated hybrid computing performance, up to 24 cores
- Intel® Integrated NPU and Xᵉ LPG Graphics Architecture optimize system workload and AI Acceleration, delivering up to 36 TOPS
- 2 DDR5 6400MHz Memory supports up to 96GB, optional with ECC
- 2 10G SFP+, 8 2.5GigE LAN with 4 PoE+, 1 GigE LAN
- 6 USB 3.2 Gen 2, 16 Isolated DIO, 4 COM RS-232/422/485
- 2 front-access 2.5" SSD Tray, optional M.2 SSD Tray
- Expansion: 2 M.2 Key B, 1 Key E, SUMIT A, B
- Wireless connection: 5G/WiFi 7/BT/4G/LTE/GPRS/UMTS
- DC 9V to 50V Redundant Power Input, Software Ignition Control
- Supports Intel® vPro, TSN, TCC, and TPM 2.0
- Optional VHub AIoT Solution Service supports OpenVINO™ Toolkit for Edge AI applications
Additional information
System |
|
| Processor | Intel® Core™ Ultra 200S Series processors, 65W/35W, max 24-core (Arrow Lake-S) |
| Chipset | Intel® W880 Chipset |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR5 6400MHz CSODIMM, up to 96GB (ECC/Non-ECC) |
| OS | Windows 11, Windows 10, Linux |
Integrated AI Processor |
|
| NPU | Intel® AI Boost dedicated Low Power AI Engine |
| GPU | Intel® Xᵉ LPG Graphics architecture, up to 4 Xᵉ Graphics Engines |
| Display |
|

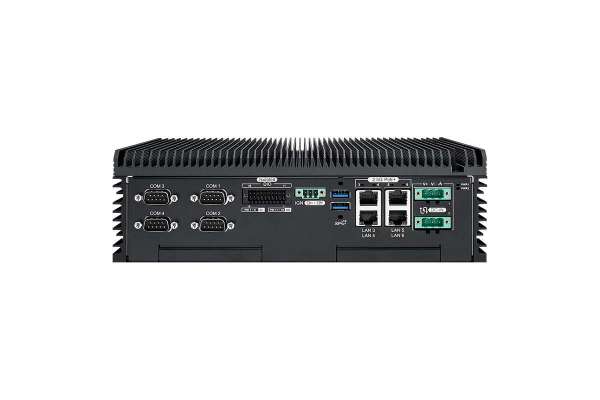

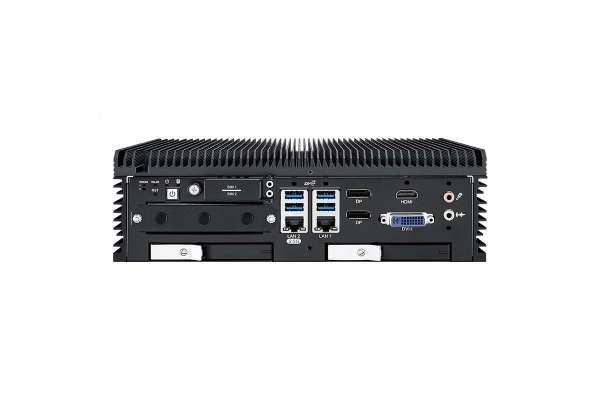

I/O Interface |
|
| Serial | 4 COM RS-232/422/485 |
| USB | 6 USB 3.2 Gen 2 |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 2 External SIM Card Sockets |
Expansion |
|
| M.2 |
|
| SUMIT | 2 SUMIT Slot (Optional) |
Storage |
|
| SATA |
2 SATA III (6Gbps) support software RAID 0, 1 (Storage devices please refer to Order Information) |
| M.2 |
|
Audio |
|
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet |
|
| LAN 1 | Intel® I219LM GigE LAN supports iAMT |
| LAN 2 | Intel® I226IT 2.5GigE LAN supports TSN |
PoE |
|
| LAN 3 | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
| LAN 4 | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
| LAN 5 | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
| LAN 6 | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
2.5G Ethernet (ECX-4025R/4025) |
|
| LAN 7 | Intel® I225 2.5GigE LAN |
| LAN 8 | Intel® I225 2.5GigE LAN |
| LAN 9 | Intel® I225 2.5GigE LAN |
10G SFP+ (ECX-4071R/4071) |
|
| LAN 7 | Intel® X710-BM2 supports IEEE 802.3 10GBASE-T |
| LAN 8 | Intel® X710-BM2 supports IEEE 802.3 10GBASE-T |
Power |
|
| Power Input 1 | DC 9V to 50V, Redundant Power Input |
| Power Input 2 | DC 9V to 50V, Redundant Power Input |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
Others |
|
| TPM | Infineon SLB9672 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechanical |
|
| Dimension | 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11") |
| Weight | 3.8 kg (8.38 lb) |
| Mounting |
|
Environment |
|
| Operating Temperature |
35W TDP CPU : -40°C to 75°C (-40°F to 167°F), Fanless 65W TDP CPU : -40°C to 55°C (-40°F to 131°F), Fanless ECX-4025R/ECX-4025 : -40°C to 70°C (-40°F to 158°F), Fanless ECX-4071R/ECX-4071 : -25°C to 55°C (-13°F to 131°F), Fanless |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @75°C |
| Shock |
|
| Vibration |
|
| EMC | CE, FCC, ICES, EN50155, EN50121-3-2 |
