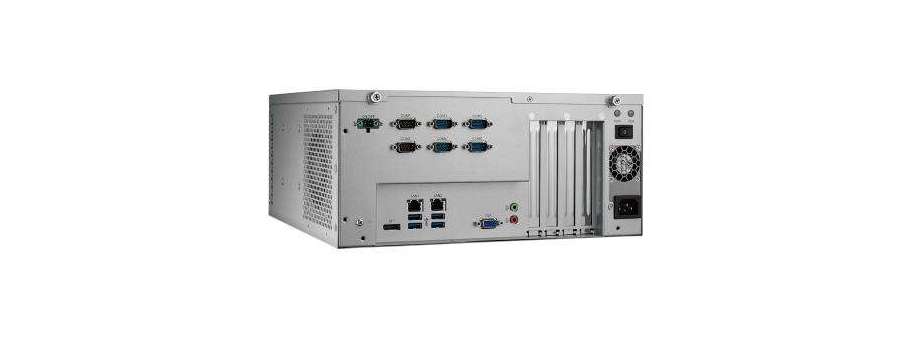

Front Access Micro Computer, Intel 10th Gen Core i CPU (LGA1200), 6 COM, 4 USB, and 2 Expansion slots Advantech AIMC-3405
- Desktop CPU computing performance with smart fan control

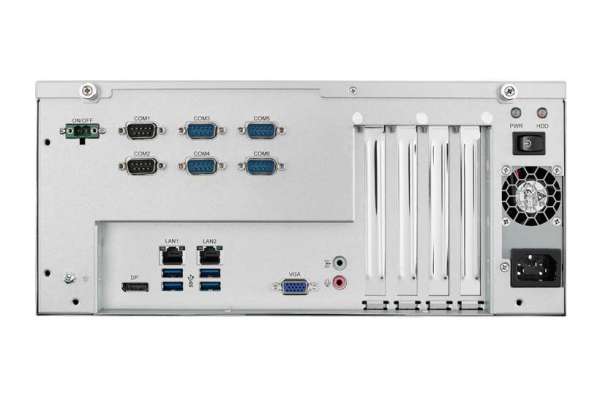

- Rich and single side I/O on the front for easy maintenance
- PCIe slots for add-on card expansion
- Dual 3.5" SATA HDD bays for large volume data storage
- 2-Pin Remote Switch connector suitable for IEM equipment remote access
Processor System |
||||||
| CPU | i9-10900E/ i9-10900TE | i7-10700E/ i7-10700TE | i5-10500E/ i5-10500TE | i3-10100E/ i3-10100TE | G6400E/ G6400TE | G5900E/ G5900TE |
| Core Number | 10/10 | 8/8 | 6/6 | 4/4 | 2/2 | 2/2 |
| Base Frequency | 2.8GHz/1.8GHz | 2.9GHz/2.0GHz | 3.1GHz/2.3GHz | 3.2GHz/2.3GHz | 3.8GHz/3.2GHz | 3.2GHz/3.0GHz |
| L3 Cache | 20MB/20MB | 16MB/16MB | 12MB/12MB | 6MB/6MB | 4MB/4MB | 2MB/2MB |
| TDP (W) | 65W/35W | 65W/35W | 65W/35W | 65W/35W | 58W/35W | 58W/35W |
| Chipset | H420E | H420E | H420E | H420E | H420E | H420E |
| BIOS | AMI EFI 256 Mbit SPI | AMI EFI 256 Mbit SPI | AMI EFI 256 Mbit SPI | AMI EFI 256 Mbit SPI | AMI EFI 256 Mbit SPI | AMI EFI 256 Mbit SPI |
Additional information
Memory |
|
| Technology | Supports Dual Channel DDR4 2933 (i9/i7 CPU) / 2666 (i5/i3 CPU) / 2400 (Pentium/ Celeron CPU) |
| Max. Capacity | 64 GB, 32 GB per DIMM socket |
| Socket | 2x 288pin U DIMM (Non-ECC) |
Graphics |
|
| Chipset Integrated | Integrated Intel HD Graphics |
| Display |
|
Expansion slot |
|
| PCI Express x16 (Gen 3) | 1 |
| PCI Express x4 (Gen 3) | 1 |
Ethernet |
|
| Interface | 10/100/1000 Mbps |
| Controller |
|
| Connector | 2 RJ-45 |
Drive bay |
|
| 3.5" HDD (internal) | 2 (SATA 3.0) |
I/O Interface |
|
| USB | 4 USB 3.2 (Gen 1) |
| Serial | 1 RS-232/422/485, 5 RS-232 |
| Remote switch (on/off) | 1 (2-pin terminal block connector) |
| Audio | 1 Mic-in, 1 Line-out |
Power Supply |
|
| Output Rating | AC 250W, ATX |
| Input Voltage | 100 VAC ~ 240 VAC |
Cooling |
|
| System Fan | 1 (8cm / 46.62CFM) |
| Air Filter | Optional module |
Miscellaneous |
|
| LED Indicators | Power, HDD |
| Control | Power on/off switch, reset |
Environment |
|
| Temperature |
|
| Humidity |
|
| Vibration |
|
| Shock | 10G, half sine wave, 11 ms duration |
| EMC | CCC |
| Safety | CCC |
Physical Characteristics |
|
| Dimension (WxHxD) | 330 x 148 x 300 mm |
| Weight | 6.3 kg |
