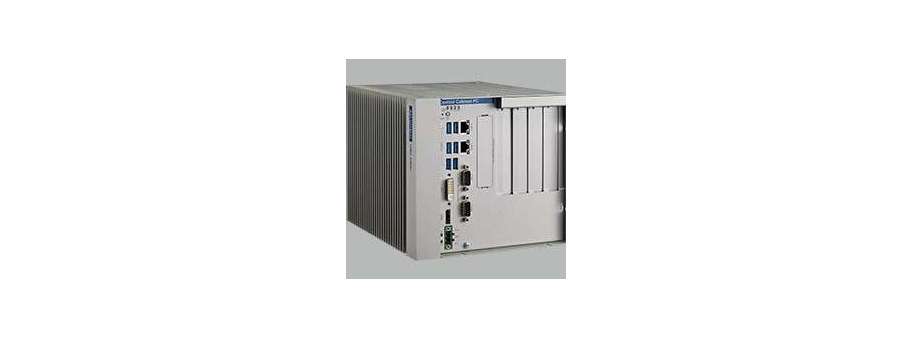

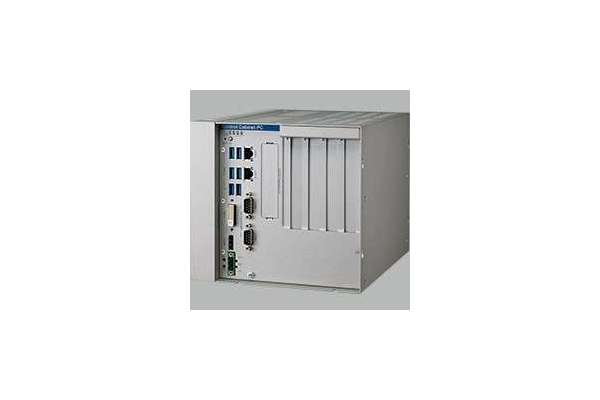

Intel® Core™ i7/Celeron G3902E Automation Computer Advantech with 4 PCI(e) expansion slots, 2 x GbE, 2 x mPCIe, HDMI, DVI-I UNO-3285C

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-3285C-674AE Промисловий компактний комп'ютер Advantech UNO-3285C, i7-6822EQ, 8GB RAM w/ simplified chassis  94 674,4
UNO-3285C-6C3AE Компактний промисловий комп'ютер Adavntech G3902E, 1.6GHz, 4GB RAM w/ simplified chas  74 097,4

The high-performance fanless control cabinet PC UNO-3285C equipped with a Intel® 6th Gen Core™ i7/Celeron G3902E processor and QM170 PCH chipset, rich I/O including 6 x USB 3.0, 2 x GigaLAN, 2 x RS-232/422/485 as well as DVI-I and HDMI display interfaces, UNO-3285C is designed to deliver high-performance computing and maximum flexibility for industrial automation applications. The provision of up to 4 expansion slots (2 x PCIe x8, 2 x PCI) supports the integration of modular peripherals and ensures flexible installation in diverse cabinet configurations. In addition to an exchangeable RTC battery that can be accessed via the removable top cover for convenient maintenance, the system features dual power inputs that ensure a stable power supply

  • Intel® 6th Gen Core™ i7-6822EQ Quad Core Processor with 8GB DDR4 Memory
  • Intel® Celeron G3902E Dual Core Processor with 4GB DDR4 Memory
  • 2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 1 x DVI-I, 1 x HDMI
  • 2 x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast slot, 1 x mSATA slot (optional)
  • Dual storage support
  • Supports Fieldbus Protocol by iDoor Technology
  • Dual power input for power redundancy
  • Front LED indicator design for monitoring system status

Additional information

General

Certification CE, UL, CCC, FCC, BSMI
Dimensions (W x D x H) 196.6 x 238 x 177 mm (7.9" x 9.4" x 7")
Form Factor Regular Size
Mounting Stand mount
Weight (Net) 4.7 kg (10.3 lbs)
Power Requirements 12-36 VDC
Power Consumption 44W (Typical), 120W (Max)
OS Support WIN7/8, WES7, Win10 Ent. LTSC, AdvLinuxTU

System Hardware

BIOS AMI UEFI 128Mbit Flash BIOS
Watchdog Timer Programmable 255 levels timer interval, from 1 to 255 sec
Processor
  • Intel® Core™ i7-6822EQ 2.0GHz Quad Core, 8MB L2 (UNO-3285C-674AE)
  • Intel® Celeron G3902E 1.6GHz Dual Core, 2MB (UNO-3285C-6C3AE)
System Chip Intel QM170
Memory
  • Built-in 8GB DDR4 2133 MHz, two sockets support up to 32GB, UNO-3285C-674AE
  • Built-in 4GB DDR4 2133 MHz, two sockets support up to 32GB, UNO-3285C-6C3AE
Graphics Engine Intel HD Graphics
Ethernet
  • LAN A: Intel® i210-IT GbE, IIEEE802.1AS, 802.3az
  • LAN B: Intel® i219-LM GbE, Intel® AMT, IEEE802.1AS, 802.3az
LED Indicators LEDs for Power, LAN, COM (Tx/Rx), battery and HDD
Storage One mSATA slot; One CFast slot (sh) Two 2.5" SATA HDD/ SSD (Compatible with 9.5mm height HDD)
Expansion 2 Full-size mPCIe 2 x PCIex8, 2 x PCI

I/O Interfaces

Serial Ports 2 x RS-232/422/485 with DB9 connectors RS-485 auto flow control, 50~115.2kbps
LAN Ports 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
USB Ports 6 x USB 3.0 Ports
Displays
  • 1 x DVI-I, supports 1920 x 1080 @ 60Hz 24bpp
  • 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp
Power Connector 3 Pin, terminal Block to support dual power input

Environment

Operating Temperature -20 ~ 60°C with 0.7m/s airflow environment
Storage Temperature -40 ~ 85°C
Relative Humidity 10 ~ 95% RH, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms (SSD)
Vibration Protection Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (SSD)
