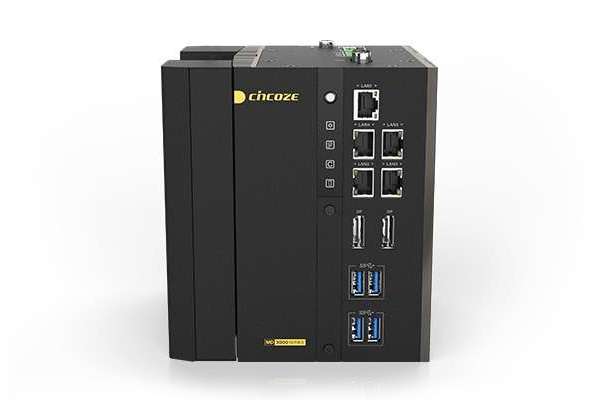

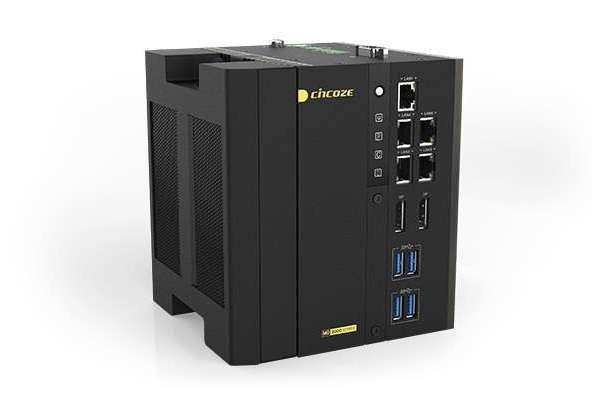

14/13/12th Generation Intel Core Series Processors, High Performance and Scalable DIN-Rail Computer Cincoze MD-3000

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Designed for workstations and machinery in machine vision and smart manufacturing, the Cincoze MD-3000 series is a unique DIN-Rail embedded computer with compact size, excellent performance, broad expandability, and high reliability. - Small and powerful: The body is only 150 mm high but supports a desktop-grade Intel® Core™ CPU. This easily copes with high-speed image processing and AI applications. - Small and expandable: Includes multiple native high-speed and industrial I/O and M.2 expansion slots. Supports up to a six-slot Scalable Expansion Deck (SED), allowing flexible installation of Scalable Expansion Modules (SEMs) for additional I/O, storage, and wireless transmission functions. - Small and reliable: Consistent rugged design that passes multiple industrial standards (vibration resistant, shock resistant, EMC, safety, etc.) to ensure long-term stable operation in harsh environments. This makes it the best computing platform for machine vision applications at smart manufacturing sites.

  • Intel® 14/13/12th Gen Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processor

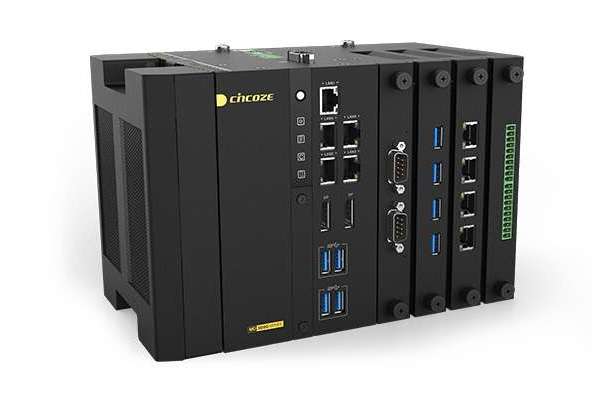

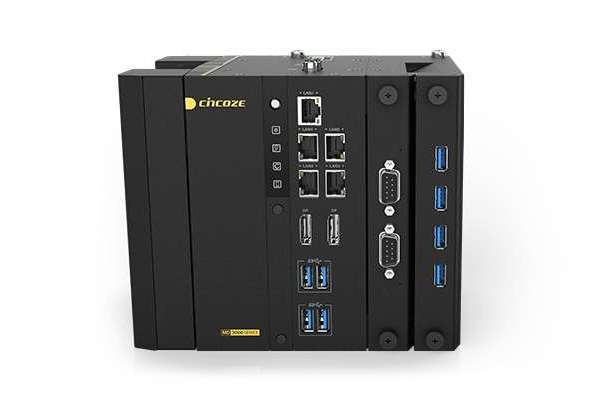

  • Scalable Design with Optional Scalable Expansion Deck for I/O Modules Expansion
  • Compact Size with DIN-Rail Mount Support
  • Supports Dual PCIex4 NVMe SSD with RAID Function

Additional information

System
Processor
  • 14th Generation Intel® Raptor Lake-S Refresh Series CPU
  • 13th Generation Intel® Raptor Lake-S Series CPU
  • 12th Generation Intel® Alder Lake-S Series CPU
Chipset Intel R680E Chipset
Memory
2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB
- Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.
- Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.
BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
  • Integrated Intel® UHD Graphics 730: Core™ i3
  • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®/Intel® Processor
Maximum Display Output Supports Dual Independent Display
Display Port 2x DisplayPort Connector: 4096 x 2304 @ 60Hz * Verified maximum DP resolution: 3840x2160 @ 60Hz

I/O
LAN
5x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2~5: Intel® I210
COM 1x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB 4x USB 3.2 Gen1x1(5Gpbs), Type A

Storage / Expansion
M.2 Key M Socket
  • 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4), Support Storage / Add-on Card Expansion
  • 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA 3.0), Support Storage / Add-on Card Expansion
Expansion Deck 1x PCIex16 interface for Optional Scalable Expansion Deck

Other Function
RAID Supports RAID 0/1/5/10
External FAN Connector 1x External FAN Connector (Support Smart Fan by BIOS)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Watchdog Timer Software Programmable, Supports 256 Levels System Reset
Status LED Indicator
  • Power LED
  • Storage LED
  • Thermal LED
  • GPIO LED

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block
Max Power Consumption
  • 35W CPU: 195.2W
  • 65W CPU: 279.4W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
Inrush Current (Peak)
  • 35W CPU: 9.0A@24V
  • 65W CPU: 9.026A@24V

Physical
Dimension ( W x D x H ) 135.5 x 132 x 152.2 mm
Weight Information 3.03 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / DIN-RAIL Mount
Physical Design
  • Cableess Design
  • Jumperless Design

Reliability & Protection
Reverse Power Input Protection Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF 356,683 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3

Operating System
Windows Windows® 10, Windows® 11
Linux Ubuntu 22.04

Environment
Operating Temperature
  • 35W TDP Processor: -40°C to 65°C (-40 °F to 149°F)
  • 45W TDP Processor: -40°C to 55°C (-40°F to 131°F)
  • 65W TDP Processor: -40°C to 45°C (-40°F to 113°F) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With external fan, extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C (-40 °F to 185°F)
Relative Humidity 95%@65°C
Shock Operating, 30 Grms, Half-sine 11 ms Duration (w/ External Fan & SSD, according to IEC60068-2-27)
Vibration
  • Random Vibration: Operating, 3 Grms, 5-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-64)
  • Sinusoidal Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ External Fan & SSD, according to IEC60068-2-6)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment
EMC
- EN/BS/IEC 61000-6-4: 2019 Class A
- EN/BS/IEC 61000-6-2: 2019
Safety UL, cUL, CB, IEC, EN 62368-1
