Hirschmann MACH100 Switches

Cost-effective 19" managed switches of the Hirschmann MACH100, from 8 to 24 ports, with a choice of a fully gigabyte configuration and uplinks of up to 10 gigabits, for office buildings

Networks and Communications >> Hirschmann™ Industrial Ethernet switches

 Price and avalability

Manufacturer: Hirschmann™

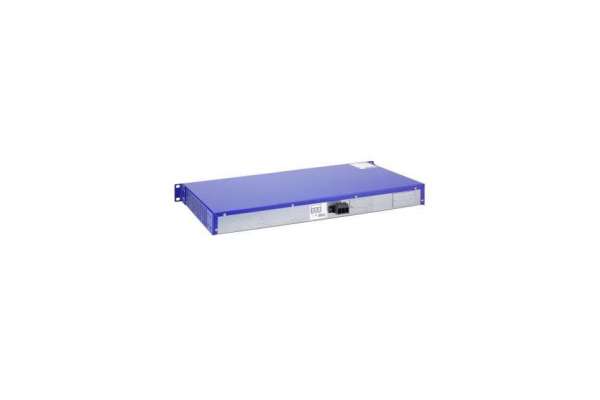

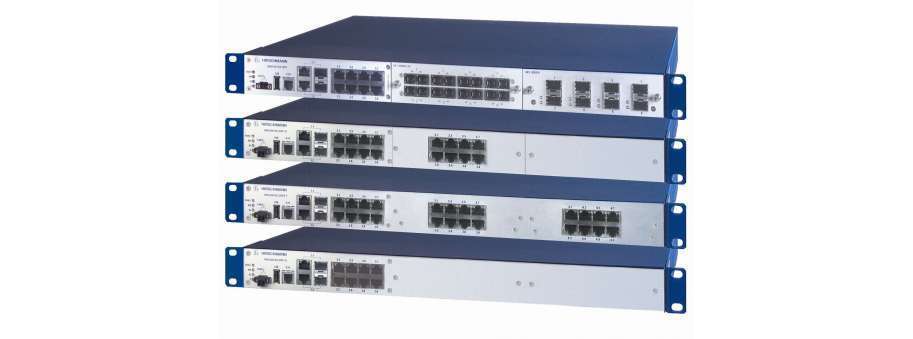

The Hirschmann MACH 100 family of switches is either a version with a fixed number of ports (from 8 to 24), or a modular version with eight fixed ports and two slots for media expansion modules. Both versions of the switches have gigabit combo ports (RJ45 / SFP) as uplink ports. In addition to these models, there are series of fully gigabit switches and 10Gb switches.

Key Features

  • Designed for installation in 19” locker (1U);
  • The switch is available as a version with fixed ports or as a modular system;
  • A flexible and economical solution, with high quality performance and a long life cycle;
  • The final equipment connected to the MACH 100 can be powered by PoE (max. up to 16 PoE + ports);
  • Precise synchronization via the PTPv2 protocol;
  • Maximum flexibility, thanks to various versions (10 Gigabit optical uplinks, fanless cooling, redundant power supply, etc.);
  • Various backup methods provide high network availability;
  • High level of resistance to shock and vibration, protection from electrostatic discharges and magnetic fields;
  • Operating temperature range from 0 ° C to + 50 ° C, which makes powerful cooling systems in control cabinets unnecessary;
  • USB interface for connecting the ACA 21 auto-configurator, which can be used to save the configuration, as well as update or roll back the operating system;
  • Layer 3 routing, allows you to create subnets and connect them together;
  • Low cost (compared to conventional industrial switches);

Price and avalability

Partnumber Description Price VAT incl Avalability

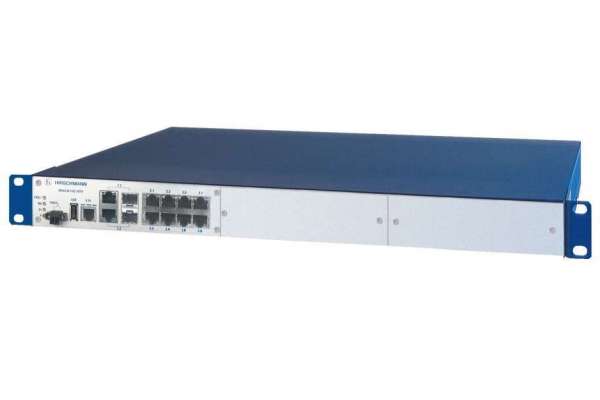

943969001 Коммутатор Hirschmann MACH102-8TP 26 port Fast Ethernet/Gigabit Ethernet Industrial Workgroup Switch (fix installed: 2 x GE, 8 x FE; via Media Modules 16 x FE), managed, Software Layer 2 Professional, fanless Design, 100/220 V AC  62 955,6
943969101 Комутатор Hirshmann MACH102-8TP-R 8x 10/100TX 2x GE combo ports (100/1000 Mbits/s RJ45 or SFPs) 2x 8 ports media module slot, redundant 100/220 V AC  80 614,2
943969301 Коммутатор Hirschmann MACH102-8TP-FR 10 ports in total; 8x (10/100 BASE-TX, RJ45) and 2 Gigabit Combo ports  73 798,5

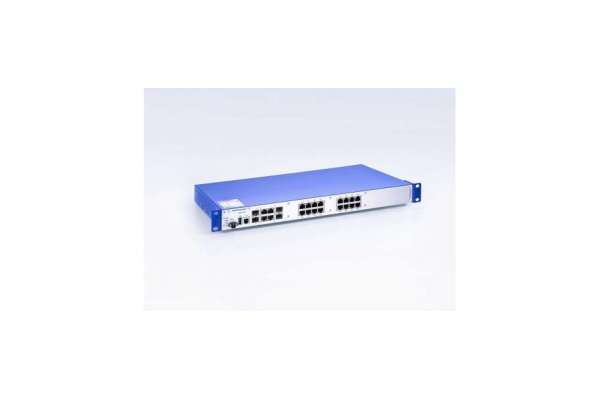

942003002 Коммутатор Hirschmann MACH104-20TX-F-L3P 20 x (10/100/1000 BASE-TX, RJ45) and 4 Gigabit Combo ports (10/100/1000 BASE-TX, RJ45 or 100/1000 BASE-FX, SFP)  258 362,0
942003101 Керований комутатор Hirschmann MACH104-20TX-FR 24 ports in total; 20x (10/100/1000 BASE-TX, RJ45) and 4 Gigabit Combo Ports (10/100/1000 BASE-TX, RJ45 or 100/1000 BASE-FX, SFP)  162 624,0

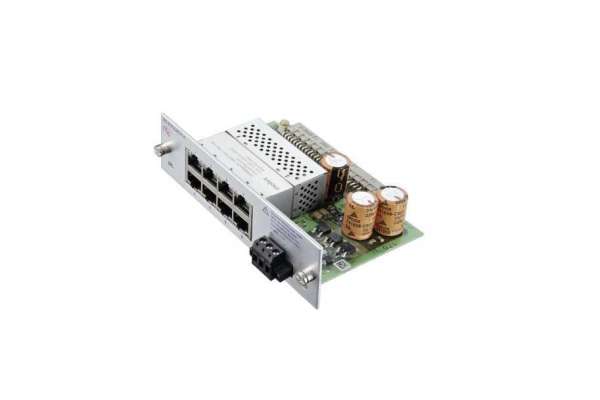

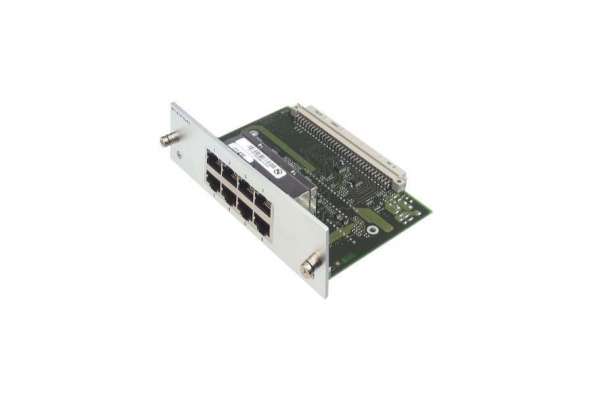

943970101 Медіа модуль Hirshmann M1-8MM-SC 8 x 10/100 Mbit/s MM SC  36 782,0
943865001 Модуль M-FAST SFP-MM/LC  7 053,5
943945001 Модуль M-FAST SFP-MM/LC EEC, SFP Transceiver  0,0
