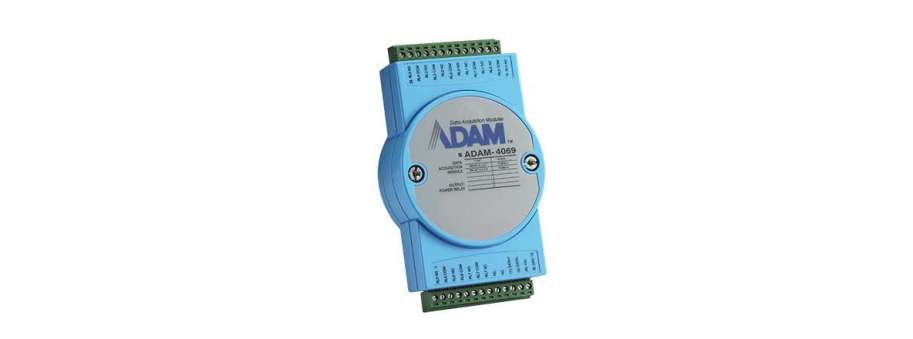

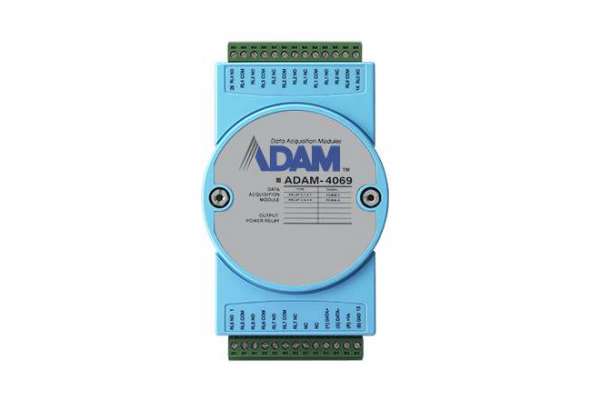

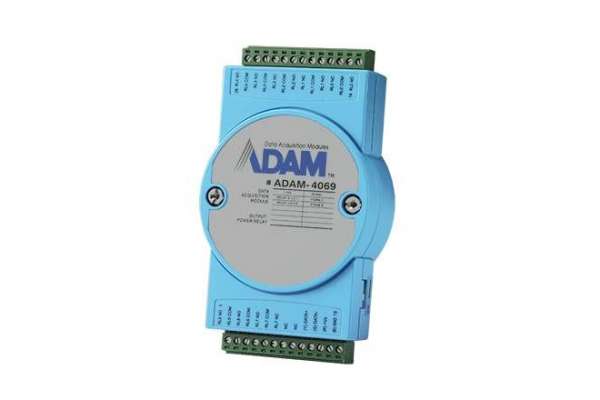

8-ch Power Relay Output Module with Modbus Advantech ADAM-4069

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-4060-F 4-Ch Relay Output Module w/ Modbus  6 416,7
ADAM-4068-C Модуль введення-виведення Advantech ADAM-4068, 8-channel Relay, RS485, Modbus  7 746,6
ADAM-4069-B Модуль вводу-виводу Advantech с RS485 релейнbх виходів типа A з Modbus.  9 900,1

ADAM-4069 is designed for on/off control in high-voltage applications. The major feature of ADAM-4069 is its power relay rating at 240 V AC and 5 A. This range can satisfy most requirements for driving externally controlled devices such as lights, fans, alarm systems, and various electronic devices in industrial automation, security, building and home automation applications. ADAM-4069 also supports the Modbus/RTU protocol and ADAM ASCII commands. Besides, it provides four form A channels and four form C channels.

  • 8ch power relay
  • Protocols:Modbus RTU, ASCII
  • Watchdog timer to recover the system

Additional information

General

Certification FCC, CE
Connectors 2 x plug-in terminal blocks (#14 ~ 28 AWG)
Power Consumption
  • 1.3 W @ 24 V DC typ.
  • 2.3 W @ 24 V DC max
Watchdog Timer System (1.6 second) & Communication
Supported Protocols ASCII command and Modbus/RTU

Relay Output

Breakdown Voltage 1,000 VAC (50/60 Hz)
Channels
  • 4 x Form A
  • 4 x Form C
Contact Rating (Resistive)
  • 5 A @ 250 VAC
  • 5 A @ 30 VDC
Initial Insulation Resistance 1 GΩ min. at 500 VDC
