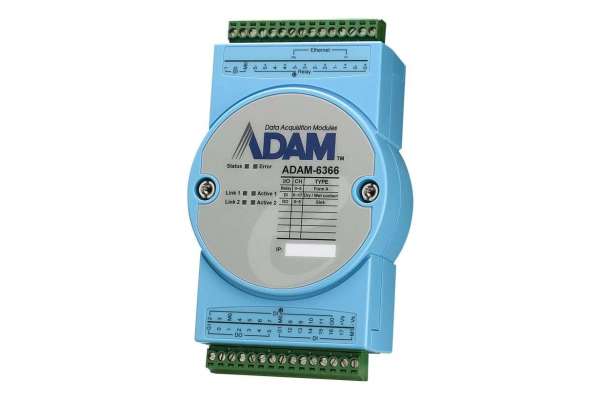

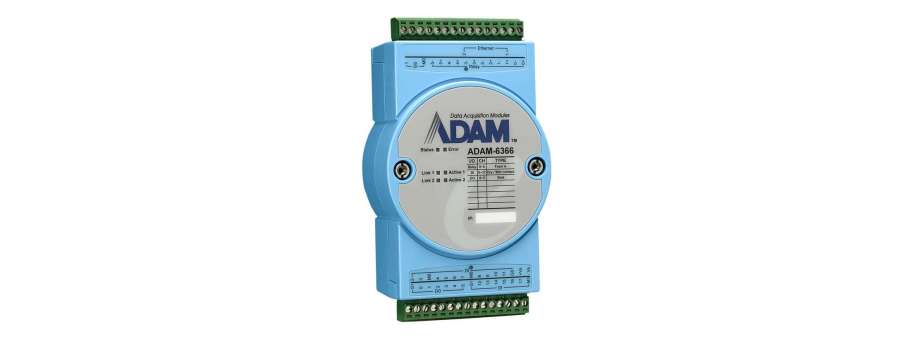

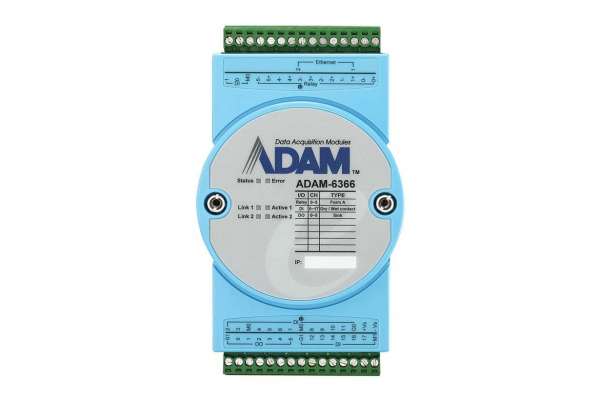

IoT OPC UA Ethernet I/O - SSR Relay Output Module Advantech ADAM-6366
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ADAM-6317-A1 | Модуль програмований дискретного вводу виводу Advantech ADAM-6317 OPC UA and Security Remote I/O_AI Module, 8AI/11DI/10DO | 23 894,1 | |
| ADAM-6350-A1 | Модуль програмований дискретного вводу виводу Advantech OPC UA and Security Remote I/O_DI/O Module | 20 456,3 | |
| ADAM-6366-A1 | Модуль програмований дискретного вводу виводу Advantech OPC UA and Security Remote I/O_Relay Module | 21 034,4 |
Advantech ADAM-6300 series is an innovative OPC UA I/O Module with Modbus protocol, which can link with SCADA and the cloud without the need for gateways. Moreover, through the OPC UA and built-in security IC, data is highly secured throughout the OT and IT levels.
- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution save cost
Additional information
Relay Output |
|
| Channels | 6 (Form A) |
| Contact rating | 0.25A@250VAC 2A@30VDC |
| Relay-on time | 3 ms |
| Relay-off time | 5 ms |
| Electrical endurance at contact application | Resistive, 0.25A@250VAC: 1x105 operations/min. Resistive, 2A@30VDC: 1x105 operations/min. |
| Insulation Resistance | 1 GΩ |
Digital Input |
|
| Channels | 18 |
| Dry contact |
|
| Wet contact |
|
| DI12~DI17 support 3 kHz counter input | |
| DI12~DI17 support 3 kHz frequency input | |
Digital Output |
|
| Channels | 6 |
| Output type | Sink type, 30 VDC, 0.1A max. per channel |
| DO0~DO5 support 3 kHz pulse output |
