Intel Core i7 IP65 MIL-STD-810 Military T range Passive Cooling RS232 RS485 Wallmount

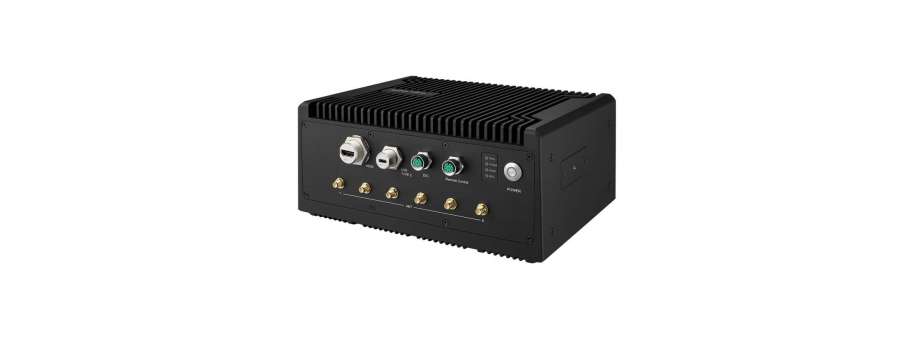

Fanless IP65 System with 13th Gen. Intel® Core™ for Mission-Critical Applications Advantech ROCK-301

Price and avalability

Partnumber Description Price VAT incl Avalability
ROCK-301-V701DA1 i7-1365URE, 8G RAM, 64GB NVME, PoE, Vehicle  242 074,0
  • 13th Gen. Intel® core-i CPU up to i7
  • Fanless Operating Temperature -40 ~71°C
  • IP65 Enclosures for Water/Dust-proof
  • High Speed DDR5 8GB RAM, NVMe 64GB SSD and USB 4
  • M.2 2280 for Storage/AI expansion
  • MIL-STD810H and E-Mark Compliances
  • Off-the-Self I/O Module Expansion
  • 3 Years Warranty and 10 Years Longevity

Additional information

Processor

CPU 13th Gen Inel i7-1365URE (Raptor lake-U)
P-code Base/ Turbo Frequency 1.7/4.9 GHz
E-code Base/ Turbo Frequency 1.7/3.7 GHz
Core 10C (2P+8E)
Cache 12M

Memory

Technology DDR5, 4800 MT/S, non-ECC
Socket
  • 1x 8GB DDR5 RAM
  • 1x SO-DIMM
  • The total memory capacity is up to 64GB (option)

Graphics

Controller Intel® Iris® Xe Graphics/UHD Graphics Architecture
Max Graphic Frequency 1.3GHz
3D graphic HW acceleration DX12, Open GL 4.6, Vulkan 1.2
HW Accelleration OneVPL
Encode/Decode H.2641/AVC. H.265/HEVC

Audio

In/Out/Mic-in None
TPM TPM 2.0

Watchdog Timer

Watchdog 255-level timer interval setup by software

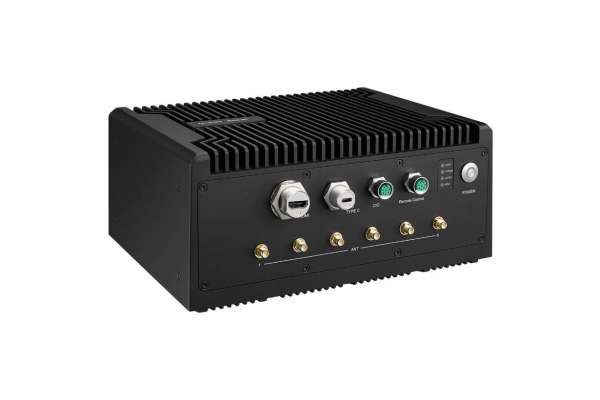

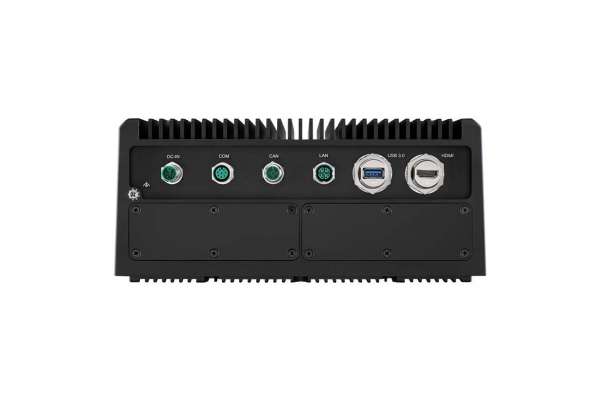

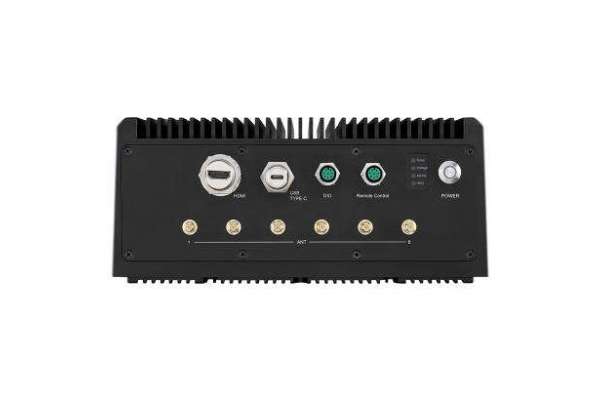

I/O Interface (external)

Display 2x M25 HDMI Type A, resolution up to 4096x 2160 48-60Hz with 8 kV/15 kV ESD protection

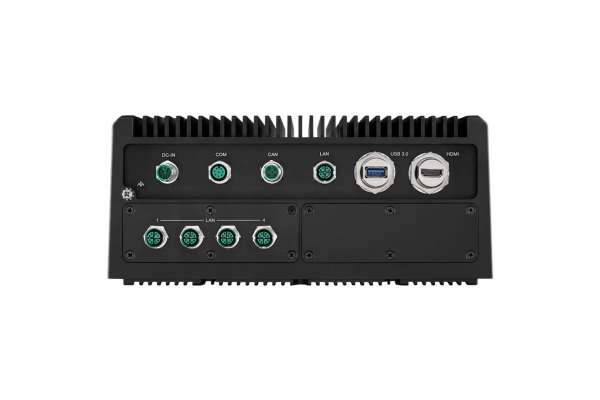

Ethernet
1x M12 X-code Speed: 10/ 100/ 1000M / 2.5G with
8 kV/15 kV ESD protection
4x M12 X-code 10/100 Mbps PoE (IEEE802.3af, maximum power output of 60W) with 8 kV/15 kV
ESD protection * Alternatively, it can achieve speeds of up to 10/100/1000 Mbps when using only 1x M12 x-code port
Serial 1x M12 A-code RS-232/422/485 with 8 kV/15 kV ESD protection
USB
  • 1x M25 USB 3.0/2.0 Type A
  • 1x M20 USB 4.0 type C with 8 kV/15 kV ESD protection
Button 1x Power ON/OFF button ON: green (s0), OFF: red (s5)
LED 4x LED Temperature (Red), Voltage (Red), 4G/5G (Green), storage (Green)
Remote Control (Engineering Use) 1x M12 A-code Power ON/OFF, Power ON LED light (5V), Reset, DC-out 12V/1A
DIO (Engineering Use) 1x M12 A-code 4DI, 4DO with 8 kV/15 kV ESD protection
CANbus (Engineering Use) 1x M12 A-code CANbus 2.0 A/B with 8 kV/15 kV ESD protection
Antenna Point 6
Shielding Grounding 1x screw point

I/O Interface (side)

SIM 1x Nano-SIM reader
Battery 1x Holder (CR2032)
Reset BIOS Settings 1x Button

I/O Interface (internal)

Storage NVME 64GB onboard
SATA 1x SATA and power for 2.5" SSD/HDD (option)
mPCIe 1x Full-size mPCIe/mSATA (PCIe, USB, SATA)
M.2
  • 1x M.2 B key 3042/3052 (PCIe, USB)
  • 1x M.2 M key 2280 (PCIe)
Modular I/O Expansion 1

Software

Microsoft Windows Windows 10, 11
Linux Ubuntu 22.04 LTS

Power

Input voltage 1x M12 L-code Nominal inputs 12V/ 24V (input range 9 to 36V, default 12V)
Venicle Ignition Support power ignition selected by hardware jump or software control lgnition delay timer from 30s to 240s
Protection
  • Over Voltage Protection: 38.5V
  • Over Current Protection: 30A
  • ESD Protection: with 8k contact/ 15kV air ESD protection
  • Surge Protection: 1kV (line to line)
Consumption N/A

Environment*

IP Class (Solid Particle) IP class 6X (operating with protected mating interfaces against water and dust incursion)
IP Class (Water) IP class X5 (operating with protected mating interfaces against water and dust incursion)
Operating Temperature - Military MIL-STD-810H Method 514.8, -40-71 °C/ -40~159.8°F (with extended temperature peripherals)
Storage Temperature - Military MIL-STD-810H Method 514.8, -40 ~ 85 °C/ -40~185 °F
Storage Humidity IEC 60068, 95% @ 40 °C (non-condensing)
Vibration - Military MIL-STD-810H Method 514.8 (vertical 3.98 Grms)
Vibration - Vehicle EN 60721-3-5 (5M3, 10~200Hz, 3 m2/S3)
Shock - Military MIL-STD-810H Method 516.8 (40 Grms)
Shock - Vehicle EN60721-3-5 Class 5M3 (100G, 6ms)
Shock - Eletronic IEC 60068-2-27 (with a total maximum power output of PoE restricted to 30W)
Salt Fog - Military IEC 60068-2-11:2021 Salt mist test (48 hours at 35°C/ 95°F)

EMC*

Eletronic IEC CE/FCC class A
Industry EN61000-6-4, EN61000-6-2
Military MIL-STD-461 (compliance)
Vehicle ISO7637-2

Safety*

Vehicle E-Mark (13)
Eletronic CB, UL

Mechanical*

Enclosure Fanless system
Construction Aluminum housing, Black
Mounting Wall-mount by mounting bracket (option)
Side Panel Heat Sink Yes (option)
Dimensions (W x H x D) 285 x 180 x 115 mm/ 11.22 x 7.08 x 4.52 inch with side panel heat sink (260 x 180 x 115 mm/ 10.23 x 7.08 x 4.52 inch)
