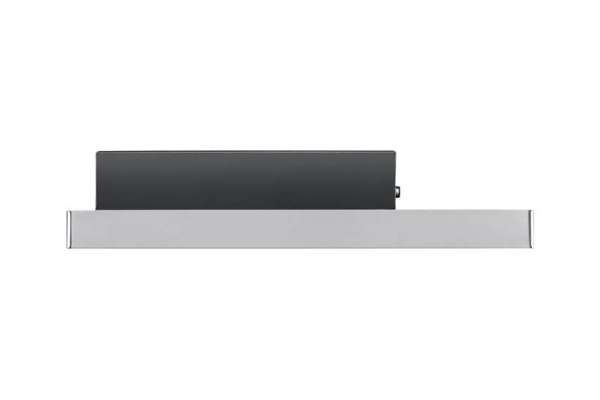

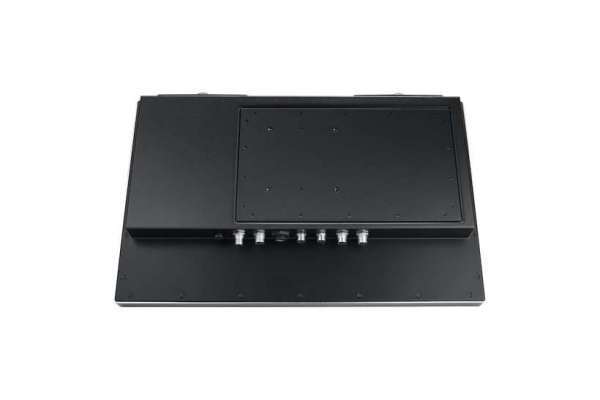

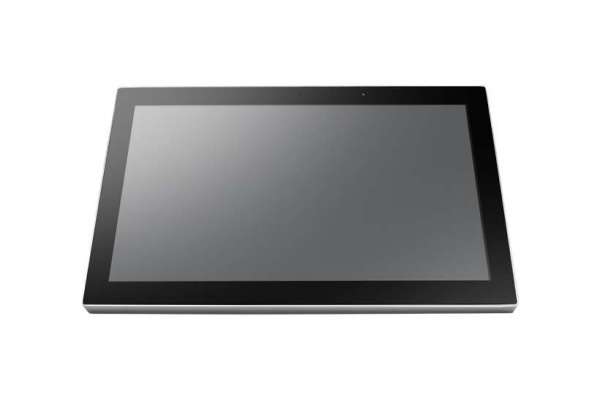

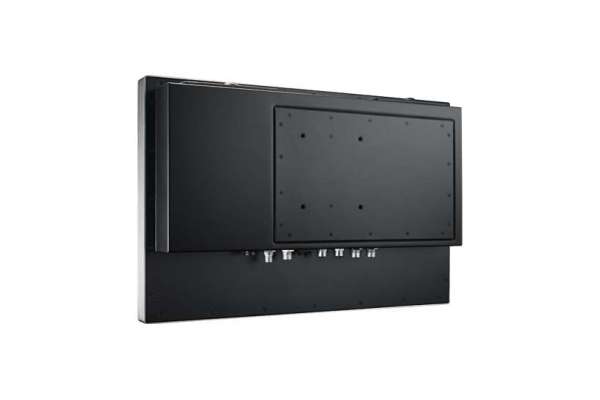

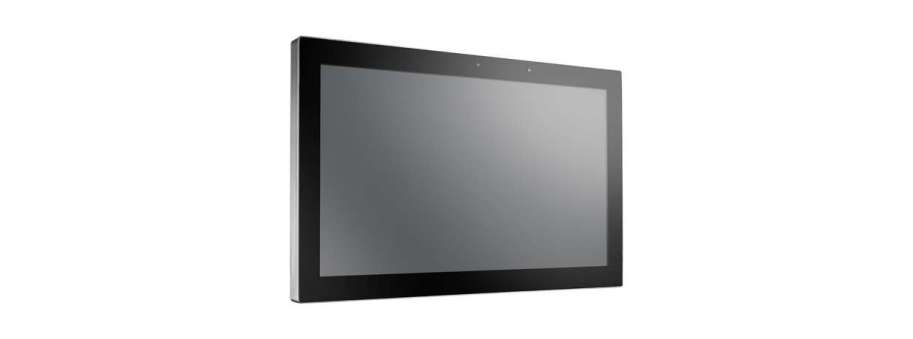

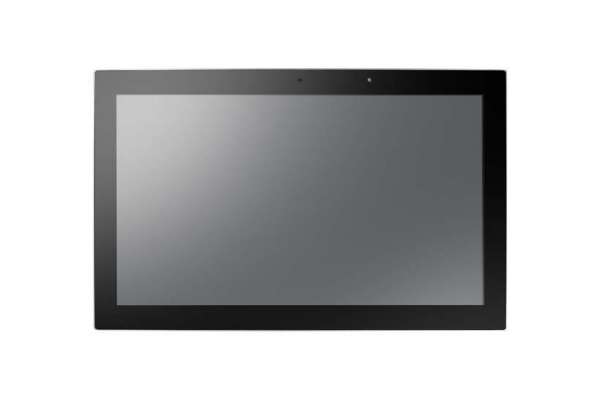

Industrial 21.5" Ubiquitous Touch Computer with Intel® Celeron® J6412 Advantech UTC-520

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-520GT-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" PCT.T/S with Pentium N4200, 4GB RAM, IP65  202 718,0
UTC-520FT-ATB0E Вбудований багатофункціональний панельний комп'ютер Advantech UTC 21.5" PCT.T/S with i5 6300U , 4GB RAM, IP65  252 244,0
UTC-520IT-ATB0E Панельний комп'ютер Advantech UTC-520IT 21.5" PCT.T/S with i5-1145G7E,8G,128G, IP66/69K, -10 ~ 50 °C  261 861,0
UTC-520JT-ATB0E Панельний комп'ютер Advantech UTC-520JT 21.5" PCT.T/S with J6412,8G,64G, IP66/69K  202 588,0

UTC-520 tough series features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • Low power and fanless system design
  • Wide operating temperature range (-10 ~ 50 °C)
  • Build in 64G MLC SSD
  • 21.5" monitor with 16:9 widescreen display
  • IP66/69K rated for full system
  • M12 for all I/O ports
  • Supports both landscape and portrait screen orientations
  • Anit-corrosion enclosure stainless chassis
  • Quickly swappable storage slot (optional)
  • Waterproof Wifi Solution (optional)
  • Build in camera / LED indicter / Light sensor(optional)

Additional information

Model

UTC-520GT-ATB0E UTC-520FT-ATB0E UTC-520IT-ATB0E UTC-520JT-ATB0E

Processor System

CPU Intel® Pentium® N4200 Intel® Skylake Core™ i5-6300U Intel® Core™ i5-1145G7E Intel® Celeron® J6412
Base Frequency

1.1 GHz (N4200/Quad-Core)

1.6 GHz (E3950/Quad-Core)

2.4GHz (Dual-Core) 1.50/ 2.6 GHz/ Quad Core 2.0GHz
Cache L2 Cache 2MB L3 Cache 3MB L3 Cache 6MB 1.5 MB L2 Cache
Memory 1 x 204 pin SO-DIMM DDR3L 1867 MHz up to 8GB 2 x 204 pin SO DIMM DDR3L 1600MHz up to 16 GB 2 x 260 pin SO-DIMM DDR4- 3200 up to 64GB DDR4-3200 up to 32GB
HDD 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)
I/O ports
  • 2 x RS-232 COM (RS-422/485)*
  • 2 x USB 2.0/ 1 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45) (M12 waterproof connector)
  • 2 x RS-232 COM (RS-422/485)*
  • 2 x USB 2.0/ 1 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45) (M12 waterproof connector)
  • 2 x RS-232 COM (RS-422/485)*
  • 2 x USB 2.0/ 1 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45) (M12 waterproof connector)
  • 2 x RS-232 COM (RS-422/485)*
  • 2 x USB 2.0/ 1 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45) (M12 waterproof connector)
Bus expansion Full-size MiniPCIe / M.2 Full-size MiniPCIe / mSATA 1 x E-Key 2230 (PCIe x1, USB2.0, I2C) M.2 B-Key 1 x B-Key 3042 (USB2.0) w/ Nano-SIM M.2 M-Key 1 x M-Key 2280 (PCIe x4 Gen.4 for PCIe SSD), optional SATA 1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module 1x M-Key support SATA M.2 2242 module
Mounting VESA 100 x 100 mm VESA 100 x 100 mm VESA 100 x 100 mm VESA 100 x 100 mm
Dimensions (W x H x D) 540 x 336 x 70 mm 540 x 336 x 70 mm 540 x 336 x 70 mm 540 x 336 x 70 mm
Weight 10.5 kg (23.14Ibs) 10.5 kg (23.14Ibs) 10.5 kg (23.14Ibs) 10.5 kg (23.14Ibs)

OS Support

  • Win 10 IoT Enterprise Android 8.1
  • Linux Ubuntu 18.04
  • Win 10 IoT Enterprise
  • Linux Ubuntu 18.04
  • Win 10 IoT Enterprise
  • Linux Ubuntu 18.04
  • Win 10 IoT Enterprise
  • Android

Environmental Specifications

Operating Temperature 10 ~ 50 °C 10 ~ 50 °C 10 ~ 50 °C 10 ~ 50 °C
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G 0.5G 0.5G
Shock 5G peak acceleration (11 msec. duration) 5G peak acceleration (11 msec. duration) 5G peak acceleration (11 msec. duration) 5G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC, UL, CB, CCC, BSMI CE, FCC, UL, CB, CCC, BSMI CE, FCC, UL, CB, CCC, BSMI CE, FCC, UL, CB, CCC, BSMI
System Protection IP65 Full System IP65 Full System IP65 Full System IP65 Full System

Power Supply

Input Rating DC input 24V / 5A DC input 24V / 5A DC input 24V / 5A DC input 24V / 5A
Power consumption
  • Typical 40W
  • Max. 50W
  • Typical 40W
  • Max. 50W
  • Typical 40W
  • Max. 50W
  • Typical 40W
  • Max. 50W

LCD Display

Size/Type 21.5" TFT LCD with LED backlight 21.5" TFT LCD with LED backlight 21.5" TFT LCD with LED backlight 21.5" TFT LCD with LED backlight
Max.Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Max. Color 16.7M 16.7M 16.7M 16.7M
Pixel Pitch (um) 248.25 (H) x 248.25 (V) 248.25 (H) x 248.25 (V) 248.25 (H) x 248.25 (V) 248.25 (H) x 248.25 (V)
Brightness (cd/m2 ) 250 Nits, Optional 400 and 1200 Nits Panel 250 Nits, Optional 400 and 1200 Nits Panel 250 Nits, Optional 400 and 1200 Nits Panel 250 Nits, Optional 400 and 1200 Nits Panel
View Angle 178°/178° 178°/178° 178°/178° 178°/178°
Camera Optional Optional Optional Optional
Light Sensor w LED Indicator Optional Optional Optional Optional

Touch Screen Option (PE/GE)

Type Projected Capacitive. Glass Panel (7H Hardness) Projected Capacitive. Glass Panel (7H Hardness) Projected Capacitive. Glass Panel (7H Hardness) Projected Capacitive. Glass Panel (7H Hardness)
Cover Glass Surface Treatment Optional (AR / AG / Vandal Proof) Optional (AR / AG / Vandal Proof) Optional (AR / AG / Vandal Proof) Optional (AR / AG / Vandal Proof)
Light Transmission 88% ± 2% 88% ± 2% 88% ± 2% 88% ± 2%
Controller USB Interface USB Interface USB Interface USB Interface
