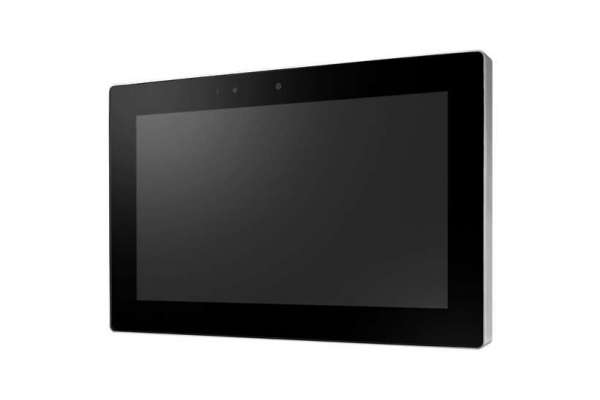

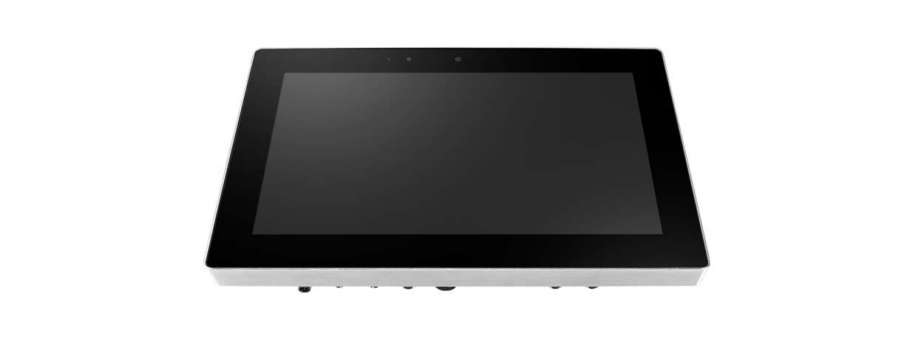

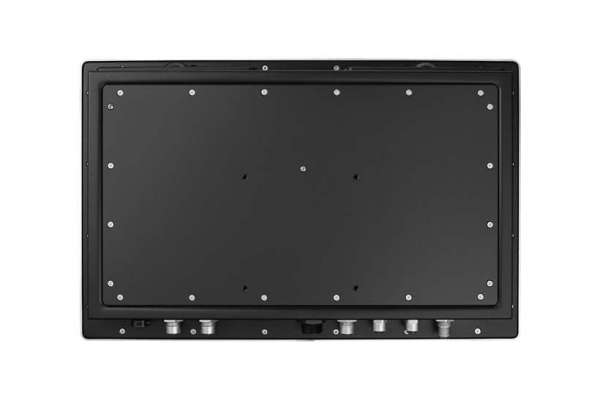

15.6" Ubiquitous Touch Computer (IP66/69K) with Intel® Core™ i5-1145G7E/ Intel® Celeron® J6412 Advantech UTC-515IT-ATB0E

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-515IT-ATB0E Панельний комп'ютер Advantech UTC-515IT 15.6" з захистом по колу IP66/69K PCT.T/S with i5-1145G7E, 8G, 128G  274 027,0
UTC-515JT-ATB0E 15.6" PCT.T/S w/J6412,4G ram,128G,IP66/69K  201 439,0

UTC-515 tough series features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • Low power and fanless system design
  • Wide operating temperature range (-10 ~ 50 °C)
  • Build in 128G TLC SSD

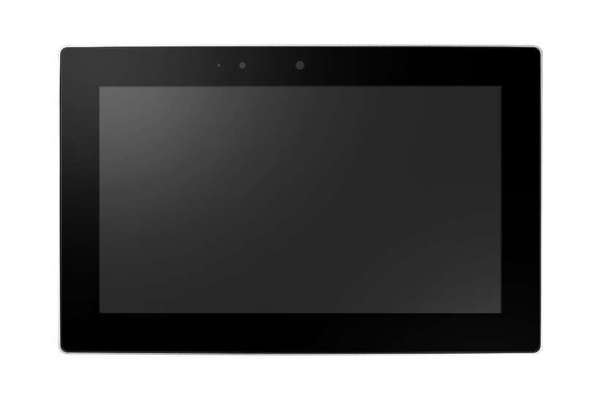

  • 15.6" monitor with 16:9 widescreen display
  • IT66/69K for full system

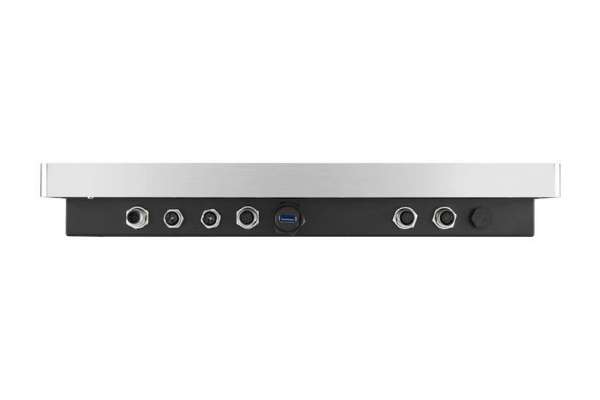

  • M12 for all I/O ports
  • Supports both landscape and portrait screen orientations
  • Anit-corrosion enclosure stainless chassis
  • Optional Full HD (1920 x 1080) LCD panel
  • Waterproof Wifi Solution (optional)
  • Build in camera / LED indicter / Light sensor(optional)

Additional information

Model UTC-515IT-ATB0E UTC-515JT-ATB0E

Processor System

CPU Intel® Core™ i5-1145G7E Intel® Celeron® J6412
Base Frequency 1.50/ 2.6 GHz/ Quad Core 2.0GHz/Quad core
Cache L2 Cache 1.5MB L2 Cache 1.5MB
Memory 2 x 260 pin SO-DIMM DDR4-3200 up to 64GB 1x 260 pin SO-DIMM DDR4-3200 up to 32GB
HDD 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)
I/O ports
  • 2 x RS-232 COM (RS-422/485)*
  • 2 x USB 2.0/ 1 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • (M12 waterproof connector)
  • 2 x RS-232 COM (RS-422/485)*
  • 2 x USB 2.0/ 1 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • (M12 waterproof connector)
Bus expansion
  • 1 x M.2 E-Key 2230(PCIe x 1, USB2.0, I2C)
  • 1 x M.2 B-Key 3042 (USB2.0) w/ Nano-SIM
  • 1 x M.2 M-Key 2280 (PCIe x4 Gen.4 for PCIe SSD), optional SATA
  • 1 x E-Key for wireless module (Type: 2230) optional B-Key for LTE module
  • 1 x M-Key support SATA M.2 2242 module

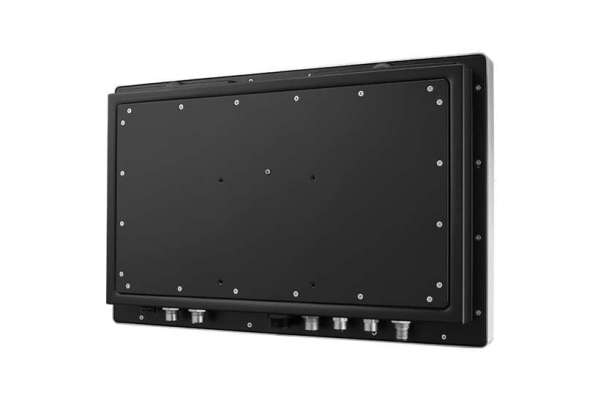

Mounting VESA 100 x 100 mm VESA 100 x 100 mm

Dimensions

(W x H x D)

415.63 x 264.94 x 58.8 mm 415.63 x 264.94 x 58.8 mm
Weight 6kg 6kg

Operating System

Win 10 IoT Enterprise Linux Ubuntu 20.04 Win 10 IoT Enterprise Linux Ubuntu 20.04

Environmental Specifications

Operating Temperature -10 ~ 50 °C -10 ~ 50 °C
Relative Humidity 10 ~ 95% @ 40° C non-condensing 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G 0.5G
Shock 5G peak acceleration (11 msec. duration) 5G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC, UL, CB, CCC CE, FCC, UL, CB, CCC
System Protection IP66/69K full system IP66/69K full system

Power Supply

Input Rating DC input 24V / 5A DC input 24V / 5A
Power consumption
  • Typical 40W
  • Max. 50W
  • Typical 40W
  • Max. 50W

LCD Display

Size/Type 15.6" TFT LCD with LED backlight 15.6" TFT LCD with LED backlight
Max.Resolution FHD 1920 x 1080 FHD 1920 x 1080
Max. Color 16.7M 16.7M
Pixel Pitch (um) 248.25 (H) x 248.25 (V) 248.25 (H) x 248.25 (V)
Brightness (cd/m2 ) 500 nits(1000 nits optional) 500 nits(1000 nits optional)
View Angle 178°/178° 178°/178°
Camera Optional Optional
Light Sensor w LED Indicator Optional Optional

Touch Screen Option

Type Projected Capacitive. Glass Panel (7H Hardness) Projected Capacitive. Glass Panel (7H Hardness)
Cover Glass Surface Treatment Optional (AR / AG / Vandal Proof) Optional (AR / AG / Vandal Proof)
Light Transmission 88% ± 2% 88% ± 2%
Controller USB Interface USB Interface
