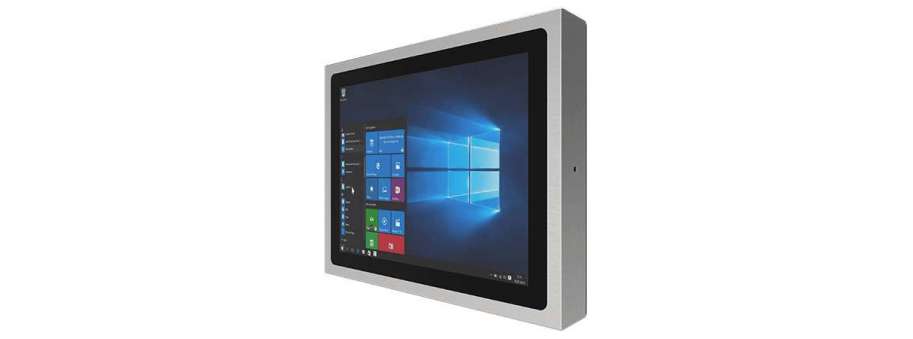

IP69K protected panel PC Intel® Celeron Bay Trail-M N2930, 1.83 GHz Winmate R15IB3S-SPC369
Designed to be tough and rugged, Flat Stainless Display Panel PC sealed to IP69K to resist ingress of high temperature and high pressure water. The P-Cap touch supports rain/ glove mode for use in different environments. Suitable for use in harsh, wet, and dusty environments.
- 15", 1024 x 768 ,P-cap touch with flat design
- Intel® Celeron Bay Trail-M N2930, 1.83 GHz
- SUS304 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure, good corrosion resistance
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plentyof I/Os, includingUSB 2.0, RS232andRJ45-10/100/1000LAN
- Waterproof ports with adapter cables for external connectivity
- Supports VESA mount
- Supports Glove/ Rain mode (Optional)
Additional information
TFT Characteristics |
|
| Resolutions | 1024 x 768 |
| Brightness | 250 cd/m2 (typ.) |
| Contrast Ratio | 700 : 1 (typ.) |
| Viewing Angles | -80~80(H);-70~70(V) |
| Max Colors | 16.2M |
| Touch screen | Projected Capacitive Multi-Touch (Default); Non-touch glass (Optional); Anti-glare coating (Optional) |
Specifications |
|
| Processor | Intel® Celeron Bay Trail-M N2930 1.83GHz |
| BIOS | AMI 16Mbit Flash |
| System Chipset | Intel ® Atom SoC Integrate |
| Memory Slot | 1 x SO-DIMM, Default 4GB, Max 8GB DDR3L 1600 |
| Storage | Default 64GB Mini PCIe SATA III |
| Graphic Chipset | Integrated HD Graphics |
| Ethernet | 2 x RJ45 Gigabit LAN (1 x RJ45 internal) |
| Audio | Built in ALC886 HD Audio Codec |
| USB | 6 x USB2.0 (4 x USB internal) |
| Serial | 4 x RS232 (3 x RS232 internal) |
| Expansion Slot | 1 x Mini PCIe (Internal) |
| SSD Interface | 1 x Mini PCIe SSD |
| Power Input | DC-IN (Lockable, Power Jack) |
| Certification | CE, FCC, RoHs |
| Security | Trusted Platform Module (TPM 1.2) |
Power Specifications |
|
| Power Input | 12V DC IN (Lockable Power Jack) |
| Power Consumption | 38W (typ.)(Max.backlight & high CPU load) |
Environment Considerations |
|
| Operating Temperature | 0 deg.C to 45deg.C |
| Operating Humidity | 30% to 90% (non condensing) |
| IP Rating | IP69K, air venting valve |
Input/ Output Connectors |
|
| Ethernet LAN | 1 X RJ45 - 10/100/1000 Mbps |
| COM | 1 x RS232 |
| USB | 2 x USB Type-A Receptacle |
| Power | 1 x 12VDC |
