EN60945 Certified industrial with 2 2.5G LAN, 4 PoE+ LAN on 13th Gen Intel® Core™ i7/i5 Processor (Raptor Lake-P) Vecow ECS-4700-PoE

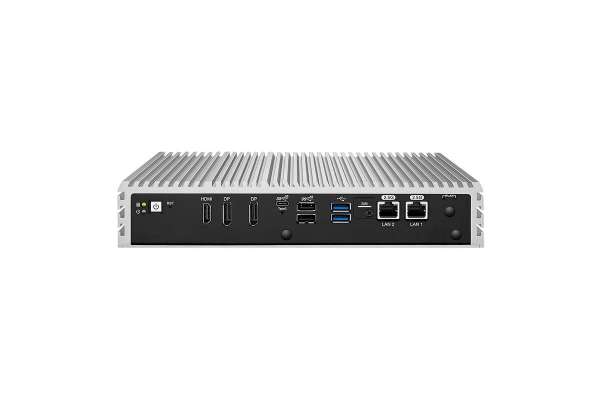

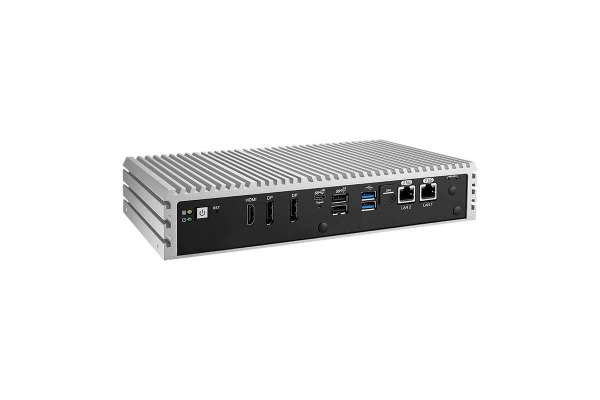

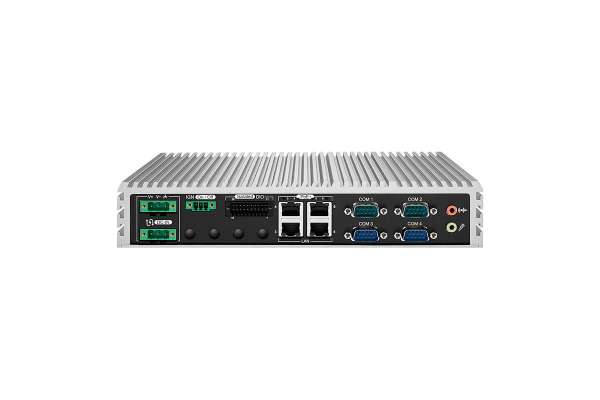

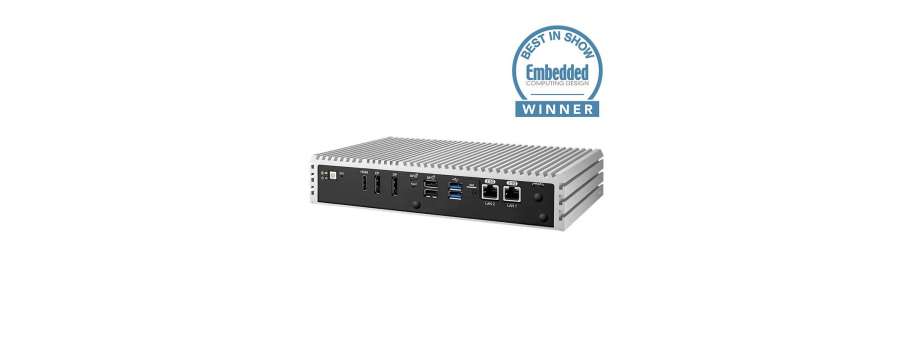

The Vecow ECS-4700 is an EN60945 Certified Marine-grade Rugged Embedded System. Powered by 13th Gen Intel® Core™ i7/i5 Processor with Intel® SoC and a 28W TDP CPU, the ECS-4700 is well-suited for AI applications in harsh environments. It features a marine-grade design, is EN60945 compliant, has isolated power protection, and includes 6 GigE LAN ports with 4 PoE+, 2 DP, and 1 USB Type-C with display function up to 4K. The ECS-4700 supports DDR5 memory up to 96GB, DC 9V to 50V Redundant Power Input, Software Ignition Control, and is fanless with an extended temperature range of -25°C to 75°C.
- Low-power 13th Gen Intel® Core™ i7/i5 Processor (Raptor Lake-P), 28W TDP GPU
- Marine-grade Designs, EN60945 EMC compliant
- Supports Intel® vPro, TSN, TCC, and TPM 2.0
- 2 2.5G LAN, 4 PoE+ LAN, Isolated PoE Protection
- 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C supports up to 20Gbps data transfer
- Compact Design, fanless -25°C to 75°C Operating Temperature
- DC 9V to 50V Redundant Power Input, Software Ignition Power Control
- Fully supports Intel OpenVINO toolkit for AI Computing
- Supports 5G/WiFi/4G/LTE/GPRS/UMTS Wireless Communication
Additional information
System |
|
| Processor |
|
| Chipset | Intel® SoC |
| GPU | Intel® Iris Xe |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR5 5200MHz SO-DIMM, up to 96GB |
| OS | Windows 11, Windows 10, Linux |
I/O Interface |
|
| Serial | 4 COM RS-232/422/485 |
| USB |
|
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| Display |
|
| LED | Power, HDD, PoE |
| SIM | 1 External Nano SIM Socket |
Expansion |
|
| M.2 |
|
Storage |
|
| SATA |
2 SATA III (6Gbps) support software RAID 0, 1
|
| M.2 | 1 M.2 Key M Socket (2280, PCIe x4) |
Audio |
|
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet |
|
| LAN 1 | Intel® I226 2.5GigE LAN supports TSN |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
PoE (ECS-4700-PoE/PoER) |
|
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| Remind : PoE power budget supports up to 25.5W/each, total 35W | |
Power |
|
| Power Input 1 | DC 9V to 50V, Redundant Power Input |
| Power Input 2 | DC 9V to 50V, Redundant Power Input |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
Others |
|
| TPM | Infineon SLB9672 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechanical |
|
| Dimensions |
ECS-4700 : 256.8mm x 141.0mm x 48.1mm (10.11" x 5.55" x 1.89") ECS-4700F : 256.8mm x 141.0mm x 54.9mm (10.11" x 5.55" x 2.16") |
| Weight |
ECS-4700 : 2.1kg (4.6lb) ECS-4700F : 2.2kg (4.8lb) |
| Mounting |
|
Environment |
|
| Operating Temperature | -25°C to 75°C (-13°F to 167°F) with air flow |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @75°C |
| Vibration | IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| EMC | CE, FCC, EN50155, EN50121-3-2, EN60945 |
