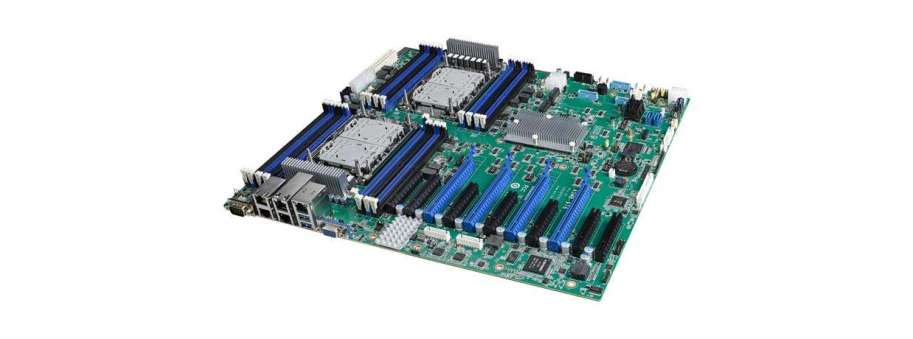

LGA 4189 Intel® Xeon® Scalable Proprietary Server Board with 16x DDR4, 4 x PCIe x16, 10 x SATA3, 8 x USB 3.2 (Gen 1), Dual 10GbE, and IPMI Advantech ASMB-976
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ASMB-976-00A1 | Промислова серверна материнська плата Advantech ASMB LGA4189 EEATX SMB w/2 SAS/4 PCIe x16/2 | 94 572,0 | |
| ASMB-976T2-00A1 | Промислова серверна материнська плата Advantech ASMB LGA4189 EEATX SMB w/2 SAS/4 PCIe x16/2 10GbE/I | 107 909,0 |
- LGA4189 proprietary server board with 3rd Gen Intel® Xeon® scalable processor
- DDR4 3200 MHz RDIMM up to 2TB, and Intel® Optane™ support
- 4 x PCIe x16 and 7 x PCIe x8
- Intel® X550 dual 10GbE ports
- 10 x SATA3 and 2x M.2 connectors (SATA/PCIe compatible)
- 0 ~ 40 °C ambient operating temperature range
- Form Factor - Proprietary 380 x 346 mm (14.96" x 13.64")
Additional information
Processor System |
|
| Socket | Intel® LGA4189 |
| CPU type | 3rd Gen Intel® Xeon® Scalable processors(CPU cooler should be purchased separately and TDP up to 270W*) |
| Core Logic / Chipset | Intel® C621A chipset |
Memory |
|
| Total slots | 16 (1 DIMM per channel) |
| Capacity |
|
| Memory type | DDR4 ECC-REG 2666/2933/3200 MHz RDIMM/LRDIMM, support Intel® Optane™ Persistent Memory |
| Memory size | 8 GB, 16 GB, 32 GB, 64 GB, 128 GB (LRDIMM) |
Expansion Slots |
|
| Total PCIe slots | 11 |
| Slot location 1 | PCIe x8 slot (x8 link), signal from CPU0 |
| Slot location 2 | PCIe x8 slot (x8 link), signal from CPU1 |
| Slot location 3 | PCIe x16 slot (x16 link), signal from CPU0 |
| Slot location 4 | PCIe x8 slot (x8 link), signal from CPU1 |
| Slot location 5 | PCIe x16 slot (x16 link), signal from CPU0 |
| Slot location 6 | PCIe x8 slot (x8 link), signal from CPU0 |
| Slot location 7 | PCIe x16 slot (x16 link), signal from CPU1 |
| Slot location 8 | PCIe x8 slot (x8 link), signal from CPU0 |
| Slot location 9 | PCIe x16 slot (x16 link), signal from CPU1 |
| Slot location 10 | PCIe x8 slot (x8 link), signal from CPU1 |
| Slot location 11 | PCIe x8 slot (x8 link), signal from CPU1 |
Graphics/VGA |
Aspeed AST 2500 |
Storage |
|
| SATA controller | Intel® C621A: 10 x SATA 3 (600 MB/s). 8 x SATA 3 support software RAID 0,1,5,10, 2 x SATA 3 support software RAID 0,1 |
| SAS controller | - |
Networking |
|
| GbE/10GbE LAN | 2 x Intel® I210AT / Intel® X550-AT2 (dual 10GbE ports) |
Onboard I/O |
|
| PSU connector | 24-pin SSI power connector + 6 x 8-pin SSI 12 V power connector |
| USB connector | 6 x USB 3.2 Gen 1 ports (three onboard headers) + 1 x Type-A USB 3.2 Gen 1 port + 1 x Type-A USB 2.0 port |
| Fan header | 9 x 4-pin (2 for CPU + 7 for system) |
| M.2 | 1 x M.2 2280 B+M key (SATA and PCIe) + 1 x M.2 2280 B+M key (PCIe) |
| SMBus | 1 |
| Chassis intruder | 1 |
| Front LAN LED | 1 |
| Audio Header | 1 |
| PS/2 Keyboard/Mouse header | 1 |
| Serial port header | |
Rear I/O Connector |
|
| External serial port | 1 |
| External USB port | 2 (USB 3.2 Gen. 1) |
| VGA port | 1 |
| RJ-45 | 5 (1 port dedicated for IPMI function) |
| PS/2 KB/mouse | - |
| Infiniband | - |
Management Solution |
|
| Software | - |
| Out of band remote management | Yes |
Monitoring |
|
| CPU temperature | Yes |
| System monitoring | Yes |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec/min |
Power Requirements |
|
| Power On | 3.3V 5V 12V 5Vsb -12V 8P_CPU0 8P_CPU1 |
| (220W CPU@2.6GHz DDR4 2666 32G*16) | 1.91A 2.94A 3.98A 0.28A 0.01A 22.79A 22.84A |
Environment |
|
| Temperature Operating | 0 ~ 40 °C (32 ~ 104 °F), depends on CPU speed and cooler solution |
| Temperature Non-operating | -40 ~ 85 °C (-40 ~ 185 °F) |
| Humidity Operating | 10% ~ 95% |
| Humidity Non-operating | 10% ~ 95% (Non condensing) |
Physical Characteristics |
|
| Dimensions (L x H) | 380 x 346 mm (14.96" x 13.64") |
