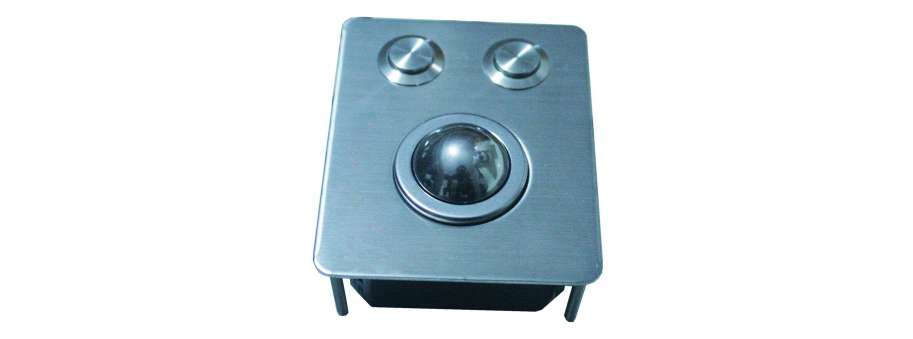

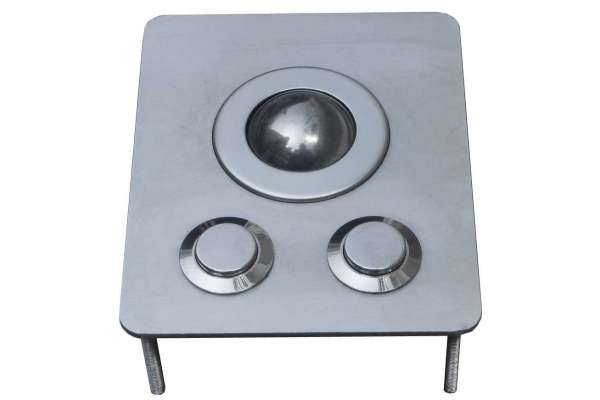

Stainless steel trackball X-Key X-BP21F-R

25mm(1.0’) or 38.0mm (1.5') vandal proof IP65 stainless steel LASER trackball with high resolution, two mouse keys X-Key X-BP21F-R

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
X-BP21F-R	Промисловий лазерний трекбол X-BP21F-R, шар 25мм, захищений від вандалізму, IP65 з нержавіючої сталі, з високою роздільною здатністю, двома клавішами миші та можливістю монтажу на панелі. 67.0mm x 82.0mm (front panel)	5 924,2
X-BP22F-R	Промисловий лазерний трекбол X-BP22F-R, шар 25мм, захищений від вандалізму, IP65 з нержавіючої сталі, з високою роздільною здатністю, двома клавішами миші та можливістю монтажу на панелі. 67.0mm x 82.0mm (front panel)	5 924,2	Доступно

• 25mm trackball with 2 mouse keys.
• 2. Suitable for moist and dusty environments.
• 3, Ideal for use in environments ranging from manufacturing to material handling to medical settings.
• 4, IP65 from front panel
• Product description: 25mm(1.0) or 38.0mm (1.5') vandal proof IP65 stainless steel mechanical or laser trackball with high resolution, two mouse keys, with front panel mounting solution.

Additional information

Mechanical
Key	2 keys, quality brushed stainless steel, two round stainless steel sealed switches
Front Plate	Quality brushed stainless steel
Key Travel	1.3.0mm
Ball diameter	25mm(1.0’)
Key switch lifespan	more than 10 Mio actuations
Track ball lifespan	> 10 Mio revolutions
Actuation Force	4 N
Dimension	67.0mm x 82.0mm
Interface	PS2, USB are available, Y type cable with ports of PS2 and USB
Electrical
Power supply	5V DC+ 10%, keyboard interface
Protection level	IP65 (front panel), NEMA3
EMC Standard	EN55022(B)
Power consuming	≤1.0W(dynamic) ≤0.2W(static)
Contact Material	Gold/Carbon
Environmental
Operating temperature	-20°C-+ 60°C
Storage temperature	- 30°C-+ 70°C
Operating RH	30-90%
Atmospheric pressure	60-106Kpa.
Reliable
Certificates	RoHS compliant, CE and FCC certified. IP65 front panel.
MTBF	>50000h
MTTR	< 30min
OS	OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7/8/10, Linux, Unix, Mac OS9 / OSX
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton
