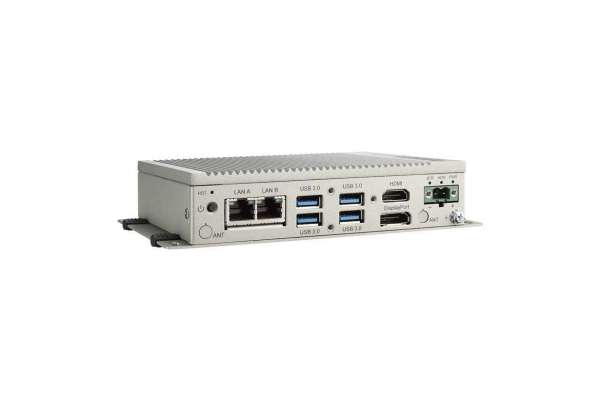

Standmount Embedded Box PC UNO-2372G V2

Compact Modular Box Platform Advantech with Intel® Celeron® Processor, 2 x GbE, 4 x USB 3.0, 4 x COM, 2 x mPCIe, 1 x HDMI 1.4b, 1 x DP 1.2 UNO-2372G V2

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Advantech’s UNO-2000 series of embedded automation computers are highly ruggedized, fanless systems. The modular design offers numerous performance and cost-saving advantages, including eliminating unnecessary features and expenses, accelerated production and delivery, rapid deployment and integration, reduced system downtime and maintenance costs, and support for future upgrades and expansion. The UNO-2372G features optimized I/O and can be equipped with an optional second expansion stack that supports Advantech’s iDoor technology. With the integration of various iDoor modules, including industrial fieldbus, wireless communication, I/O, and peripheral modules, the system functionalities can be easily extended to provide purpose-built, future-proof solutions that satisfy specific application requirements.

  • Intel® Celeron® J3455 quad-core processor with 4G DDR3L memory
  • Compact, robust, fanless and cable-free system with high stability
  • 2 x GbE, 4 x USB 3.0, 4 x RS-232/422/485, 1 x HDMI 1.4b, 1 x DP 1.2
  • Modular design with optional second stack for increased functionality
  • Stand mount with rubber stopper
  • Optional kit for DIN-rail and VESA mounting
  • Optional Wi-Fi/Bluetooth/cellular connectivity
  • Built-in TPM2.0 for hardware-based security

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-2372G-J121AE Компактний промисловий комп'ютер Advantech UNO-2372G Single stack, J3455,4G RAM,2LAN,4COM,2mPCIe  23 854,6
UNO-2372G-J121AO Компактний промисловий комп'ютер Advantech UNO-2372G-J121AE w/o audio function  23 854,6
UNO-2372G-J121AU Компактний промисловий комп'ютер Advantech UNO-2372G Single stack, J3455,4G RAM,2LAN,4COM,2mPCIe  24 500,9
UNO-2372G-J121AOU Компактний промисловий комп'ютер Advantech UNO-2372G-J121AU w/o audio function  24 500,9
UNO-2372G-J122AE Компактний промисловий комп'ютер Advantech UNO-2372G Double stack, J3455,4G RAM,2LAN,4COM,2iDoor  25 147,1

Additional information

General


Certification CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H)
  • Single-stack model: 150 x 105 x 35 mm

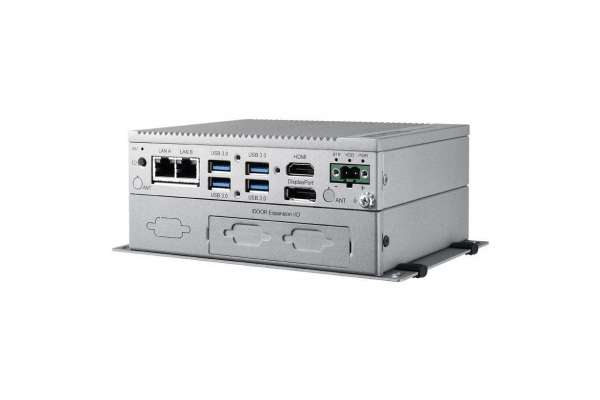

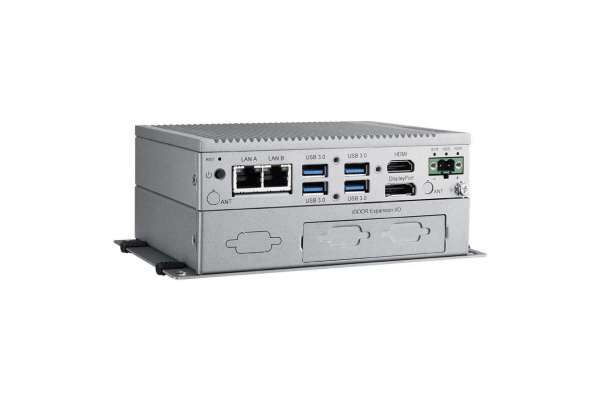

  • Double-stack model: 150 x 105 x 65 mm
Form Factor Small
Enclosure Aluminum housing
Mount Options Stand, wall, VESA (optional), DIN rail (optional)
Weight (Net)
  • Single-stack model: 0.8 kg (1.8 lb)
  • Double-stack model: 1.0 kg (2.2 lb)
Power Requirement 10 ~ 36 VDC
Power Consumption  18.36W (typical)
OS Support Microsoft® Windows 10, Advantech Linux (Ubuntu 18.04)

Hardware


BIOS AMI UEFI (64 Mbit)
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
Hardware Security TPM2.0
Processor Intel® Celeron® J3455 quad-core, 1.5 GHz (max. turbo 2.3 GHz)
Memory Built-in 4 GB DDR3L, 1866 MHz (supports up to 8 GB)
Graphics Engine Intel® HD Graphics 500
Ethernet Intel® i210 GbE, 802.3Qav, 802.1AS, 802.3az
LED Indicators Power, RTC battery, LAN (active, status), and HDD
Storage
  • 1 x mSATA shared with mPCIe socket
  • 1 x 2.5" SATA HDD drive bay (max. height 9.5 mm)
Expansion 2 x Full-size mPCIe sockets

I/O

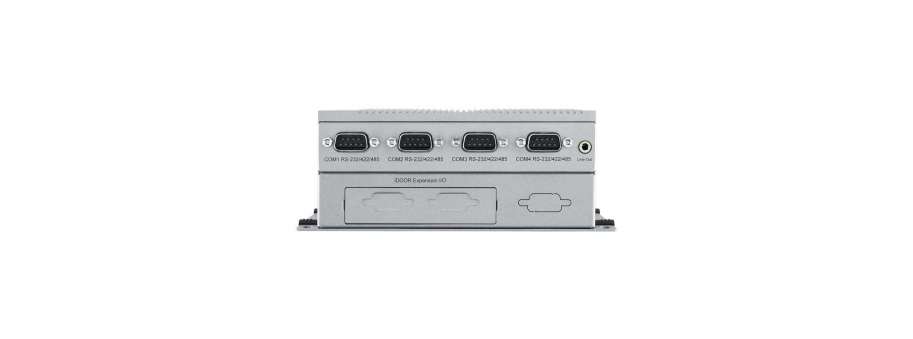

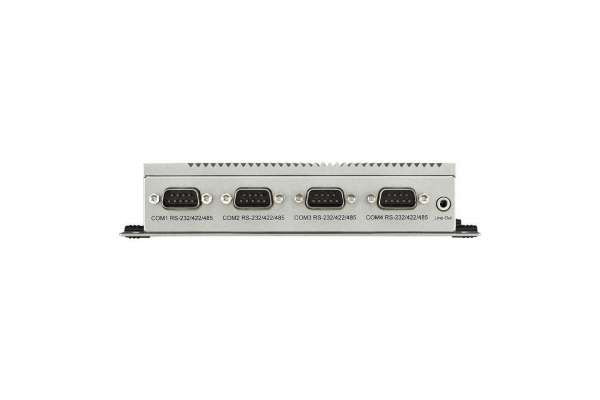

Serial Ports 4 x RS-232/422/485, DB9, 50 ~ 115.2kbps
LAN 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
USB 4 x USB 3.0
Displays
  • 1 x HDMI 1.4b (3840 x 2160 @30 Hz)
  • 1 x DP 1.2 (3840 x 2160 @60 Hz)
Power Connector 1 x 2-pin terminal block
* Audio Line-out (optional)

Environment


Operating Temperature -20 ~ 60 °C/-4 ~ 140 °F @ 5 ~ 85% RH with 0.7m/s airflow
Storage Temperature - 40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity 10 ~ 95% RH @ 40 °C/104 °F, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection
  • Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
  • Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
Ingress Protection IP40
