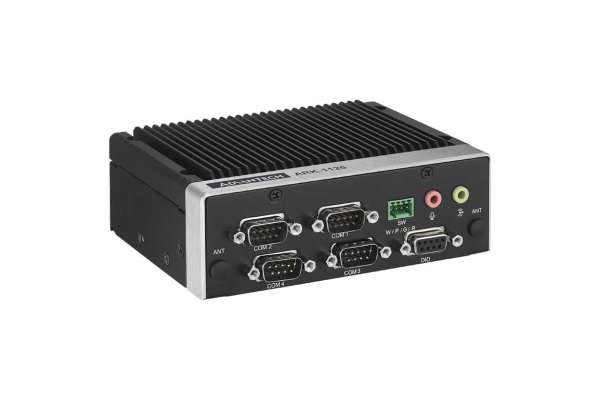

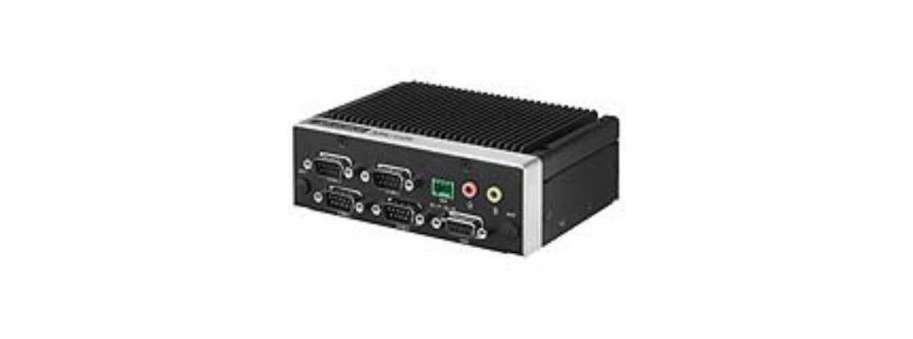

Intel® Atom® Processor x7211E DC SoC with Four Serial Ports Palm Size Fanless Box PC Advantech ARK-1125C
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-1125C-S0A1 | Intel Atom x7211E w/ COM x4 USB x4 HDMI LAN x1 | 30 568,7 | |
| ARK-1125C-S0A1U | Intel Atom x7211E w/ COM x4 USB x4 HDMI LAN x1 M | 34 889,7 |
- Intel® Atom® Processor x7211E Dual Core SoC
- DDR5-4800 SO-DIMM memory support up 16G

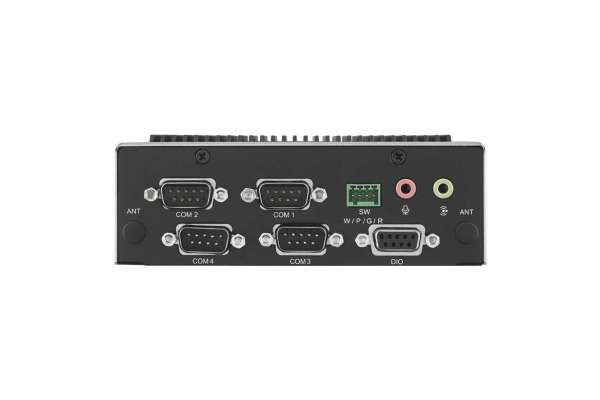

- Four Serial Ports
- M.2 E Key, B Key and M Key for storage and wireless module installation
- TPM on board for system security
- -30 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
- Advantech DeviceOn support
Additional information
Processor System |
|
| CPU | Intel® Atom® Processor x7211E |
| Frequency | 1.0GHz |
| Core Number | 2 |
| BIOS | AMI EFI 256 Mbit |
Memory |
|
| Technology | DDR5 4800 MHz |
| Max capacity | 16G |
| Socket | 1x 262-pin SO-DIMM |
Graphic |
|
| Chipset | Intel® UHD Graphics |
| HDMI | 4096 x 2160@60Hz |
Ethernet |
|
| LAN1 | Intel i226-LM, 2.5GbE, support Wake On LAN |
Audio |
|
| Interface | Realtek ALC888S, High Definition Audio, Mic-in and Line-out |
I/O Interface |
|
| Serial Ports | 4x RS232/422/485 (default RS-232) with auto flow control |

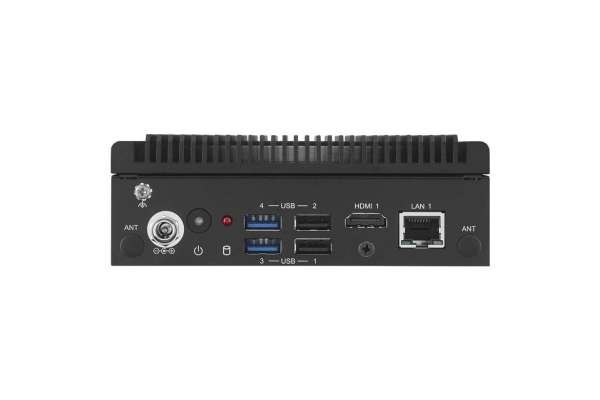

| USB Ports | 2x USB3.2, 2x USB2.0 |
| GPIO | 8-bit Programmable DIO |
Expansion |
|
| M.2 | 3x, 1x M.2 2230 E key (PCIe x1), 1x M.2 2280 B key with nano SIM holder (PCIe x1), 1x M.2 2242 M key (SATA, PCIe x1) |
| TPM | SLB9672XU2.0 FW15.22 |
Storage |
|
| NVMe | 3x, 1x M.2 2242 M key (PCIe x1, SATA shared with NVMe), 1x M.2 2230 E key (PCIe x1) and 1x M.2 2280 B key (PCIe x1) |
Software Support |
|
| Microsoft Windows | Windows 10 Enterprise |
| Linux | Ubuntu |
Power Requirement |
|
| Power Type | AT/ATX |
| Power Input Voltage | 12VDC |
| Minimum Power Input | 12V, 5A |
| Power Adapter | AC to DC, DC12 V/5 A, 60 W with lockable DC Jack |
Power Consumption |
|
| Typical (OS idle mode) | 10.05 W |
| Max (Full loading) | 19.72 W |
Mechanical |
|
| Construction | Aluminum housing |
| Mounting | DIN-Rail/Wall/VESA Mounting Kits |
| Dimensions (W x H x D) | 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") without wall mount kit |
| Weight | 0.7 kgs |
Environment |
|
| Operating Temperature | With extended temperature peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185°F) |
| Relative Humidity | 95% @ 40 °C (non-condensing) |
| Vibration during Operation | 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount) |
| Shock during Operation | 30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount) |
Certification |
|
| EMC | CE/FCC Class B, CCC, BSMI, UKCA |
| Safety | CB, UL, CCC, BSMI, UKCA |
