Processor System
|
UTC-515A |
UTC-515B |
UTC-515C |
| CPU |
AMD® G-Series T40E Dual-core 1.0 GHZ (UTC-515A) |
Intel Atom Dual Core D2550 1.8 GHz (UTC-515B) |
Intel i3 3217UE 1.6 GHz Intel i7 3517UE 1.7 GHz (Available*) (UTC-515C) |
| Chipset |
T40E + A50M |
Intel Atom D2550 + Intel NM10 |
Intel QM77 |
| L2 Cache |
512 KB |
1 MB |
1 MB (L3, 3 MB) |
| Memory |
1 x SO-DIMM DDR3 1066 MHz up to 4 GB |
1 x SO-DIMM DDR3 1066 MHz up to 4 GB |
1 x SO-DIMM DDR3/DDR3L 1333/1600 MHz up to 8 GB |
| SSD |
Support 1 x CFast |
Support 1 x CFast |
|
| HDD |
1 x 2.5 internal SATA HDD bay |
1 x 2.5 internal SATA HDD bay |
1 x 2.5 internal SATA HDD bay |
| Network (LAN) |
2 x Gigabit Ethernet ports (Supports Wake on LAN) |
2 x Gigabit Ethernet ports (Supports Wake on LAN) |
2 x Gigabit Ethernet ports (Supports Wake on LAN) |

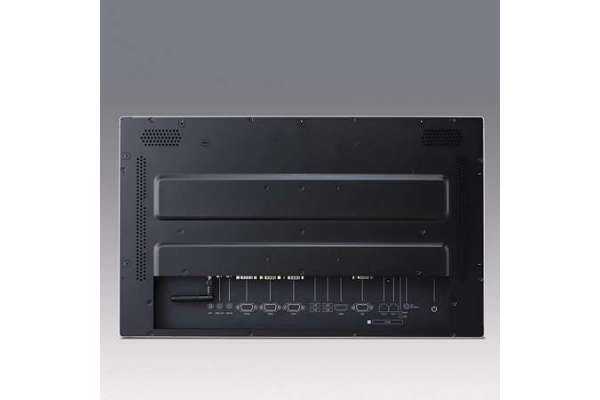

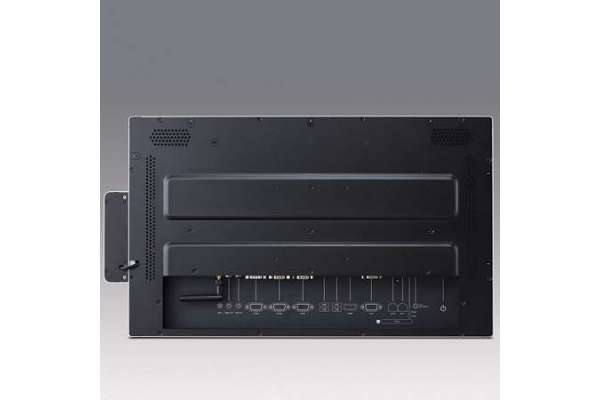

| I/O Ports |
3 x RS-232 COM (RS-422/485)* 4 x USB 2.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA & HDMI Audio Line-out x 1, Mic-in x 1 |
3 x RS-232 COM (RS-422/485)* 4 x USB 2.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA & HDMI Audio Line-out x 1, Mic-in x 1 |
2 x RS-232 COM (RS-422/485)* 2 x USB 2.0, 2 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA & HDMI Audio Line-out x 1, Mic-in x 1 |
| Stereo Speaker |
1 W x 2 |
1 W x 2 |
1 W x 2 |
| Bus expansion |
Full-size MiniPCIe/mSATA |
Full-size MiniPCIe/mSATA |
Full-size MiniPCIe/mSATA |
| Mounting |
VESA 100 x 100 mm |
VESA 100 x 100 mm |
VESA 100 x 100 mm |
| Dimensions (W x H x D) |
389.81 x 240.12 x 45.20 (mm) |
389.81 x 240.12 x 45.20 (mm) |
389.81 x 240.12 x 45.20 (mm) |
| Weight |
4.85 kg (10.67 Ib) |
4.85 kg (10.67 Ib) |
4.85 kg (10.67 Ib) |
OS Support
|
Windows XP/ XPE/ Embedded Windows 7/Embedded Windows 8 |
Embedded Windows 7 32bit |
Embedded Windows 7 /Embedded Windows 8/ Window 10 IoT Enterprise |
Environmental Specifications
|
|
|
|
| Operating Temperature |
0 ~ 40° C (32 ~ 104° F) |
0 ~ 40° C (32 ~ 104° F) |
0 ~ 40° C (32 ~ 104° F) |
| Relative Humidity |
10 ~ 95% @ 40° C non-condensing |
10 ~ 95% @ 40° C non-condensing |
10 ~ 95% @ 40° C non-condensing |
| Vibration |
0.5G |
0.5G |
0.5G |
| Shock |
5 G peak acceleration (11 msec. duration) |
5 G peak acceleration (11 msec. duration) |
5 G peak acceleration (11 msec. duration) |
| EMC/ Safety |
CE, FCC, UL, CCC CB,BSMI |
CE, FCC, UL, CCC CB,BSMI |
CE, FCC, UL, CCC CB,BSMI |
| Front Panel Protection |
IP65/ NEMA4 Compliant |
IP65/ NEMA4 Compliant |
IP65/ NEMA4 Compliant |
Power Supply
|
|
|
|
| Input Rating |
12 V/5 A (60 W ITE Adapter) |
12 V/5 A (60 W ITE Adapter) |
12 V/5 A (60 W ITE Adapter) |
| Power consumption |
Typical 32W Max. 40W |
Typical 32W Max. 40W |
Typical 40W Max. 50W |
LCD Display
|
|
|
|
| Size/Type |
15.6" TFT LCD with LED backlight |
15.6" TFT LCD with LED backlight |
15.6" TFT LCD with LED backlight |
| Max.Resolution |
1366 x 768 (FHD 1920 x 1080 Optional) |
1366 x 768 (FHD 1920 x 1080 Optional) |
1366 x 768 (FHD 1920 x 1080 Optional) |
| Max. Color |
16.7M |
16.7M |
16.7M |
| Pixel Pitch (um) |
252 x 252 |
252 x 252 |
252 x 252 |
| Brightness (cd/m2 ) |
400 |
400 |
400 |
| View Angle |
170°/160° |
170°/160° |
170°/160° |
Touch Screen Option (PE/RE/GE)
|
|
|
|
| Type |
Projected Capacitive. Analog Resistive 5-wires / Glass Panel |
Projected Capacitive. Analog Resistive 5-wires / Glass Panel |
Projected Capacitive. Analog Resistive 5-wires / Glass Panel |
| Light Transmission |
90% ± 2% / 80% ± 5% / 90% |
90% ± 2% / 80% ± 5% / 90% |
90% ± 2% / 80% ± 5% / 90% |
| Controller |
USB Interface / USB Interface / - |
USB Interface / USB Interface / - |
USB Interface / USB Interface / - |
